2022 Best Budget Fiber Laser Engraver with XY Axis Moving Table for Sale

Model: STJ-60FM
Views: 4003
Brand:STYLECNC
Rating:
 4.8 /5 Based On 32 Votes
Sale Price: $6600.00 / Set
Price Range: $6600.00 to $8200.00 / Set Based On The Features
Supply Ability: 100 Sets / Month In stock!
Payment Terms: T/T, Credit Cards, e-Checking, Alibaba Trade Assurance
WhatsApp

Product Introduction

Customer Reviews & Testimonials

2022 best budget fiber laser engraving machine with XY axis moving table is used to DIY, custom, personalize, repair or refurbish iPad, iPhone, and mobile business, you can engrave numbers, letters, signs, logos, names, patterns, or IMEI on the shell, case, accessories, or parts of iPhone, iPad, and more mobiles and pads.

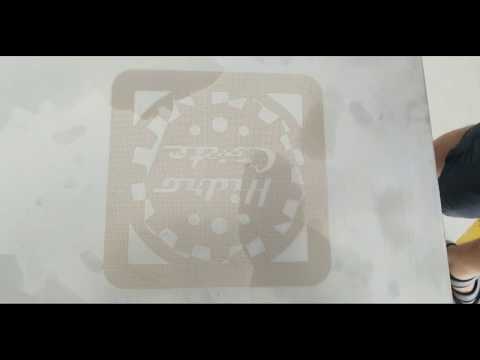

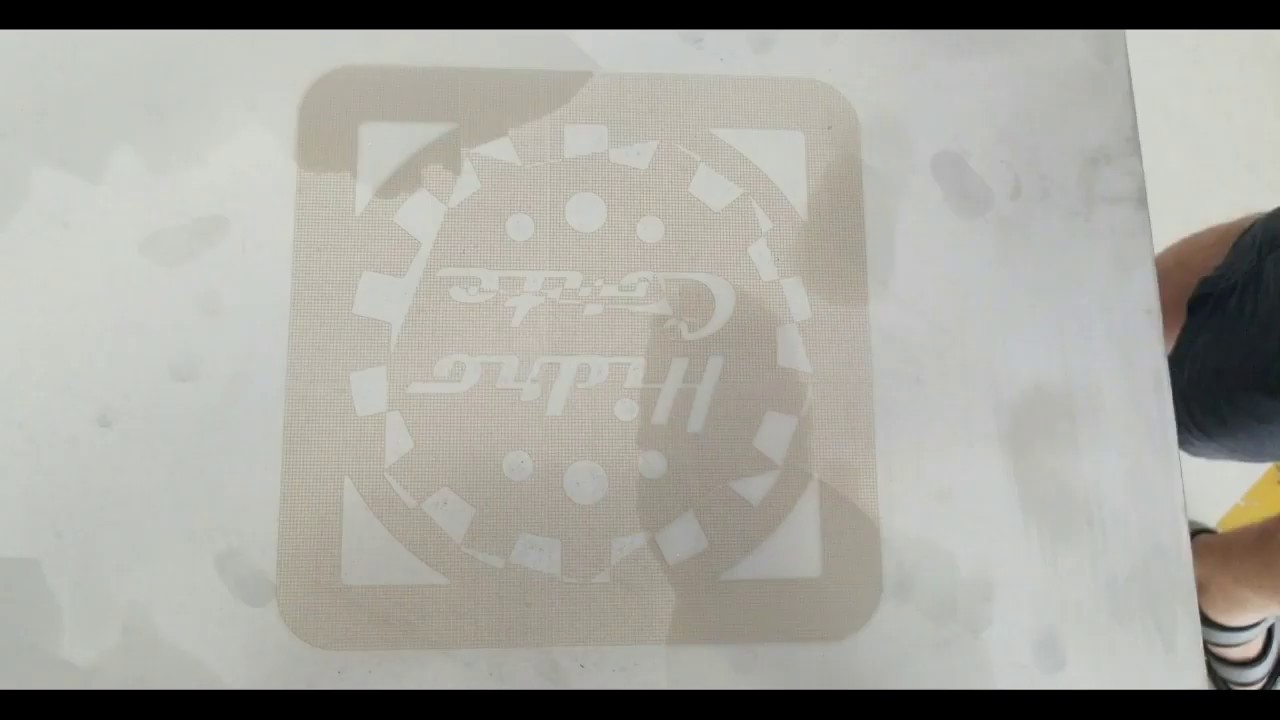

Demonstration Video

2022 Best Budget Fiber Laser Engraver with XY Moving Table

Product Details

Best Budget Fiber Laser Engraving Machine with XY Axis Moving Table


2022 best budget fiber laser engraving machine is controlled by a computer, and the laser marking software inputs the marking content. At the same time, the laser beam with higher energy density is used to irradiate the surface of the processed material. The surface of the material absorbs the laser energy and generates a thermal excitation process in the irradiated area, so that the temperature of the material surface (or coating) rises, causing melting, ablation, evaporation and other phenomena, thereby forming a permanent mark with a certain depth on the surface of your projects.


Compared to the traditional engraving technology, the best budget fiber laser engraver not only has less material loss, but also has better engraving effect. If you want get more beautiful effect and more efficient engraving, you should choose different types of lasers for comparison, so as to find the suitable laser engraving solutions for fine engraving plans.


Technical Parameters of 2022 Best Budget Fiber Laser Engraving Machine with XY Axis Moving Table


Model

STJ-60FM

Output Power

60W

Laser Wavelength

1064nm

Fiber Cable Length

3m

Pulse Width

2-500ns

Repetition Frequency Range

1-4000kHz

M2

<1.5

Max.Single Pulse Energy

1.5mJ

Output Power Stability

<5%

Output Beam Diameter

7±0.5mm

Power Range

0%-100%

Anti-Reflection Protection

Yes

Marking Range

110*110mm to 600*400mm

Minimum Line Width

0.01mm

Minimum Character

0.1mm

Marking Speed

≤7000mm/s

Marking Depth

Depend on materials

Repeatability Accuracy

±0.001mm

Marking Format

Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc.

Graphic format supported

Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif

Working Voltage

220V±10%/50Hz or 110V±10%/60Hz or customized

Unit Power

<0.5kw

Working Environment

Clean and dust free or dust less

Working Condition Humidity

5%-75%, 0-40 degree, free of condensed water

Laser lifetime

>100000 hours

Net weight

65 kgs

Packing Size

770*480*780mm

Camera systemOptional
Auto Focus SystemOptional
Moving XY tableOptional


Advantages of 2022 Best Budget Fiber Laser Engraver with XY Axis Moving Table


The traditional marking area of laser machine is maximum 300*300mm, the best budget fiber laser marking machine adopts XY axis moving table to enlarge the working area to be 400*400mm, 500*500mm, 400*600mm, and more table sizes.


1. Long service time: The laser engraving machine has very long lifetime, over 100,000 hours.

2. High Precision: Re-position precision is 0.002mm.

3. Easily Operating: The laser engraving machine can correct engraving each time with galvanometer scanners and electronic controls.

4. Energy Saving: The efficiency of optic-electrical converting is up to 30%.

5. 2 to 5 times faster than the traditional engraving machine.

6. Professional: BJJCZ control board and EZCAD marking software.

7. Free maintaining: Run without consumable spare parts, no need maintenance, great for continuous working.


Applications of 2022 Best Budget Fiber Laser Engraving Machine with XY Axis Moving Table


The best budget fiber laser engraver can be used for etching & engraving phone cases of TPU, plastic, silicone, carbon fiber, leather and synthetic, wood and metals (aluminum, stainless steel, titanium, gold, silver),

The best budget laser engraving machine is main applied in electronic and communication products, IC products, electric lines, cable computer components and electric appliance.

Recently, some big mobile phone and pad manufacturers, such as Apple, Samsung, Huawei, ZTE, Lenovo and Meizu start to use the laser engraving machine for marking mobile shell, case, IMEI, trade marks, models, etc.


iPhone IMEI laser engraving projects

iPhone shell laser engraving project


The fiber laser engraver can be equipped with different laser power, such as 20W, 30W, 60W, 80W, 100W, 150W MOPA laser source or 20W, 30W, 50W, 100W normal fiber laser source for different usage and cost.


fiber laser

Spectacle frames laser engraving projects

fiber laser engraving metals


Main Parts of 2022 Best Budget Fiber Laser Engraver with XY Axis Moving Table

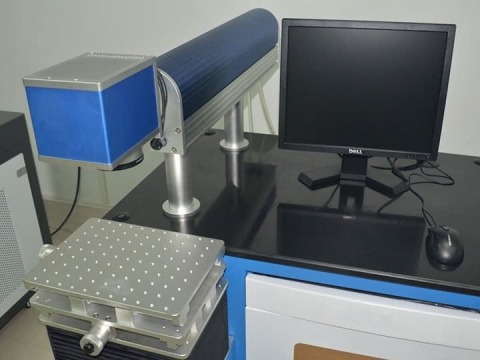

Moving Table Fiber Laser Engraving Machine

X,Y axis of laser engraving machine

laser engraving machine with XY table

MOPA fiber laser 20W

laser marking machine package


International Shipping Around the World


All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
