100W IPG Fiber Laser Metal Engraving Machine for Sale

STYLECNC»CNC Machines»Laser Marking Machine»Fiber Laser Marking Machine»

100W IPG Fiber Laser Metal Engraving Machine for Sale at Affordable Price

Model: STJ-100F
Views: 5780
Brand:STYLECNC
Rating:
 4.9 /5 Based On 56 Votes
Standard Price: $19800.00 / Set
Price Range: $19800.00 to $22000.00 / Set According to Configurations
The final price will fluctuate according to the configurations of 100W IPG Fiber Laser Metal Engraving Machine for Sale
Supply Ability: 100 Sets / Month In stock!
Payment Terms: T/T, Credit Cards, e-Checking, Alibaba Trade Assurance
WhatsApp

Product Introduction

Buyer's Reviews

The best 100W IPG fiber laser metal engraving machine is used for engraving logos, signs, letters, numbers, patterns or photos on metal surface such as steel, aluminum, copper, alloy, silver, gold. Now the cheap metal laser engraver for sale at affordable price within your budget.

Demonstration Video

100W IPG Fiber Laser Metal Engraving Machine for Sale

Product Descriptions

Laser metal engraving machine

Metal laser engraving machine

Metal Laser Engraver


What Is Laser Engraving Machine for Metal?


Laser metal engraving machine is also called metal laser engraving machine, laser metal engraver, metal laser engraver, laser engraving machine for metal, laser metal marking machine, metal laser marking machine, which is a laser engraving machine with fiber laser souce for metal engraving. The best laser metal engraving machine is equipped with 100W IPG fiber laser power, which is used to engrave signs, patterns, logos, letters, numbers or pictures on metal surface with different depths. The laser metal engraver is especially designed for metal and alloy such as Stainless Steel, Alloy Steel, Silver, Copper, Anodized Aluminum, Aluminum, Chrome, Silicon Wafer, Gold, etc. The laser metal engraver is widely used in Metal Crafts, Metal Arts, Metal Parts, Metal Gifts, Electronic Component, Hardware, Instruments and Meters, Jeweler, Food and beverage, Keyboard, Cell Phone Case, Package, etc.


Technical Parameters of Laser Metal Engraving Machine with IPG Fiber Laser Source


Brand

STYLECNC

Model

STJ-100F

Laser Type

IPG

Laser Power

100W

Laser Engraving Speed

≤10000mm/s

Laser Engraving Depth

≤1mm

Laser Wavelength

1064nm

Laser Engraving Area

110*110mm(150*150mm, 200*200mm and 300*300mm for option)

Minimum Line Width

0.01mm

Minimum Character

0.15mm

Resolution Ratio

0.01mm

Repeatability Accuracy

±0.002mm

Operating Temperature

5-40℃

Unit Power

≤500W

Graphic Format Supported

BMP, JGP, PNG, TTF, PCX, DXF, PLT, BMP, SHX

Supply Voltage

110V/60HZ or 220V/50HZ

Overall Dimension

760×500×770mm

Machine Weight

65kg/100Kg

Price Range

$19,800.00 - $22,000.00


Features of Laser Metal Engraving Machine with IPG Fiber Laser Generator


1. Good laser beam and higher photoelectric conversion, the laser engraving quality will be more finely with higher precision.

2. The laser branding machine with no maintenance (100,000 hours service time), low operation cost.

3. High quality, Permanent marks.

4. Repetitive high precise, Rapid engraving speed.

5. The best laser metal engraving machine is easy to use by unskilled operator.

6. Non-contact marking process, Eliminates material stress.

7. Multi-functional laser metal engraving software running on the WINDOWS platform, English interface, compatible with Coreldraw, AutoCAD, software such as Photoshop file, PCX, DXF, PLT, BMP, SHX, the TTF font can be used directly.

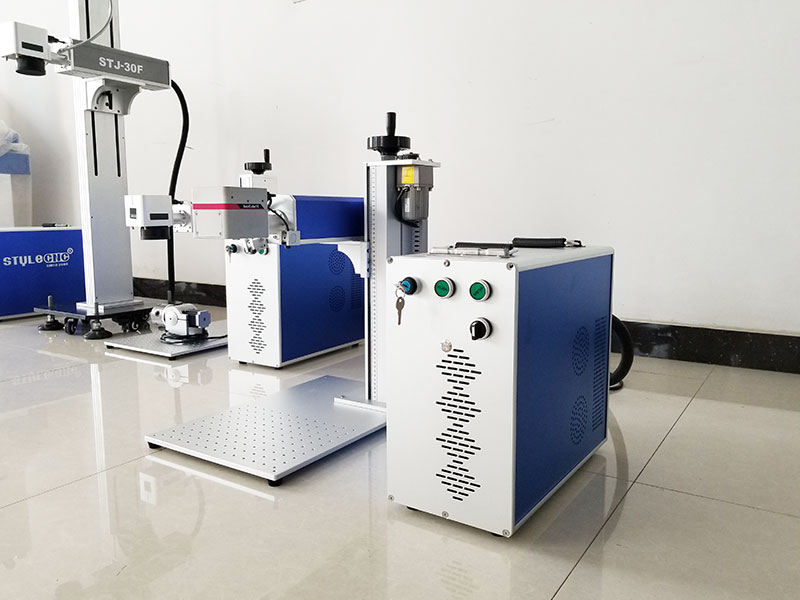

Laser metal engraving machine

Metal laser engraving machine with fiber laser source


CCD camera function oprional, it helps to display the marking details from software on computer.


fiber laser metal engraving machine

fiber laser engraving machine for metal

The basiCube 10's full 10-mm aperture

Control panel for laser metal engraving machine with fiber laser source

IPG fiber laser source

Control card for laser metal engraving machine


Applications of Metal Laser Engraving Machine with IPG Fiber Laser Source


Applicable Industries:

The IPG fiber laser metal engraving machine is widely used in Metal Arts, Metal Crafts, Metal Gifts, Metal Credit Cards, Metal Parts, Electronic Component, Instrument and meters, Hardware, Food and beverage, Jeweler, Keyboard, Package, Cell Phone Case, etc.


Applicable Materials:

The IPG fiber laser metal engraver is mainly used for metal and alloy: Aluminum, Steel, Copper, Silver, Gold, Chrome, Stainless steel, Anodized Aluminum, Silicon Wafer, etc.


IPG Fiber Laser Metal Engraving Machine Projects


Projects of laser metal engraving machine with fiber laser source

Laser metal engraving machine projects


What Is IPG Fiber Laser Generator?


IPG is the world's top manufacturer of fiber laser generators from USA, Germany, and Russia. It has become an absolute leader in fiber laser generators. The IPG product line is rich, covering high, medium and low power fiber laser generators and amplifiers. IPG fiber laser generators are low-cost, replacing traditional laser generators that are unstable or high maintenance costs. The flexible light guide system of fiber laser is very easy to integrate with robots or multi-dimensional workbenches. IPG fiber laser generator is small in size, light in weight, and movable in working position. IPG fiber laser generators perform better than traditional lasers in industrial applications. It has the best wavelength and best beam quality for laser marking. The IPG fiber laser generator has a long service life and is maintenance-free. Due to its extremely high stability, it greatly reduces the requirements for laser quality monitoring during operation.


Warranty of Laser Metal Engraving Machine with IPG Fiber Laser Source

1. 3 years warranty for laser metal engraving machine.

2. Our customer will be fully trained for the operation and maintaining technology after the order confirmed.

3. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available.


Quality Control of Metal Laser Engraving Machine with IPG Fiber Laser Generator

1. Skilled and strict quality inspection Team is available during the material purchasing and production procedure.

2. All finished machine we delivered are 100% strictly tested by our QC department and engineering department.


OEM Service for IPG Laser Metal Engraving Machine

1. Customized and OEM orders are welcome due to our aboundant experiences.

2. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors, etc.

3. No MOQ required.

4. None of your personally identifiable information ( such as your name, address, email address, bank info, etc ) will be disclosed or shared with any third parties.

5. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday, also, please feel free to call us if you have any emergency questions.


Payment Terms of IPG Fiber Laser Engraver for Metal

1. 30% T/T paid in advance as deposit, the balance paid before shipment.

2. Alibaba Trade Assurance.


FAQs for IPG Laser Metal Engraver


What’s the package of the IPG fiber laser marking machine?

We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.


Will the package damaged during transportation?

Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.


How to install and run the IPG fiber laser engraver?

Our technician have installed the IPG laser engraver for metal before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.


How can I do if the IPG fiber laser engraving machine goes wrong?

If confronted with such problems, please contact us ASAP and do not try fix the IPG fiber laser marking system by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.


We also have 50W deep laser engraving machine for metal:

deep laser engraving machine for metal


International Shipping Around the World


All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
