2.5D Fiber Laser Metal Relief Engraving Machine for Sale
Last Updated: 2024-10-18 10:40:11
2.5D fiber laser engraver is a laser metal relief engraving machine based on 2D laser marking system with EZCAD3 software to create metal relief engravings.
- Brand - STYLECNC
- Model - STJ-60FM
$6,500 - Standard Edition / $7,800 - Pro Edition
- Supplity - 320 Units in Stock Available for Sale Every Month
- Standard - Meeting CE Standards in Terms of Quality & Safety
- Warranty - One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
- 30-Day Money Back Guarantee for Your Purchase
- Global Logistics and International Shipping for You
- Free Lifetime Technical Support for End-Users & Dealers
- Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)
Fiber laser engravers are ideal for metal relief engraving due to their high accuracy and ability to produce high-resolution details on a variety of metal surfaces. Fiber lasers can produce deeper and cleaner engravings on metals such as stainless steel, titanium, aluminum, brass, and copper. They are suitable for industrial and artistic applications due to their high accuracy, high speed, and low cost of use and maintenance. If you are choosing a fiber laser metal relief engraving machine, you should consider things such as power, engraving depth and speed, and size to meet the specific needs of your business.
Technical Parameters of 2.5D Fiber Laser Engraver for Metal Relief Engraving
| Model | STJ-60FM |
| Laser Power | 60W (80W, 100W, 120W, 200W for option) |
| Laser Wavelength | 1064nm |
| Fiber Cable Length | 3m |
| Pulse Width | 2-500ns |
| Repetition Frequency Range | 1-4000kHz |
| M2 | <1.8 |
| Max.Single Pulse Energy | 1.5mJ |
| Output Power Stability | <5% |
| Output Beam Diameter | 7±0.5mm |
| Power Range | 0%-100% |
| Anti-Reflection Protection | Yes |
| Marking Range | 110*110mm/175*175mm/200*200mm/300*300mm |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.1mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | Depend on materials |
| Repeatability Accuracy | ±0.001mm |
| Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc. |
| Graphic format supported | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
| Working Voltage | 220V±10%/50Hz or 110V±10%/60Hz or customized |
| Unit Power | <0.5kw |
| Working Environment | Clean and dust free or dust less |
| Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
| Laser lifetime | >100000 hours |
| Net weight | 65 kgs |
| Packing Size | 770*480*780mm |
| Auto Focus System | Included |
| Camera system | Optional |
| Moving table | Optional for area with 400*400mm and 400*600mm |
| Rotary table | Optional |
Applications of 2.5D Fiber Laser Engraver for Metal Relief Engraving
2.5D fiber laser marking machine can work with most metal marking applications, such as logo making, serial numbers, technical specifications and other designs on metals (copper, iron, steel, stainless steel, titanium, aluminum, gold, silver, brass, alloys), and ABS.
2.5D fiber laser etching machine can finish all 2D laser works and can also make 3D relief engraving on flat plate, but it can't make 3D engraving on curved part. If the user only need to do some relief engraving, it is much economic cost than 3D laser engraving machine. It can also mark different colors on stainless steel and titanium with MOPA laser source.
Projects of 2.5D Fiber Laser Metal Relief Engraving Machine with EZCAD3 Software
Laser Engraving Colors on Stainless Steel and Titanium
2D Metal Laser Engraving Applications
3D Metal Relief Laser Engraving Applications
2.5D Fiber Laser Metal Relief Engraving Machine Features

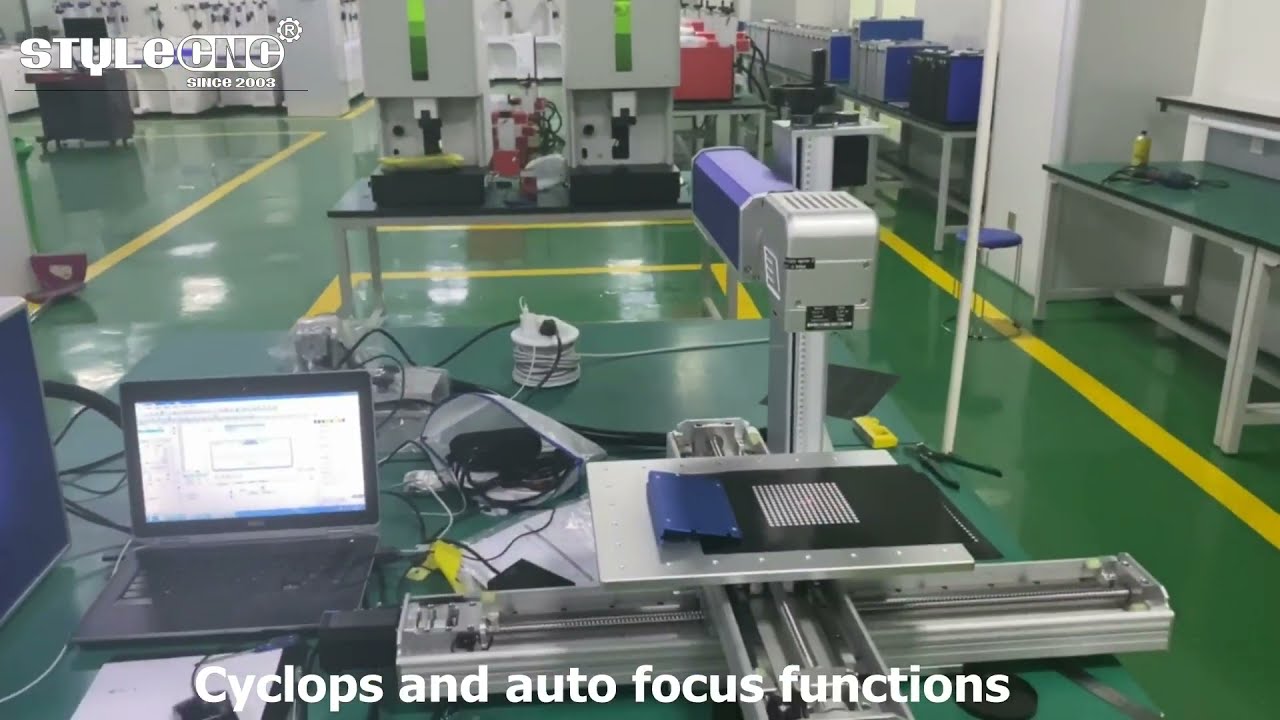

The STJ-60FM laser metal relief engraver uses short-wavelength fiber laser technology, which features high precision and accuracy, allowing it to perform complex relief engraving on a variety of metals. The STJ-60FM comes with easy-to-use EZCAD3 software and a user-friendly interface for easy operation, as well as an autofocus system for maintaining the optimal engraving distance. In addition, the EZCAD3 controller software features adjustable power settings and engraving speeds, which can be customized for different materials and depths.
Packing for 2.5D Fiber Laser Engraver for Metal Relief Engraving
Service & Support for 2.5D Fiber Laser Metal Relief Engraving Machine
1. STYLECNC technicians provide lifetime technical support for this machine via phone and email.
2. STYLECNC technicians can provide you with remote software installation, debugging and usage guidance online.
3. STYLECNC can provide operation instruction videos for this machine.
4. STYLECNC's manufacturing plant provides free training courses.
5. STYLECNC can provide overseas on-site after-sales service and support (paid).
6. The machine will be debugged to work properly before delivery and comes with an instruction manual.
7. The 2.5D laser engraving machine provides a 3-year limited warranty.
