2.5D Fiber Laser Engraver for Relief Engraving with EZCAD3 Software
Product Introduction
Customer Reviews & Testimonials2.5D fiber laser engraver is a relief laser engraving system based on 2D laser marking machine, which is equipped with motorized Z axis auto focus system and EZCAD3 software to make metal relief engraving projects.
Demonstration Video
Product Details
Technical Parameters of 2.5D Fiber Laser Engraver for Relief Engraving
Model | STJ-60FM |
Laser Power | 60W (80W, 100W, 120W, 200W for option) |
Laser Wavelength | 1064nm |
Fiber Cable Length | 3m |
Pulse Width | 2-500ns |
Repetition Frequency Range | 1-4000kHz |
M2 | <1.8 |
Max.Single Pulse Energy | 1.5mJ |
Output Power Stability | <5% |
Output Beam Diameter | 7±0.5mm |
Power Range | 0%-100% |
Anti-Reflection Protection | Yes |
Marking Range | 110*110mm/175*175mm/200*200mm/300*300mm |
Minimum Line Width | 0.01mm |
Minimum Character | 0.1mm |
Marking Speed | ≤7000mm/s |
Marking Depth | Depend on materials |
Repeatability Accuracy | ±0.001mm |
Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc. |
Graphic format supported | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
Working Voltage | 220V±10%/50Hz or 110V±10%/60Hz or customized |
Unit Power | <0.5kw |
Working Environment | Clean and dust free or dust less |
Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
Laser lifetime | >100000 hours |
Net weight | 65 kgs |
Packing Size | 770*480*780mm |
| Auto Focus System | Included |
| Camera system | Optional |
| Moving table | Optional for area with 400*400mm and 400*600mm |
| Rotary table | Optional |
Applications of 2.5D Fiber Laser Engraver for Relief Engraving
2.5D fiber laser marking machine can work with most metal marking applications, such as logo making, serial numbers, technical specifications and other designs on metals (copper, iron, steel, stainless steel, titanium, aluminum, gold, silver, brass, alloys), and ABS.
2.5D fiber laser etching machine can finish all 2D laser works and can also make 3D relief engraving on flat plate, but it can't make 3D engraving on curved part. If the user only need to do some relief engraving, it is much economic cost than 3D laser engraving machine. It can also mark different colors on stainless steel and titanium with MOPA laser source.
Projects of 2.5D Fiber Laser Engraving Machine with EZCAD3 Software
Color Laser Engraving Projects
Metal Laser Engraving Applications
3D Metal Relief Laser Engraving Applications
2.5D Fiber Laser Engraving Machine Details
Packing for 2.5D Fiber Laser Marking Machine
Service & Support for 2.5D Fiber Laser Marking Machine
1. We offer life-long technical support by calling and email.
2. Our technician can give you remote guide online if you have any question.
3. We can record videos of operating the machine.
4. Free training course in our factory.
5. Engineer available to service machinery overseas.
6. The machine will be adjusted before it is delivered, operation disk/CD was included.
7. 3 years warranty for 2.5D laser engraving machine.
International Shipping Around the World
All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
-
How to Mark Colors on Stainless Steel with Laser Engraver?
![How to Mark Colors on Stainless Steel with Laser Engraver?]()
May 20, 2022Except for marking black, white, gray, the MOPA fiber laser marking system can also etch colors (orange, yellow, red, purple, blue, green) on stainless steel, chrome, and titanium. Today, we will explore how does a fiber laser engraver mark different colors on stainless steel. -

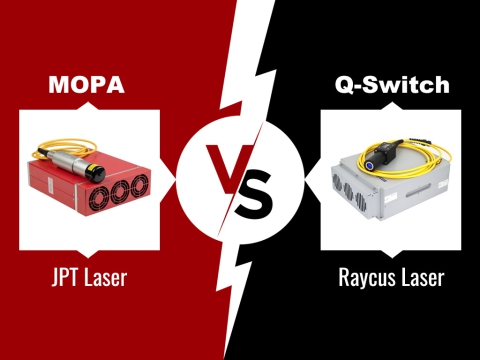

A Comparison of MOPA and Q-Switched Laser Marking Machine
![A Comparison of MOPA and Q-Switched Laser Marking Machine]()
May 24, 2022What are the similarities & differences between MOPA laser marking system and Q-switched laser marking machine? Review the comparison of the two fiber laser markers. -

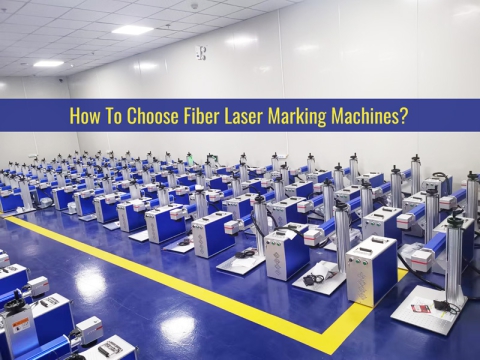

How to Choose Different Fiber Laser Marking Machines?
![How to Choose Different Fiber Laser Marking Machines?]()
Feb 28, 2023There are many types of fiber laser marking machines to satisfy different industries. We'll share with you all the different types of laser marking systems. All of them can be equipped with 20W, 30W, 50W Chinese Raycus laser source or Germany IPG laser source. In addition, MOPA laser source can mark colors on stainless steel and titanium. -

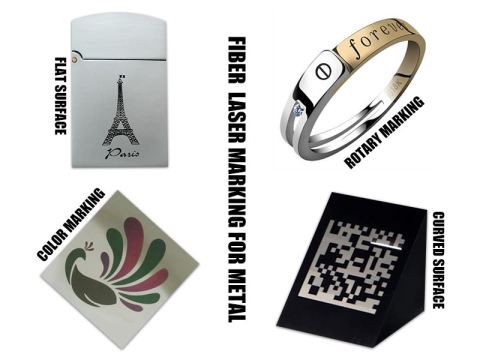

Why Buy Fiber Laser Marking Machine for Metal?
