3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Paper Cards

3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Paper Cards

Model: STJ-200C-3D
Views: 0
Brand: STYLECNC STYLECNC®
Rating: 4.3 /5 based on 3 ratings and reviews
Standard Price: $20000.00 / Set
Price Range: $20000.00 to $50000.00 / Set according to configuration
The price will float according to the configurations of 3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Paper Cards
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

3D Dynamic Focus CO2 Laser Marking/Engraving/Cutting Machinewith 200W RF laser tube is especially designed for paper cards such as holiday cards, invitation cards, christmas cards.

Demonstration Video


Product Descriptions

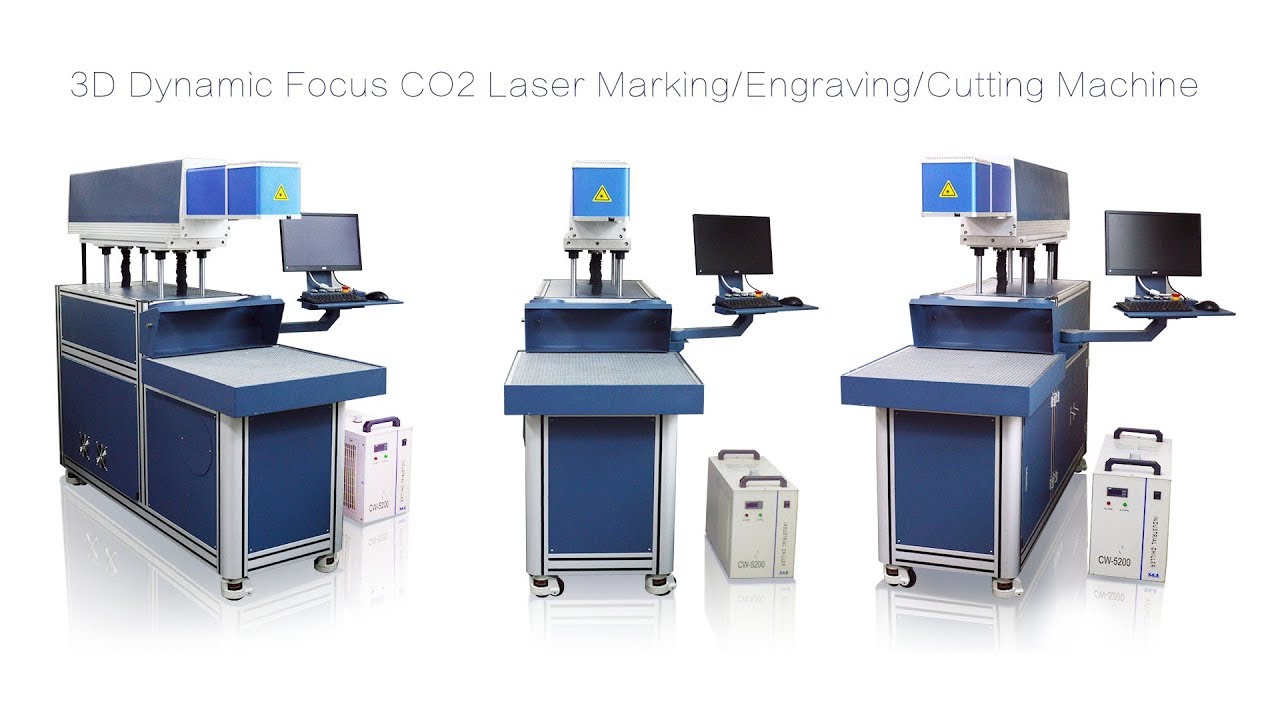

3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine

3D Dynamic Focus RF CO2 Laser Marking Machine is equipped with high power RF laser tube imported from America. The RF CO2 Laser Machine 200W with high precision, high speed and long working lifetime.


3D Dynamic Focus RF CO2 Laser Cutting Machine is Equipped with hi-tech dynamic focusing scanning mirror and control card, it is excellent in the aspects of algorithm optimization, high speed of marking and cutting, and other powerful functions. It is specially designed for the laser scanning with tiny light spot, large working range and high flexibility. Furthermore, this equipment is characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, which can ensure the stability of the system under long-hours working conditions.


3D Dynamic Focus RF CO2 Laser Engraving is used for marking in leather carving, hollow-out leather, greeting cards, and laser marking in woods, and laser firing in jeans wear and other laser marking technologies of nonmetal.


3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine Features:


1. Unique optical path design based on laser beam characteristics, low optical loss with 20% efficiency increased.

2. Rapid response with high speed THK guide rail of Z axis.

3. High stability with CTI galvanometer.

4. Original USA coherent CO2 laser tube with long working lifetime,is characterized by large power, high-quality light spot, excellent performance, stable power and long service life(20k hours).

5. Tiny beam spot , making more precision.

6. Full sealed and maintenance-free laser optic system which key components all imported from USA or UK, realizes usage at installation without adjustment.

8. The 3 axis laser scanning system features compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc.

9. The heat elimination method of the scanning motor and the drive board has been taken into full consideration during the design of the system, so as to ensure the stability of the system under long-hours working condition.

10. High-precision and high-speed marking/cutting, efficiency is 20% higher than other similar models.

11. This equipment can run more stably and with even longer service life by utilizing water cooling on both the RF laser and extender lens.

12. USB interface bus has been adopted for the control card, which supports offline operation, stepper motor with X, Y, Z and R axis (X, Y and Z axis linked.), support start-up and stopping marking by external control.

13. Rotary worktable system is optional, thus, accomplish marking on cambered surface.

14. Strong graphics drawing and editing functions enable direct marking of color graphic or marking after color convert from RGB to grey scale.

15. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.

16.  Industrial computer support Windows 7, XP or 10.

17.  Strong anti-jamming ability.


3D Dynamic Focus RF CO2 Laser Marking Machine

3D Dynamic Focus RF CO2 Laser Engraving Machine

3D Dynamic Focus RF CO2 Laser Cutting Machine

3D Dynamic Focus RF CO2 Laser Engraving Cutting Machine



Application Materials:


3D Dynamic Focus RF CO2 Laser Marking Machine is suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastics, marble, jade, crystal, cloth, etc.


Application Industries:


3D Dynamic Focus RF CO2 Laser Engraving Machine is used for arts & crafts, leather products, glasses, clothing, bamboo and wood products industry, package, advertising decoration and architectural model.


3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine Techinical Projects:


3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Christmas Cards Projects

3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Christmas Paper Cards Projects

3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Holiday Cards Projects

3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Christmas Card Project

3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Paper Card Project

3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine for Paper Card Project


3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine Techinical Parameters:


ModelSTJ-200C-3D
Max Marking Area800mmx800mm
Laser GeneratorUSA Imported RF Metal Laser Tube
Laser Power0-200W (Continuously Adjustable)
Wavelength10640nm
Min Character0.4mm
Marking Speed≤8000mm/s
Marking Depth≤5mm (Depends on materials)
Repeat Precision±0.02mm
Cooling StyleWater Cooling
Power Supply220V(±10%)/50Hz/30A
Gross Power<3.5KW
Operating Temperature10℃-45℃
WarrantyWarranty
Dimension1800mmx500mmx1600mm (Optic System)
560mm x840mm x830mm (Control System)
500mm x600mm x810mm (Cooling System)
Ross Weight300kg


Package for 3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine:


1. Main Laser Machine Unit x 1


2. CD of Operation Software x 1


3. Computer System(including monitor) x 1


4. Wood Safety Package Box x 1


Optional items for 3D Dynamic Focus RF CO2 Laser Marking/Engraving/Cutting Machine:


1. Rotary Attachment is Optional and Available.


2. Red Light Positioning Function for Co2 Laser Machine is Optional and Available.


3. Vacuum device is Optional and Available.
