CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble

CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble

Model: STS3113
Views: 4088
Brand: STYLECNC
Rating:
 4.3 /5 based on 13 ratings and reviews
Standard Price: $32800.00 / Set
Price Range: $32800.00 to $34800.00 / Set according to configuration
The price will float according to the configurations of CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

CNC stone cutting and polishing machine STS3113 is designed for cabinets artificial stone, quartz stone, granite, marble, carving, cutting, polishing, drilling, engraving. Now the affordable CNC stone machine for sale with best price.

Demonstration Video


Product Descriptions

CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble


Features of CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble:


1. CNC stone cutting and polishing machine is researched and developed by our company independently.

2. CNC stone cutting and polishing machine can do many process such as polishing for back splash ,former anomalous edge, cutting and polishing water tap hole through the automatic tools changing.

3. It’s high efficiency and low cost. For example, it just takes 30 minutes to auto-processing 2.44*0.75m quartz stone board.

4. CNC stone cutting and polishing machine can also be used for processing washing pool and European background wall.To process high-quality products,this model is a necessary equipment for the well-known brand who process counter-top.

5. The software: for UncGraphics. NX3.0, Mastercam9.0 other software, set the CAD / CAM as a whole, through digital analysis, design, the product was processed to support procedural pre / igs / scep / dxf / dwp and other documents.

6. The ATC system: vertical-type ATC system makes the whole process from the hole, cutting, shaping and polishing to a variety of milling processes go, the full realization of a high degree of automation.

7. The tool and abrasive: with a large number of imported and domestic variety of tool and abrasive and shapes, and a variety of processing requirements.

8. High-precision screw and guide: the use of screw, guide renowned German manufacturer has provided.

9. X, Y axis using the original oil-immersed lubrication. Coupled with effective waterproof, dustproof structure to ensure high precision machining and screw maximize service life of the rail.

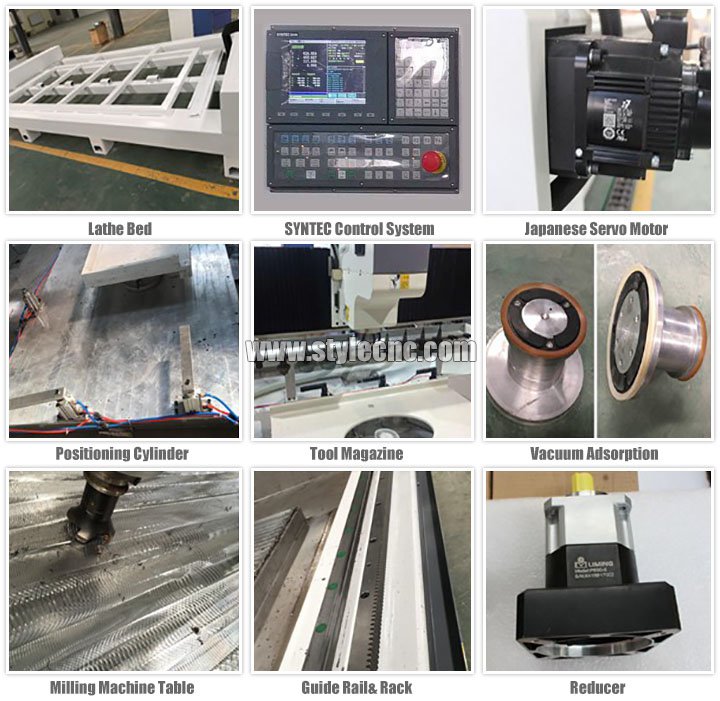

Spare parts of CNC stone cutting and polishing machine for quartz, granite, marble

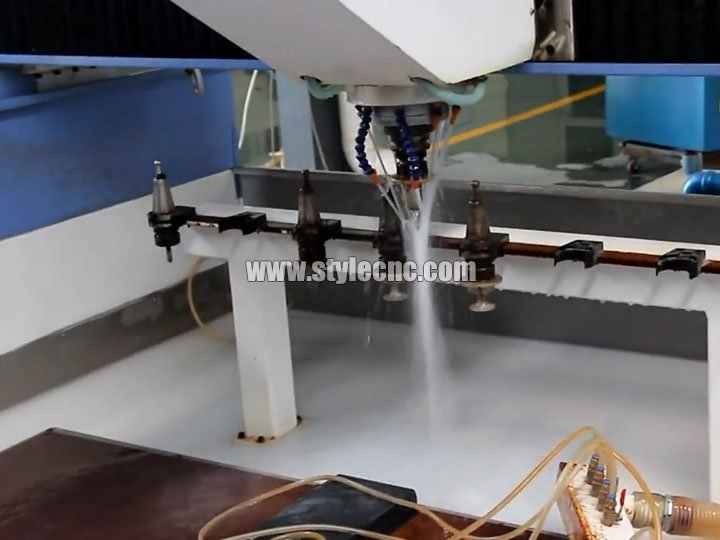

Vertical-type ATC system for CNC stone cutting and polishing machine for quartz, granite, marble

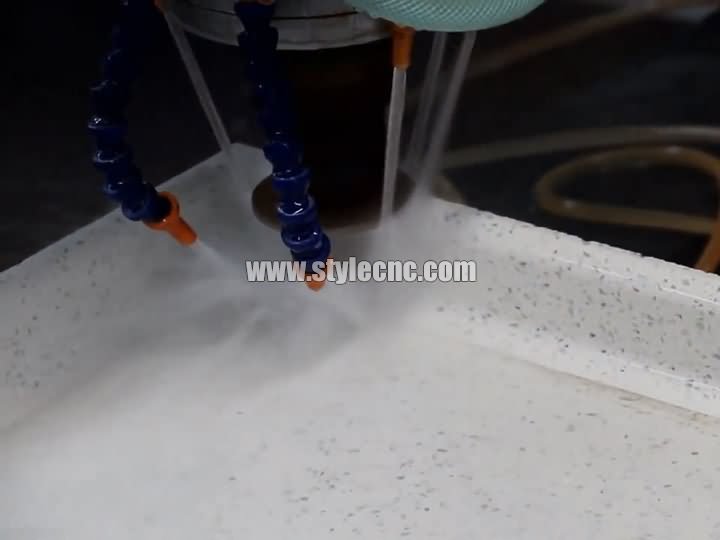

CNC stone cutting and polishing machine for quartz, granite, marble machining process

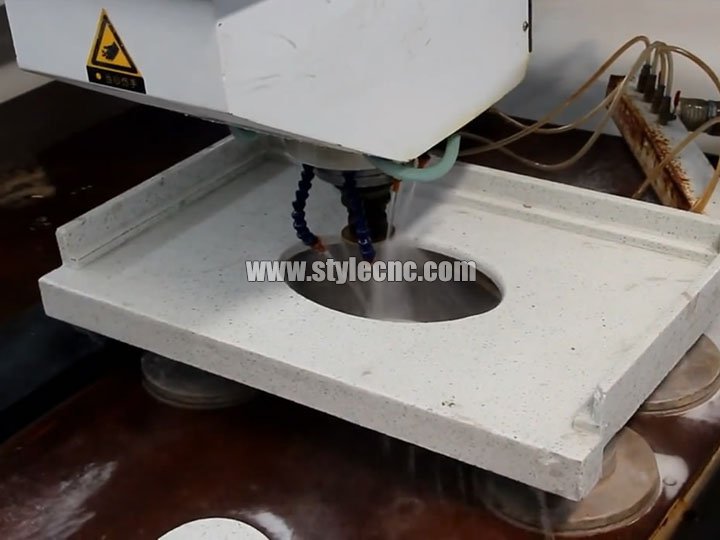

CNC stone cutting and polishing machine for quartz, granite, marble working process


Technical Parameters of CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble:


ModelSTS3113
X,Y,Z working area3100*1300*500mm
Lathe BedThick steel weld
TableSteel board+Aluminum board
XYZ Guide Rail30mm Taiwan Square Rail
X Y TransmissionImported Rack Gears
Z TransmissionImported Ball Screw
Spindle5.5KW Servo Customized Spindle(Same as 12KW)
Spindle speed0-8000rmp/min
Running speed0-8000rmp/min
Feeding speed1-10000mm/min
Fast feeding speedX/Y: 15000mm/min Z: 6000mm/min
Working accuracy0.05mm
Reposition accuracy0.02mm
Maximum processing thickness350mm
MotorServo motor
DriveServo driver
ReducerBrand from Taiwan
Way of fixing WorkpieceScuction Cup
vacuum pump5.5kw water-cooling
ATC8 sets Vertical-type ATC system
PositionAir Cylinder
Control systemNC-studio control system
Engraving CommandG code, PLT, HPGL2D, 3D
Software compatabilityUCANCAM,JDpaint software
Switch and emergency stopThe best one in China
Working voltageAC380V/3phase,50HZ
Weight4000KG / 5000KG


Applications of CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble:


1. It is suitable for cabinets artificial stone, quartz stone countertops, granite, marble and sink.

2. European style edging, other heterosexual stone, ceramics, glass and ceramic stone drilling, sanding, edge down, carving, cutting, polishing, engraving.


CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble Projects:

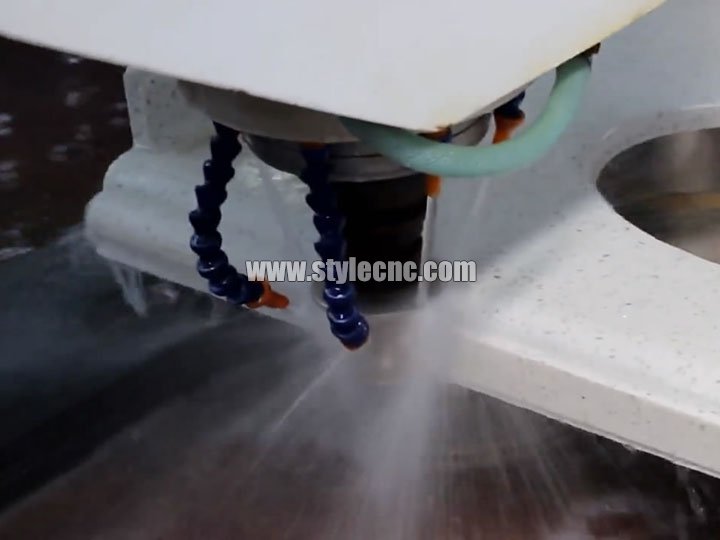

CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble Projects

Applications of CNC stone cutting and polishing machine for quartz, granite, marble

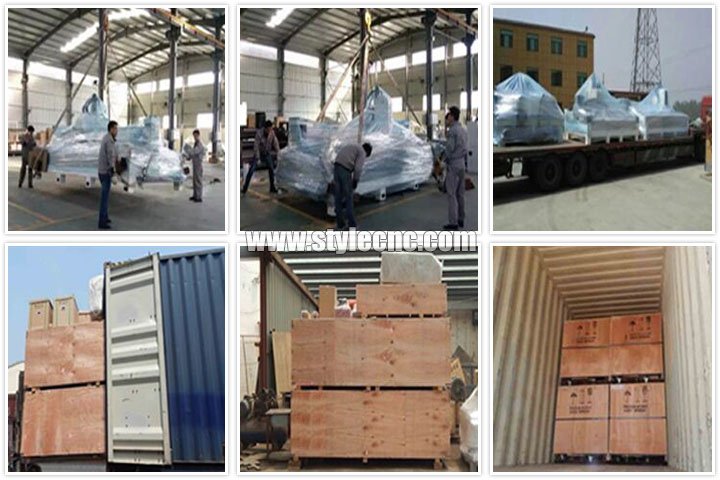

Packages of CNC Stone Cutting and Polishing Machine for Quartz, Granite, Marble:


Packages of CNC stone cutting and polishing machine for quartz, granite, marble
