Hobby CNC Milling Machine for Metal Milling, Engraving and Drilling
Product Introduction
Customer Reviews & TestimonialsHobby CNC milling machine is used to mill, engrave, cut and drill on soft metal materials including brass, copper, aluminum, iron, etc. Now the small hobby CNC mill for sale at cost price.

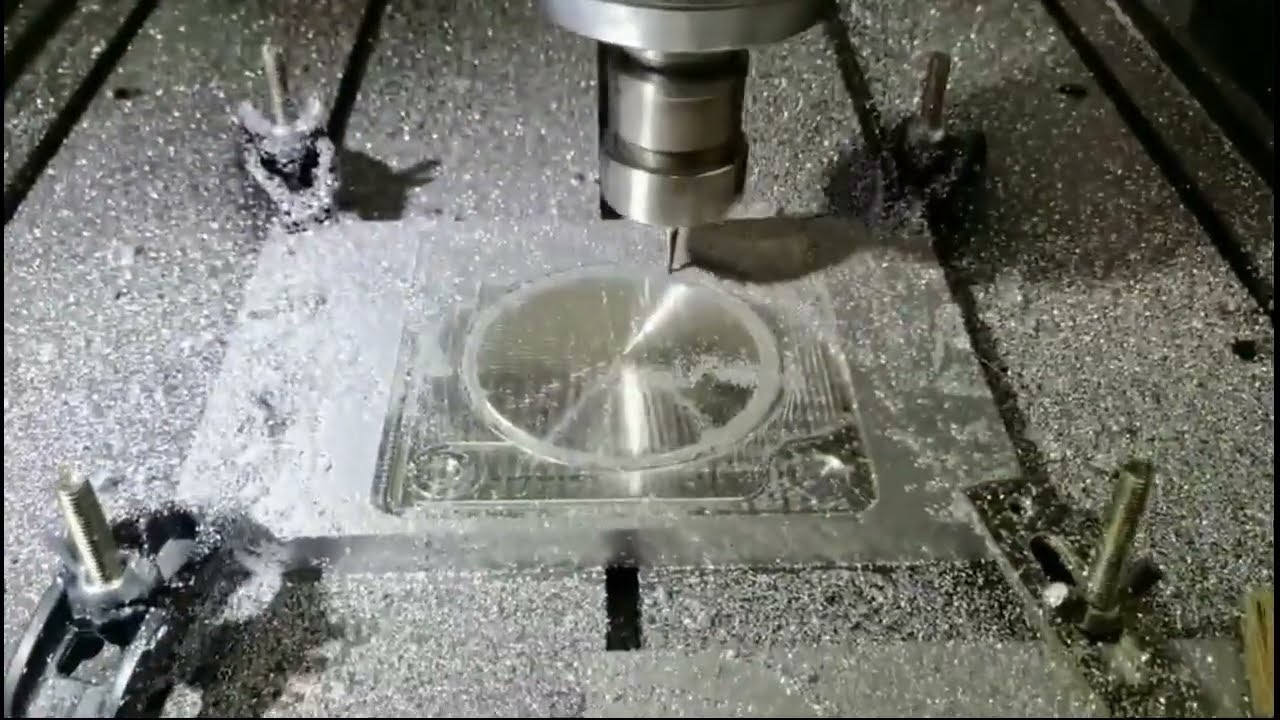

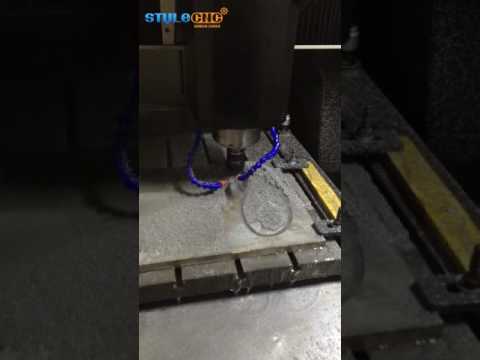

Demonstration Video
Product Details
Features of Hobby CNC Mill for Metal Milling, Engraving and Drilling
1. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.
2. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
3. Vertical bracket, removable gantry, imported rack gear and ball screw transmission, Taiwan square linear orbit, can engrave 2mm-3mm little letter.
4. The hobby CNC milling machine adopts advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
5. Automatic oil lubrication system is easy to operate by one key press, equiped with dust proof and water proof for XY axis, make the maintenance operation easily.
6. Professional high flexibility anti-bending cable, the number of anti-bending can be up to 70,000 times.
7. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
8. Good three-axis and dust-proof structure to ensure that the machines longer service life.
9. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
10. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
11. High-performance driven motor to ensure that the machines high speed and accurancy.
12. The hobby machine body is strong, rigid, high precision, reliable and durable. Whole steel structure, after high-temperature tempering, good rigidity and stability.
Hobby CNC Milling Machine for Metal Applications
The hobby CNC mill is used for Iron, Copper, Aluminum, Stainless steel, mould steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT sheet, Timber ,Gemstone, Marble, Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics, etc.
1. It is suitable for milling compactly all sorts of materials such as brass, steel, copper, aluminum, wood, iron, and plastics.
2. It is widely used in automotive, injection mould, ironware mould, drop mould, shoe mould, and other mould industries.
3. It is especially designed for milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface's sleeking of large size molds.
Technical Parameters of Hobby CNC Mill
Model | ST4040H | ST6060H |
Travel (mm) | 400×400x200 | 600x600x200 |
Table Loading Capacity (kg) | 100 | 150 |
Input Voltage (v) | AC220V or AC380V | AC220V or AC380V |
Max Spindle Speed (rpm) | 24000 | 24000 |
Power of Spindle (kw) | 2.2KW | 3.2KW |
Positioning Accuracy (mm) | 0.01 | 0.012 |
Repositioning Accuracy (mm) | 0.005 | 0.005 |
Max Milling Speed (mm/min) | 6000 | 6000 |
Tool Collet | ER20 | ER20 |
Driver | Servo Motor | Servo Motor |
Overall Dimensions (mm) | 1700×1700x1900 | 1800x1800x1900 |
Weight (kg) | 1200 | 1400 |
Max Tool Diameter (mm) | 12 | 12 |
Max Feeding Height (mm) | 200 | 200 |
Operation System for Hobby CNC Milling Machine
1. Nc Studio(standard)
2. NK200 (optional)
3. NK300 (optional)
4. SYNTEC (optional)
Standard Accessories for Hobby CNC Mill
1. automatic lubricating system.
2. illumination system.
3. cooling system.
4. manual pulse generator.
5. tool setting gage (self made).
6. auxiliary worktable.
7. adjustable sizing block.
8. tool and technical manual.
9. collets (3-4 mm).
10. clamp plat.
Hobby CNC Mill for Metal Fabrication Projects
International Shipping Around the World
All the CNC machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
-
