STYLECNC® Desktop Small CNC Milling Machine for sale

Desktop Small CNC Milling Machine for sale

Model: STM6060
Views: 0
Brand: STYLECNC STYLECNC®
Rating: 4.9 /5 based on 54 ratings and reviews
Standard Price: $3000.00 / Set
Price Range: $3000.00 to $4000.00 / Set according to configuration
The price will float according to the configurations of STYLECNC® Desktop Small CNC Milling Machine for sale
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba

Product Introduction

Buyer's Reviews

STYLECNC® Desktop small CNC milling machine is used for engraving septh on metal, such as aluminium, brass, copper and other soft metal materials. Now the CNC milling machine for sale with cost price.

Demonstration Video


Product Descriptions

Desktop small CNC milling machine


Features of Desktop small CNC milling machine:


1. Linear rails on X, Y and Z (Taiwan TBI ball screw transmission)axes and linear rails are used to guarantee high accuracy and stable performance, and support heavy weight.

2. Small tools and high-power and high-speed spindle are used. It’s a good choice for doing works on small molds when machining center is not good at it.

3. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.

3. Gantry type structure and cast iron safeguards strong stability and support. Electronic handwheel offers easy operation.

4. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc.

5. CNC controller enables easy and convenient operation, which makes end users to be familiar with the operation of the machine quickly.


Main configuration of small CNC milling machine:


1. CE certification

2. Working area:600*600*100mm

3. 2.2kw water-cooling spindle

4. 20 Hiwin Rails

5. Taiwan TBI 25 ballscrew

6. Leadshine 86H Stepper motor

7. Leadshine M860 driver

8. Fuling inverter

9. NK105 DSP control system

10. Tool sensor (Auto tool zero calibration for Z axis)

11. Cast iron structure

12. All the necessary parts for machine use (different size collets)


Application of Desktop small CNC milling machine:


Applied Industries: metal molds, bronze, embossed mold, wooden mold, three-dimensional model making and jewellery industry, etc.


Applied materials: various types of mold and model processing on man-made stone, copper, aluminum, iron, plastic and wood.


Technical parameters of Desktop small CNC milling machine:


Model

STM6060

X,Y working area

600*600*100mm

Z Max working area

100mm

Table size

650x650mm

Working delicacy

0.01-0.025mm

X,Y,Z repositioning Positioning Accuracy

0.05mm

Frame

Steel structure

X,Y, Z Structure

square orbit

Max.Speed

4m~5.5m/min

Spindle Power Motor

1.5Kw water cooling spindle

Power (not include the spindle)

300w

Spindle Speed

0-24000RPM

Drive Motors

Stepper system

Working Voltage

AC220V/50Hz

Command Language

G code

Operating System

Weihong NK105 DSP control system

Running Environment

Temperature: 0 ~ 45
Relative humidity: 30% ~ 75%

Surrounding for software

Windows98/2000/xp

Packaging

Plywood case


Machine detail pictures of Desktop small CNC milling machine:


Small CNC milling machine

Desktop CNC milling machine

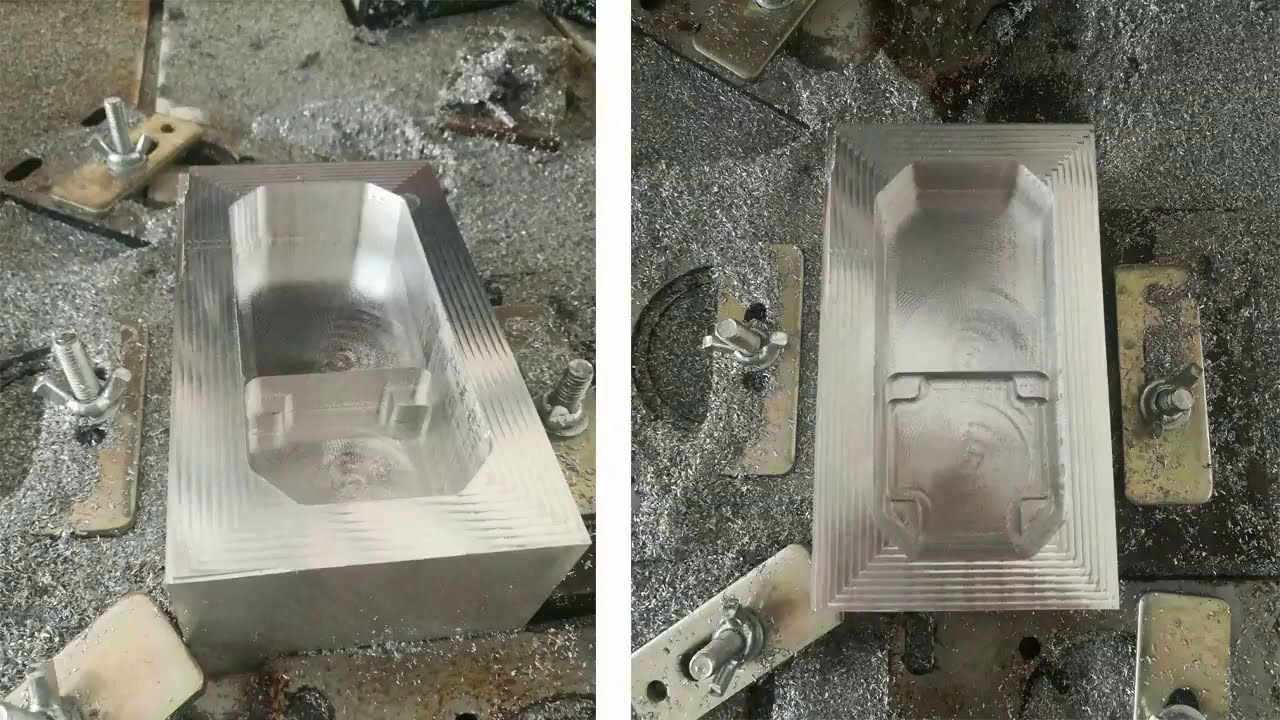

Samples of Desktop small CNC milling machine:


Desktop small CNC milling machine samples

Desktop small CNC milling machine sample

metal sample

Desktop small CNC milling machine sample
