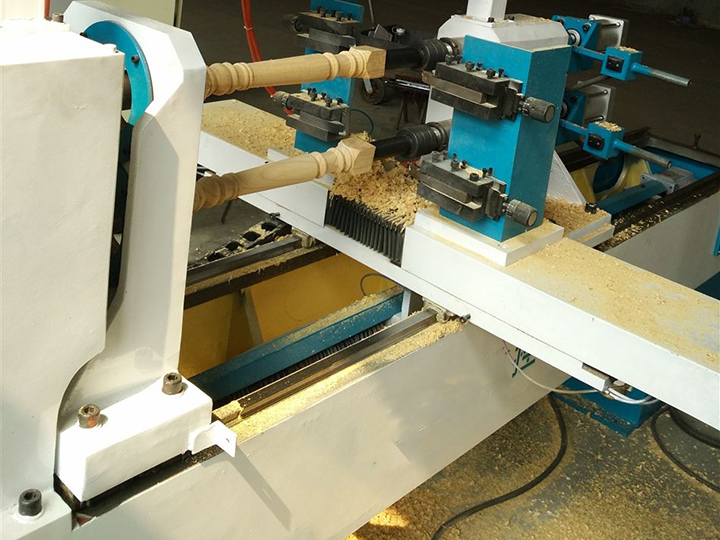

STL1516 CNC Wood Lathe Machine with Double Axis and Four Blades
« Previous
  • Small CNC Router Machine with Rotary Axis for 3D CNC Carving Projects
  • 2020 Best Laser Cutting 3D Puzzle of CO2 Laser Cutter
  • Carousel Auto Tool Changer CNC Router Machining Center
  • Big size 5 axis CNC router for foam working
  • Aluminum molds CNC router 3 axis, 4 axis or 5 axis
  • Color Laser Marking/Engraving on metal by MOPA fiber laser marking machine
  • How to use JDpaint software of CNC router?
  • 3D Dynamic Focus CO2 Laser Marking/Engraving/Cutting Machine with 200W high power RF laser tube
  • How to use a CNC Router with Rotary 4th Axis for Beginners?
STL3080 Small wood lathe turning wooden beads
Next »

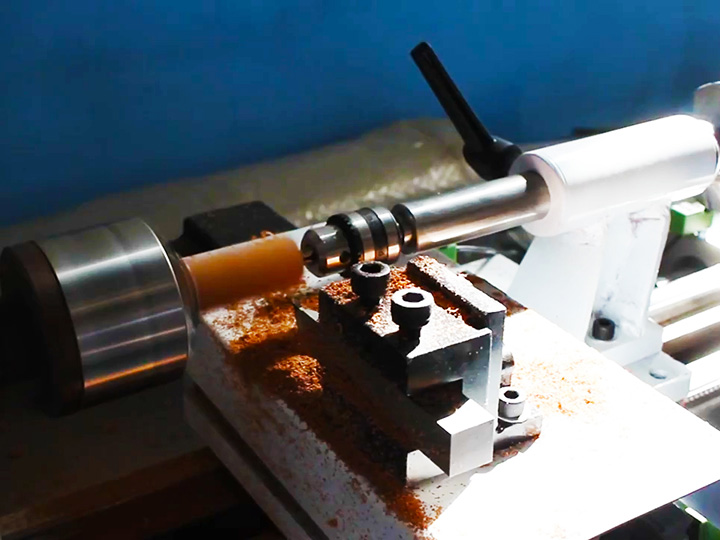

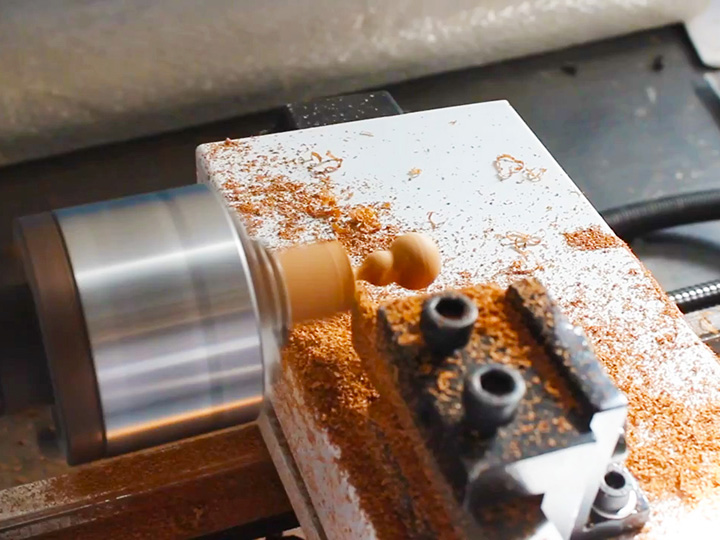

Mini wood lathe for small wood gourd turning

STYLECNC® Mini wood lathe for small wood gourd turning, the mini wood lathe is used for wood gourd, Bead, barrel, all kinds of buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, pens and wine stoppers.


Mini wood lathe for small wood gourd turning


Mini Wood Lathe Applied Materials:


Bodhi, Bodhi root, mahogany, gold-rimmed nanmu, rosewood, mahogany, boxwood.


Mini Wood Lathe features:


Processing size:


Max diameter 80mm, max length 300mm.


Make drill way:


With automatic drill, computer controlled automatic concentric perforated.



Power:


220V

Whole machine power: 1000w.

Spindle motor power: 750w.



Operate way:



Direct input required in the software.

Diameter can be simple parameters, pagoda gourd, direct

Select the shape, size. No programming, easy to use.

You can also design your own style, drawing of contour line, BMP, JPG image can be processed.



Precision:

imported square orbit and ballscrew transmission.

long lifespan, high precision.

processing precision: 0.01mm.



Cutter lifespan:


Adopt super hard alloy cnc cutter(special for stainless steel),no wear for turning and milling red wood.

Processing 3000 pieces  Lobular red sandalwood whose diameter 2cm, no need chang cutter.

Very long service life, is the standard Piece. If there is damage to the direct replacement, without understanding thes harpening technique.



 Processing speed:



In the processing of 2 size beads shall prevail, lobular Rosewood automatic.

Hole, turning every 38 seconds, 30 seconds without holes.

Phoebe play hole turning, every 25 seconds, not punching every 19 seconds.

The processing of 5 cm diameter handball, 2.5 minutes one piece.

Processing handgrip gourd, diameter 5 cm, 11 cm long with 5 minutes.



Machine size:


Length: 100cm.

Width: 50cm.

Height: 80cm.

Weight: 150kgs.

Package Weight: 200kgs.
