12mm Wood Laser Cutter STJ1390

Last Updated: 2022-03-10 10:55:14 By Jimmy with 1295 Views

12mm wood laser cutter STJ1390 can be equipped with different laser powers for different wood cutting.

12mm Wood Laser Cutter STJ1390
4.9 (85)
01:40

Video Description

For wood lovers, the laser cutting machine is indeed a very good tool, because its cutting accuracy and efficiency are much higher than manual. Wooden handicrafts are a relatively wide range of applications for laser processing. Laser processing of wood products has high precision, fast speed and simple operation, and is suitable for the precise processing of wood products and other non-metallic materials. Any pattern graphics can be simply drawn through the software, and the high energy density of the laser beam is used to project the surface of the workpiece, which can accurately and efficiently complete the cutting and hollowing of the graphics. There is no die wear during laser processing, so the material loss is small and the yield is higher.

Main configurations of 12mm wood laser cutter STJ1390

1. CE standard.

2. working area 1300*900mm.

3. RECI laser tube (80w,100w,130w,150w for choose).

4. Leetro 6525 controller with software lasercut 5.3.

5. USB offline.

6. Leadshine 573S15-L motor and 3ND583 driver.

7. Taiwan Hiwin rail guide.

8. Shanghai Fulong belt.

9. Singapore lens and mirrors.

10. Blade table (honeycomb table for choose).

11. Red pointer.

12. Auto focus.

13. Water chiller (CW3000 for 80W,CW5000 for 100W ,CW5200 for 130W and 150W).

14. Air pump ACO-009.

15. Dust collector 550w.

16. Standard tool box.

Optional parts

1. Motorized up-down platform .

2. Rotary device.

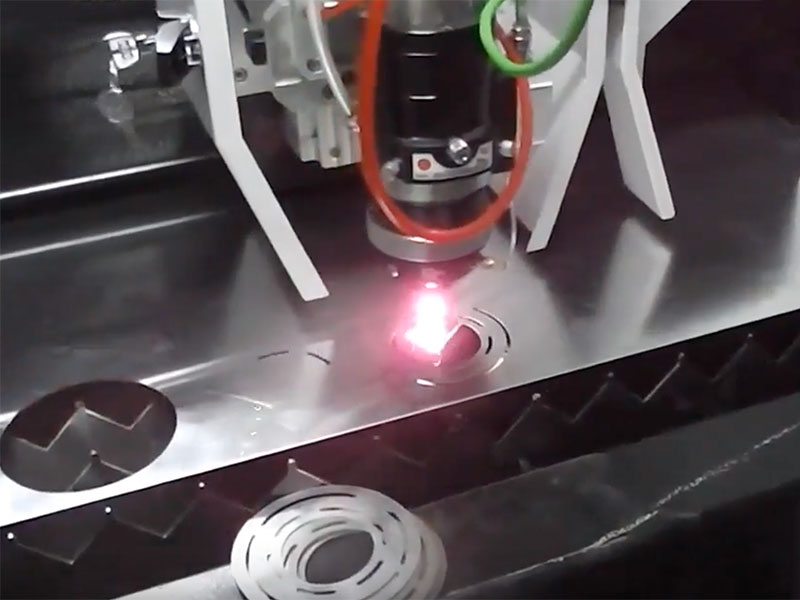

1000W Fiber Laser Machine Cut 1mm Aluminum Composite Panel

2015-11-24 Prev Video

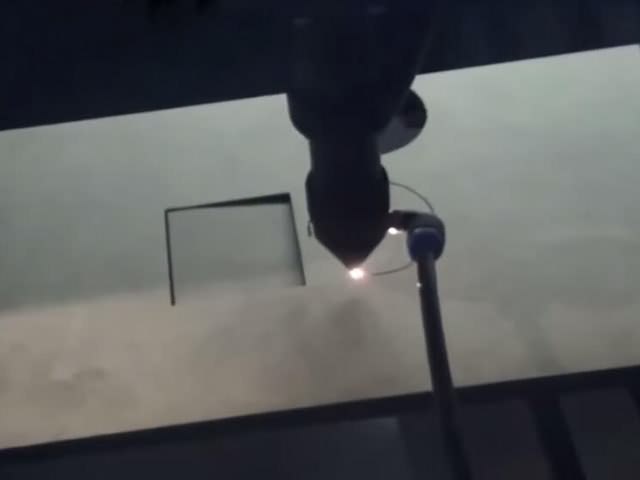

150W CO2 Laser Cutter STJ1390 Cut 18mm MDF Board
