CNC Plasma Cutter for Square & Round Tube Cutting Projects

Last Updated on May 14, 2024 at 17:21:25 by Claire with 1610 Views

Square and round tube plasma cutter machine is a professional and affordable CNC plasma pipe cutting table for cutting all types of metal pipes automatically.

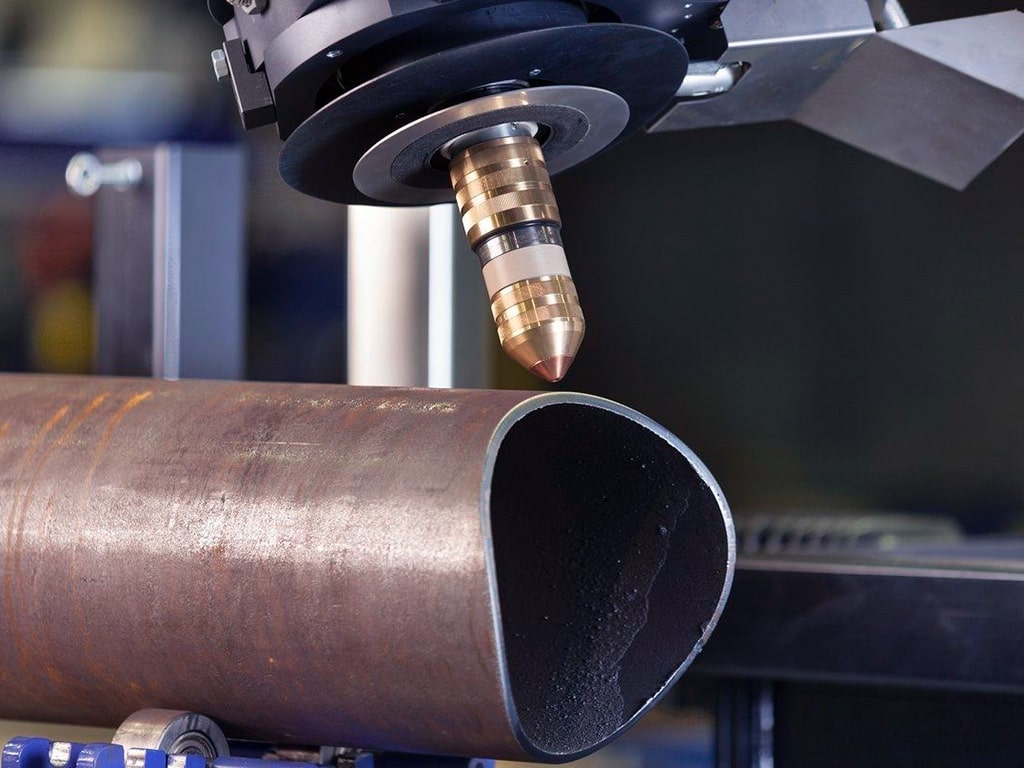

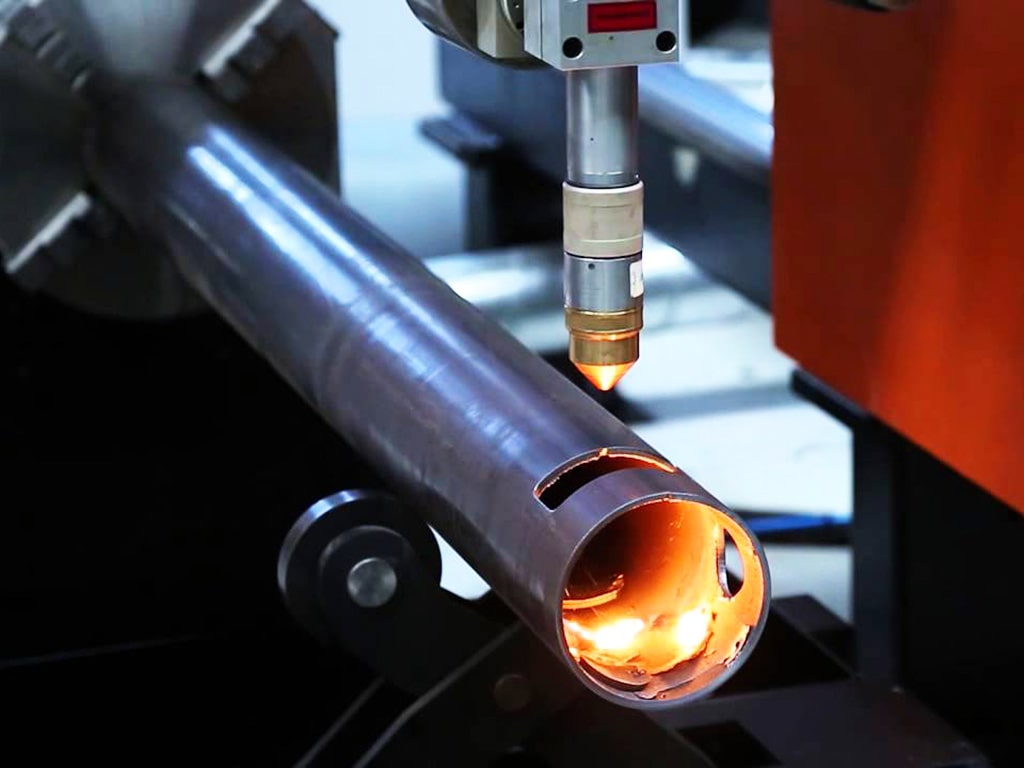

CNC Plasma Cutting Round Tubes

CNC Plasma Cutting Round Tubes

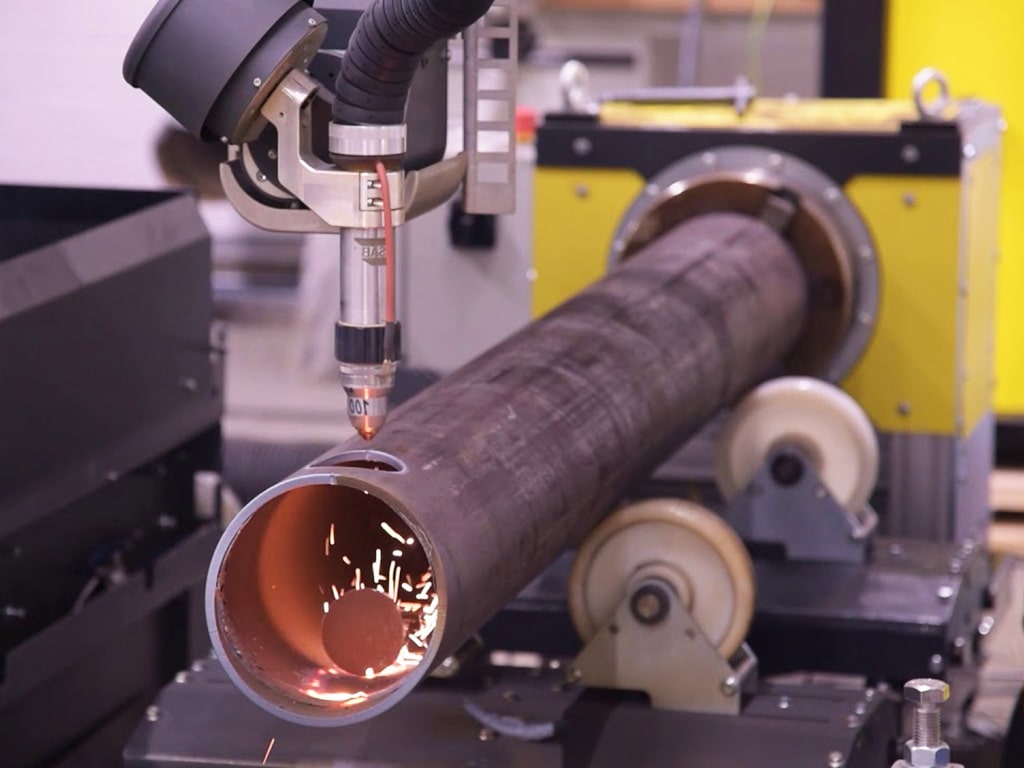

CNC Plasma Cutting Round Metal Tubes

CNC Plasma Cutting Round Metal Tubes

Automatic Plasma Table Cutting Round Metal Tubes

Automatic Plasma Table Cutting Round Metal Tubes

Automatic Plasma Cutter Cutting Round Metal Pipes

Automatic Plasma Cutter Cutting Round Metal Pipes

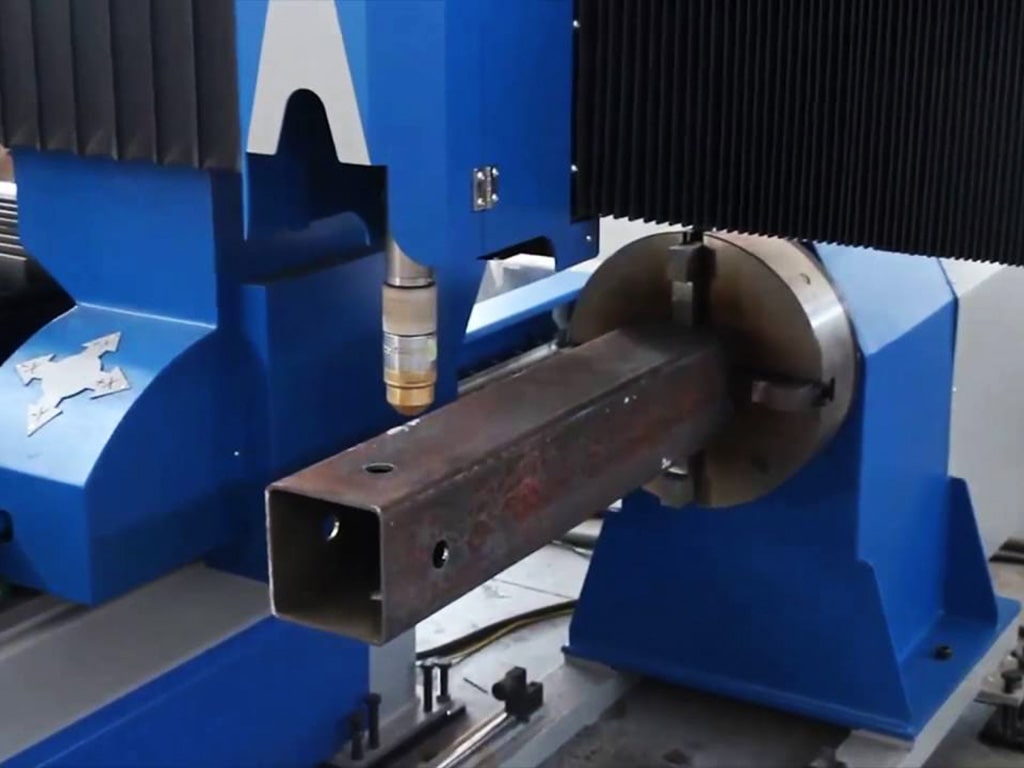

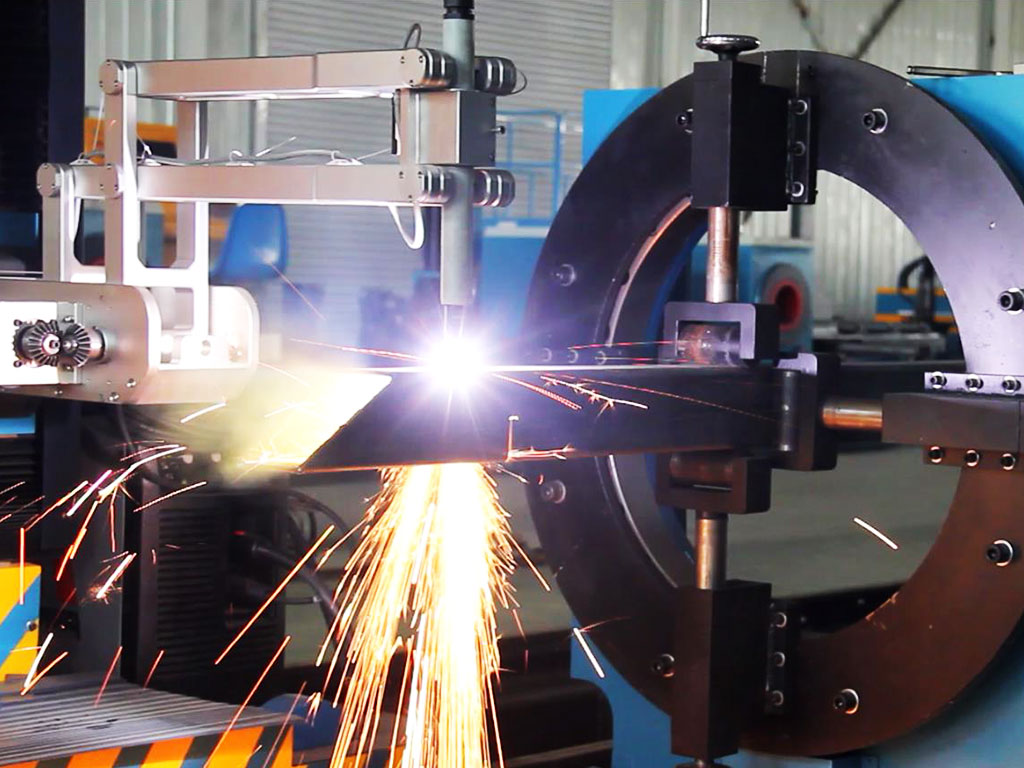

Automatic Plasma Cutter Cutting Square Metal Tubes

Automatic Plasma Cutter Cutting Square Metal Tubes

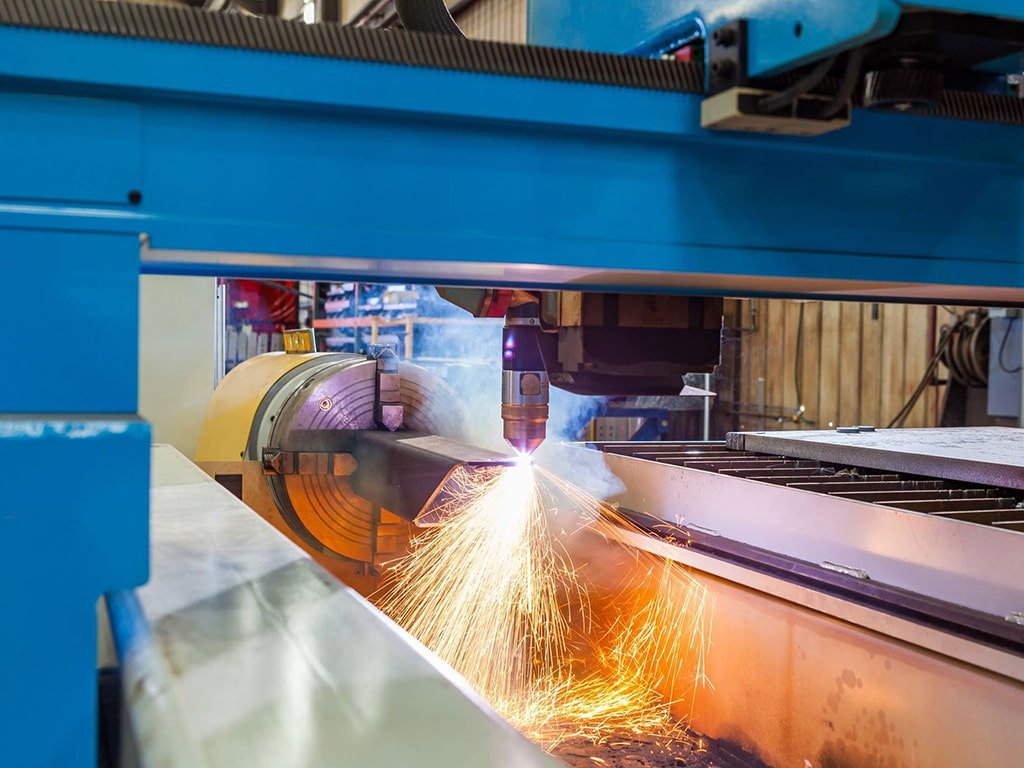

CNC Plasma Cutting Square Pipes

CNC Plasma Cutting Square Pipes

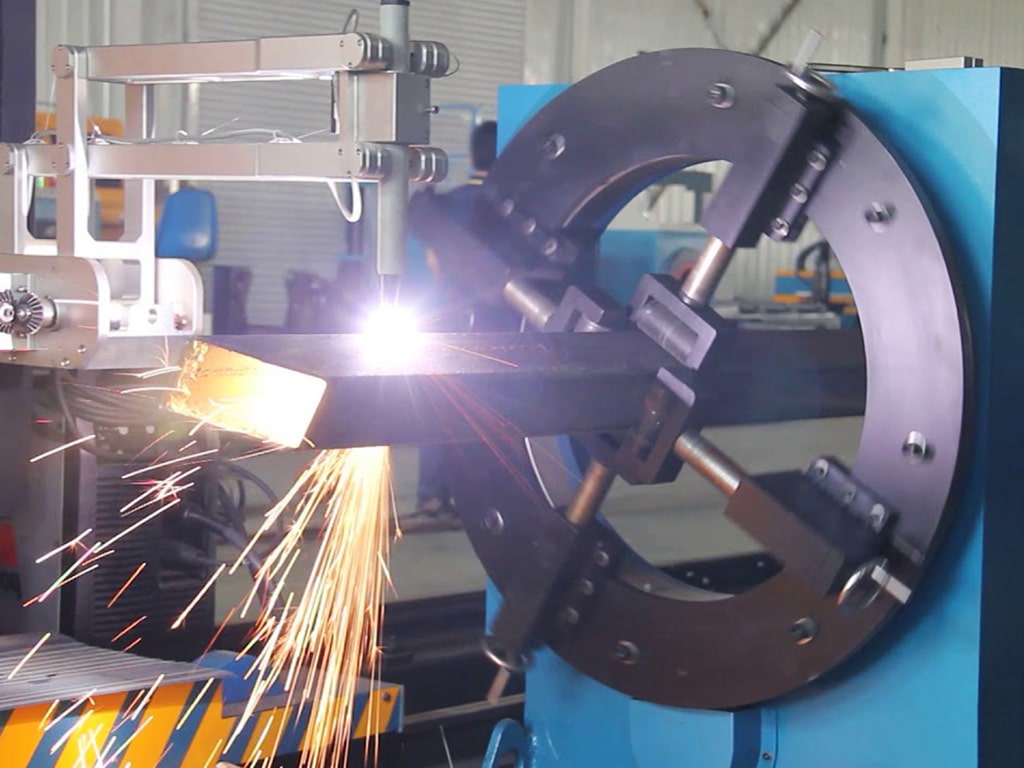

CNC Plasma Cutting Square Tubes

CNC Plasma Cutting Square Tubes

Automatic Plasma Table Cutting Square Metal Pipes

Automatic Plasma Table Cutting Square Metal Pipes

CNC Plasma Cutting Round Tubes
CNC Plasma Cutting Round Metal Tubes
Automatic Plasma Table Cutting Round Metal Tubes
Automatic Plasma Cutter Cutting Round Metal Pipes
Automatic Plasma Cutter Cutting Square Metal Tubes
CNC Plasma Cutting Square Pipes
CNC Plasma Cutting Square Tubes
Automatic Plasma Table Cutting Square Metal Pipes

Metal square and round tube plasma cutting machine can realize automatic program and auto CNC nesting work for any cut of round tubes and square pipes. This machine is used for steel structure, shipbuilding, bridge and heavy machine industries. It is suitable for cutting cylinder branch, two or three layer saddle cutting of the pipe. It is ideal for large quantities of professional intersection pipe cutting. The cuttable materials include carbon steel, stainless steel and non-ferrous metals, and the CNC plasma table can be designed according to the different needs of users.

Applications

1. Applicable materials: Iron tubes, aluminum pipes, galvanized tubes, stainless steel pipes, and more.

2. Applicable industries: Case shell of mechanical and electrical products, advertising signages, decorations, black smith gardens, automobile, shipbuilding, electrical accessories, amd welding industry.

Features

1. Equipped with professional control system for variety types of cuts, including tees, miters, saddles, centerline offsets, multiple intersections, elbow supports, gusset slots, round, rectangular, saw cut, overlapping pipe holes, re-pads with axial offsets and baseline or work point offsets, and other types of intersecting cuts.

2. Precise casting parts and strict manufacture and test procedures ensure high accuracy, reliability and durability.

3. Integrated with specialized programming and computing modules for complicated large steel structure construction, it can generate CNC codes from AutoCAD drawings to save operators and engineers time. And these modules are compatible with IGES, DXF, SAT and STL files.

4. Automatic, servo driven height sensing system compensates vertical position for out-of-round pipe. In-feed and out-feed conveyors available for loading and unloading.
