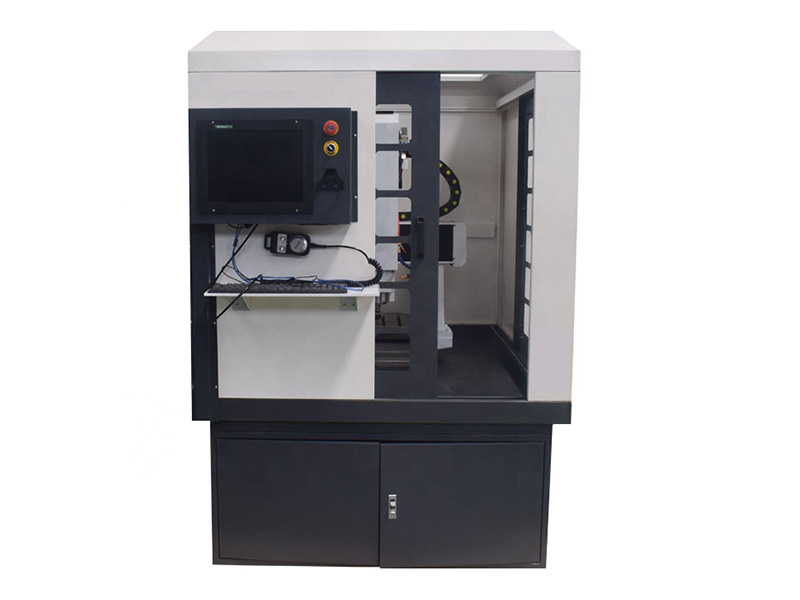

High precision CNC metal engraving machine for iron, brass, copper and steel is used for machining 2D or 3D designs on metal materials. It's one economic metal engraving machine with full automatic CNC programing.
Advantages of High Precision CNC Metal Engraving Machine:
1. Linear rails on X, Y and Z (Germany screw transmission) axes and linear rails are used to guarantee high accuracy and stable performance, and support heavy weight.
2. Small tools and 2.2kw professional constant power spindle with cooling system are used. It’s a good choice for doing works on small molds when machining center is not good at it.
3. Gantry type structure and cast iron safeguards strong stability and support. Electronic handwheel offers easy operation.
4. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc.
5. CNC controller enables easy and convenient operation, which makes end users to be familiar with the operation of the machine quickly.
Applications of High Precision CNC Metal Engraving Machine:
1. It is suitable for engraving compactly all sorts of materials such as copper, brass, aluminum, steel, iron, wood and plastics.
2. It is widely used in automotive, injection mould, ironware mould, shoe mold, drop mold, and other mold industries.
3. It is especially designed for engraving molds, eyeglasses, watch, panel, badge, brand, graphics and words of 3-dimensional and outside surface's sleeking of large size.
Features of High Precision CNC Metal Engraving Machine:
1. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.
2. High power water cooling brushless motor, more forceful cutting capability, wear well.
3. High speed driver and stepper motor could enhance work efficiency;
4. Well designed dust and water proof device ensure the machine easy maintenance.

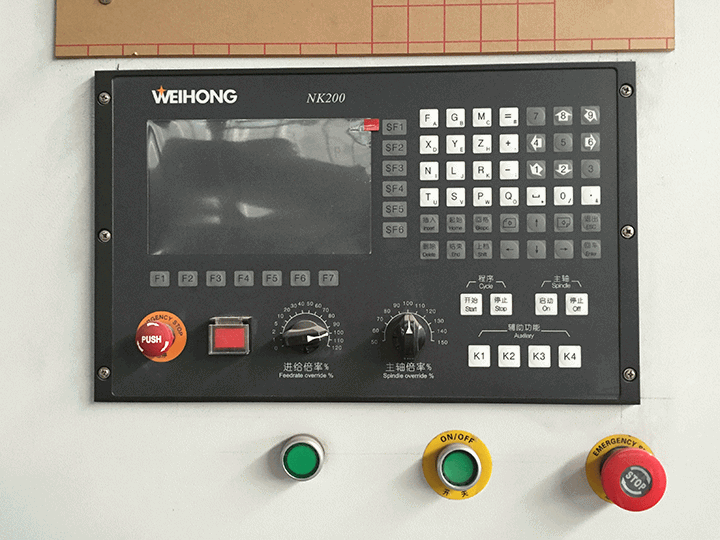

5. Advanced NK200 control system with break-point memory pointes, reducing material waste.
6. High compatibility, applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM, etc. It is easily to process relief sculpture, shadow carving, 3 dimension characters in fancy style, etc.
Technical Parameters of High Precision CNC Metal Engraving Machine:
| Model | ST4040M |
| Working Area | 400×400×200mm |
| Table Size | 550mm×550mm |
| Worktable | T-slot |
| Spindle Motor | 2.2 kw constant power milling spindle |
| Cooling Type | Water Cooling |
| Rotating Speed | 24000rpm |
| Motor Drive | Stepper Motors |
| Drive Mechanism | Taiwan TBI ballscrew transmission |
| Accuracy | ±0.02mm |
| Max Motion Speed | 30000mm/min |
| Max Engraving Speed | 20000mm/min |
| Controlling Code | G code ; *.u00 ; *.mmg ; *.plt . |
| Compatible CAD/CAM Softwares | Ucancam V8 / Type3 / Artcam |
| Control System | Weihong Nk200 |
| Collets Type | Φ3.175 -Φ12.7 |
| Operating Voltage | 3Phase AC380V, 50-60Hz or 220V |
| Net Weight | 1500KG |

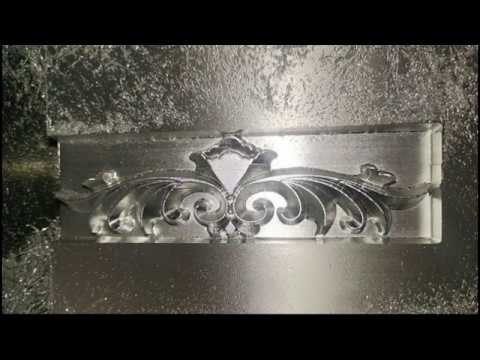

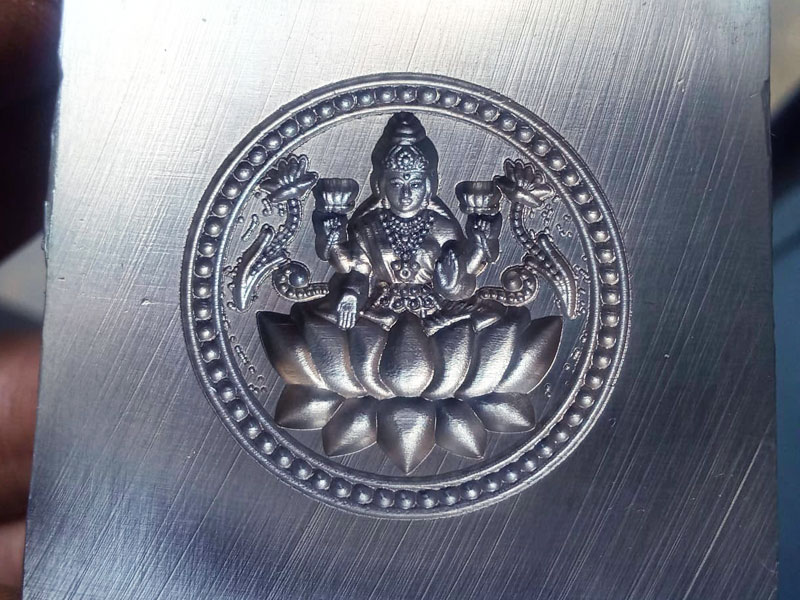

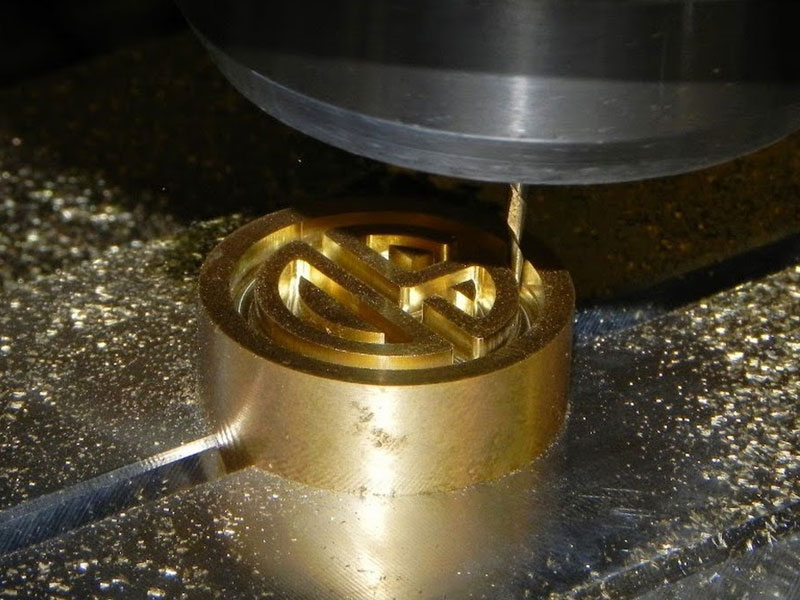

Samples of High Precision CNC Metal Engraving Machine:
Package and Service of High Precision CNC Metal Engraving Machine:
Packed the cnc metal engraving machine with plastic sheet for clearing and damp proofing.
Then put the cnc metal engraving machine in the plywood case for safety and clashing.
Transport the plywood case into the container.
1. Guarantee & After-sale Service
12 Months warranty under normal use and lifelong maintenance we supply.
24 hours technical support by phone, email and other online contact.
Free training on machine operation, daily maintenance and basic program designing etc. in seller’s factory.
Friendly English operation manual.
2. Delivery Time
Usually for normal model within 15 days after get the deposit .
3. Payment Terms
T/T in advance
L/C is allowed if the amount more than 10,000 USD. Please issue the L/C draft for our configuration first.
Other kinds of payment we can consider if acceptable for us.
