Are you just entering the world of laser cleaning, feeling overwhelmed by the volume of new cleaning tools? This is an affordable backpack laser cleaner machine with 100W pulsed laser power available for pickup with a starting price of $7,000 for home use, small business, and education.
Today, with the increasing awareness of environmental protection and safety, the cleaning method that is safer, more environmentally friendly, simple and efficient, and does not damage the surface of the workpiece has become the focus of everyone's attention.
The continuous innovation and improvement of laser technology has brought laser cleaning into the public eye. It can not only clean organic pollutants, but also can clean inorganic substances, including metal rust, metal particles, coatings, dust, oxides, paint, oil stains.
This backpack laser cleaner is a portable cleaning tool that uses a high-frequency short-pulse laser as the working medium. The hand-held laser cleaning gun emits high-energy beams of specific wavelengths to irradiate and act on the rust layer, paint layer, and pollution layer to form a rapidly expanding plasma (highly ionized unstable gas) and generate shock waves, which breaks up the contaminants and gets cleaned up.
⇲ Non-contact cleaning, without damaging the base of the parts.
⇲ Precise cleaning, can achieve precise location, precise size selective cleaning.
⇲ No chemical cleaning fluid, no consumables, safety and environmental protection.
⇲ Simple operation with a special control panel, which is convenient to control.
⇲ It is portable and can be hand-held or cooperated with a manipulator to realize automatic cleaning.
⇲ Ergonomic design, greatly reducing the labor intensity of operation.
⇲ The backpack laser cleaning system is stable, almost no maintenance.

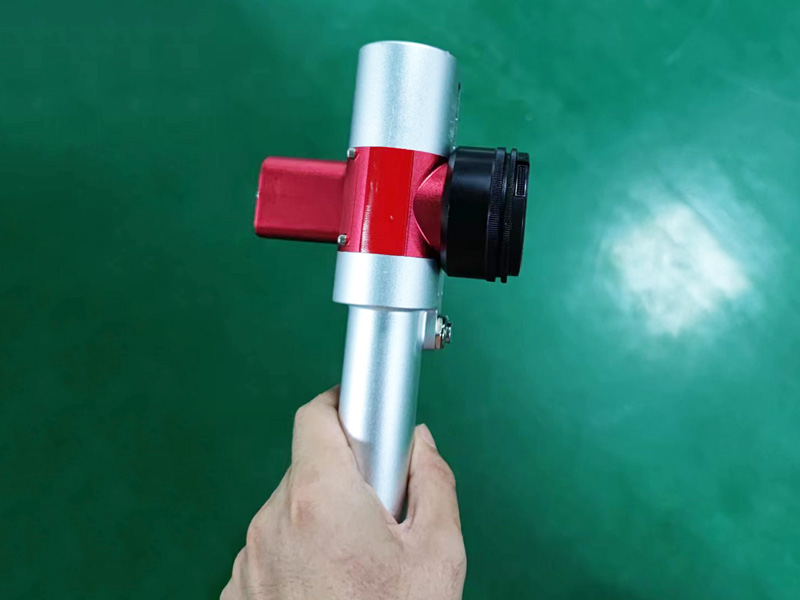

Handheld Laser Cleaning Gun
No chemical agents are used, and there is no cleaning agent residue, which can eliminate the environmental pollution caused by cleaning chemical cleaning, and achieve zero pollution at the industrial level.
The laser pulse acts on the surface of the workpiece to be cleaned, and the focused laser beam can accurately evaporate the surface objects or dust without causing damage or secondary pollution to the surface of the object.
Although the initial investment of the machine is large, it can be used stably for a long time, with low operating cost, high speed, high efficiency, and time-saving (the service life of the machine can be as long as 10 years with correct use and maintenance). The long-term cost is low over traditional cleaning methods.
In addition to removing various pollutants on the surface of various materials, such as precision parts, metal cleaning in small spaces, and complex structural parts that are difficult to reach by traditional methods, it can be transmitted through optical fibers and used in conjunction with robots to achieve long-distance operate. Not only is it convenient and efficient to clean, but it also ensures the safety of operators in certain dangerous places.
Backpack laser cleaning machines have been popularized in education, home business and industrial manufacturing, including microelectronic devices, semiconductor components, memory templates in the field of microelectronics. Stone carvings, glass, bronzes, oil paintings and murals in the field of cultural relics protection. Cleaning of composite molds, rubber molds, and metal molds. Hydrophilic treatment in the field of surface treatment, surface roughening, treatment of welds before and after welding. Paint removal and rust removal for aircraft, ships, weaponry, bridges, metal pressure vessels, metal pipes, aircraft parts, and electrical product parts. As well as urban graffiti, printing cylinders, building facades, nuclear industry.
High Power Laser Surface Cleaning.
High Power Laser Surface Treatment Induced Surface Improvement.
Uniform Surface with Low HAZ.
High Power Laser Paint Removal.
Subtractive Surface Treatment.
Cosmetic Surface Conditioning (Replaces Bead Blasting).
Tire Mold Cleaning.
Mold Cleaning.
Selective Paint Removal.
Metal Parts Cleaning.
Anodizing Removal 3D Surface Cleaning and Conditioning.
"On-The-Fly" Cleaning.
Ablation (Anodized, Painted or Coated).
Paint Stripping and Removal.
Rust and Corrosion Removal.
Degreasing.
Model | LCP100B/LCP200B |
Laser Power | 100W/200W |
Laser Type | Pulsed |
Pulsewidth | 10-500ns Adjustable |
Operating mode | Handheld |
Max Pulse energy | 1.5mJ |
Beam Quality(M2) | <1.8 |
Power range(%) | 10-100 |
Repeat frequency(kHz) | 1-3000 |
Wires length | 3m |
Cooling mode | Air-cooling |
Degree of instability | <2% |
Overall size L*W*H | About 336mm×129mm×400/500mm |
Overall Weight | About 18kg (Without battery) |
Cleaning gun weight | <0.9Kg |
Voltage | Built-in battery, 100W continuous work for 1hrOptional 2P AC220V±10%,50/60Hz |
Total consumption | <500W |
Environment temperature | 5℃~40℃ |
Environment humidity | ≤80% |
Cleaning Gun Parameters | |
Scanning range (L* W) | 10-300mm, continuously adjustable; Dual axis supports 7 scanning modes; |
Scanning frequency | 10 Hz~300Hz continuously adjustable |
Field lens focal length (mm) | 160mm(Optional 210mm/254mm/330mm/420mm) |
Depth of focus | Max 5mm |
The 100W backpack laser cleaning machine starts at around US$5,800. All depends on the cleaner's laser generator brands and powers. Due to the use of pulsed lasers, the price is slightly higher than that of continuous lasers.
If you're looking to find out exactly how much backpack laser cleaning systems cost, you can request a quote to find out now.
Backpack Laser Cleaning Machine Parts & Accessories
I bought it to refurbish some scrap metal. It sets up easily and cleans like a dream. I upgraded the laser power to 100 watts for deeper rust removal and oil cleaning jobs. Works great as I expected. Super impressed with the results.
