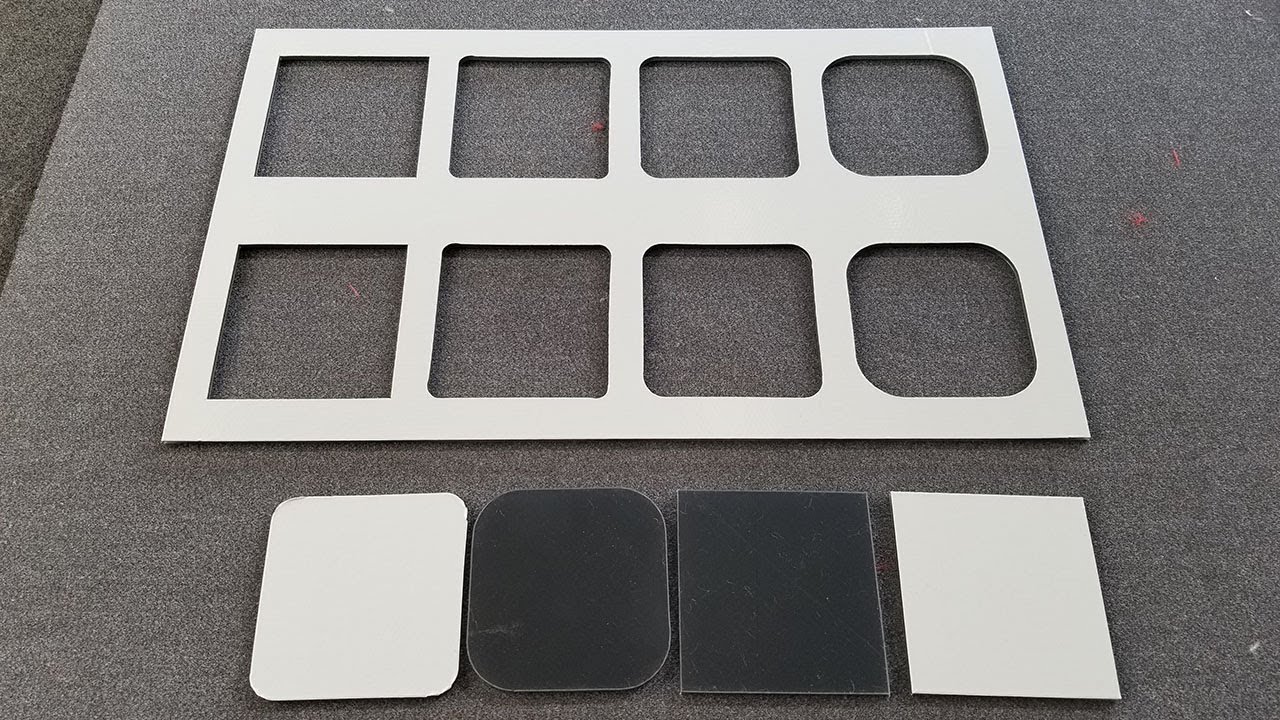

CNC Tangential Oscillating Knife Cutter for Polymers

From: https://www.stylecnc.com  |  Feb 28, 2022  |  Author: Claire  |  687 Views
 4.9 /5 Based On 36 Votes
CNC Tangential Oscillating Knife Cutter for Polymers
High Precision Felt Cutting Machine with CNC Knife Cutter
« Previous
  • Small CNC Router Machine with Rotary Axis for 3D Woodworking
  • 48x96 CNC Router Table for 3D Relief Carving
  • 5'x10' Linear ATC CNC Router Machine for Relief Carving
  • Laser Cut Clear Acrylic 3D Puzzle for CO2 Laser Cutter Kit
  • High Precision Laser Cutter for Metal Fabrication
  • Aluminum Mold Making CNC Router with 3 Axis, 4 Axis, 5 Axis
  • CNC Router Machining Center with Automated Carousel Tool Changer
  • How to Setup and Use CNC Router Machine and CO2 Laser Machine Combo?
  • How to Use JDPaint Software with CNC Routers?
Oscillating Knife Cutting Machine for 8mm Rubber Sheets
Next »

CNC Tangential Oscillating Knife Cutter for Polymers

Oscillating Tangential Knife


The Oscillating Tangential knife is designed to provide high accuracy cutting of a wide range of semi rigid materials. Blade oscillation and tangential control ensures that the cutting blade delivers accurate cuts even on thicker materials without excessive over cut. The Oscillating knife is available with a wide range of blade lengths and attack angles, to suit a wide variety of materials.


Heavy Duty Collet Drag Knife


This is a heavy duty drag knife system that will fit into a standard 13/16” collet. It will work with all 5 and 10 HP spindles (Elte or HSD). This robust knife design features Exacto style blades available in many sizes and strengths. Built in swivel for high performance but can use heavy pressures. Integrated pressure foot with adjustable tension to hold down materials under heavy cut pressures. The heavy duty drag knife is designed for knife cutting applications that involve heavy gauge flexible materials.


Multi Purpose Tangential Knife


The Tangential Knife adds the robustness needed for heavier knife cutting applications than the vinyl knife can accommodate. A selection of optional interchangeable cartridges are available which can accommodate standard knife blades as well as pizza wheel cutters, creasing wheels and 45° blades. The tangential knife can be used for cutting styrene, composites, duct liner, X-board and many other materials.


Vinyl Knife Head


Used for large format vinyl cutting, cutting paper mask on acrylic sheets for painting, and for cutting sand blast mask. It may also be used for cutting vinyl on flex faced and vacuum formed pan signs. The vinyl cutting knife can easily be attached to any Z axis and as an added bonus, doubles as an effective pen plotter. Plotting pens and blades included.


Tangential Knife Cartridge for Box Cutter Blades


The box cutter cartridge holds straight, multi purpose blades suitable for cutting a wide variety of materials from thin polyester film to thick card and foam board.


Tangential Knife Cartridge for 45° Blades


This tangential knife cartridge is specially designed to hold knife blades at a 45° angle and can be used to create ‘V’ cuts in materials such as Xanita, Reboard and others.


Tangential Knife Cartridge for Creasing Wheels


The creasing wheel cartridge can be fitted with a range of different sized and profiled creasing wheels for use in sample making applications. The creasing wheels which are sold separately are easily interchanged using a precision push fit mechanism.


Tangential Knife Cartridge for Saber Blade


The saber blade is a robust and multi purpose tool ideal for cutting hard materials such as laminates, Styrene, Sintra and similar up to about 1/16” thick.


Tangential Knife Cartridge for Pizza Wheel


This cartridge allows the use of a rotary ‘Pizza Wheel’ blade which is ideal for cutting tough or abrasive materials such as gasket.
