CNC Router & Laser Machine for 3D Puzzle Dollhouse Making

Last Updated: 2022-03-12 09:29:57 By Jimmy with 4416 Views

STYLECNC provides different woodcraft 3D puzzle dollhouse making projects by CNC router and CNC laser machine as reference for you to buy a wood CNC machine.

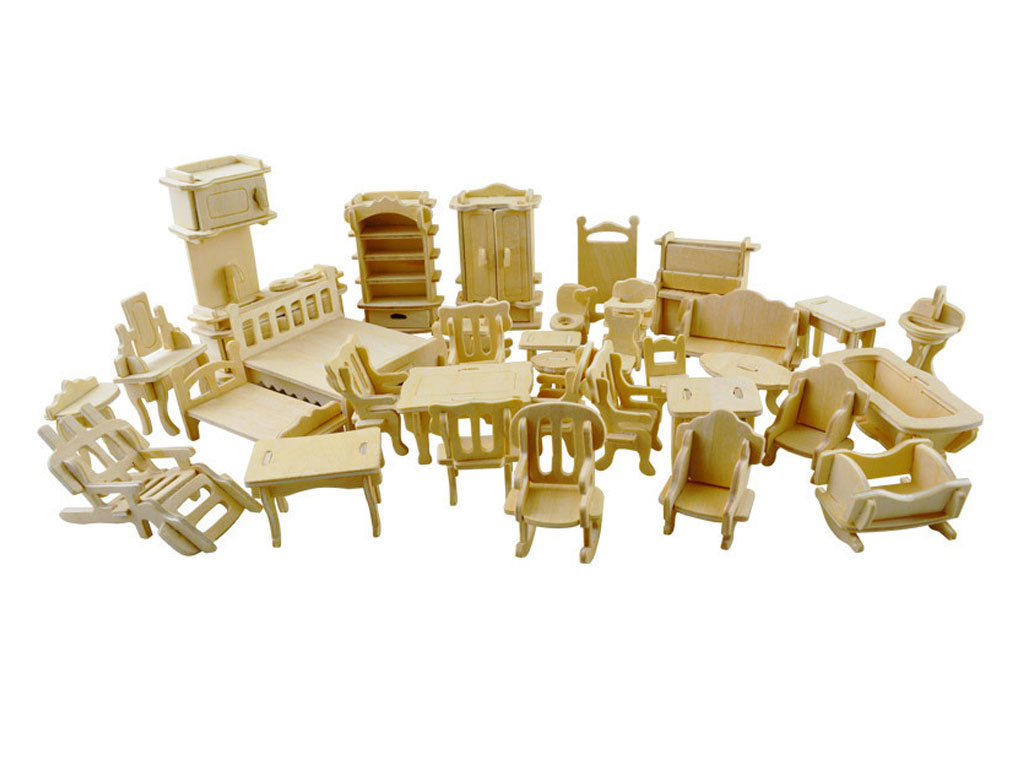

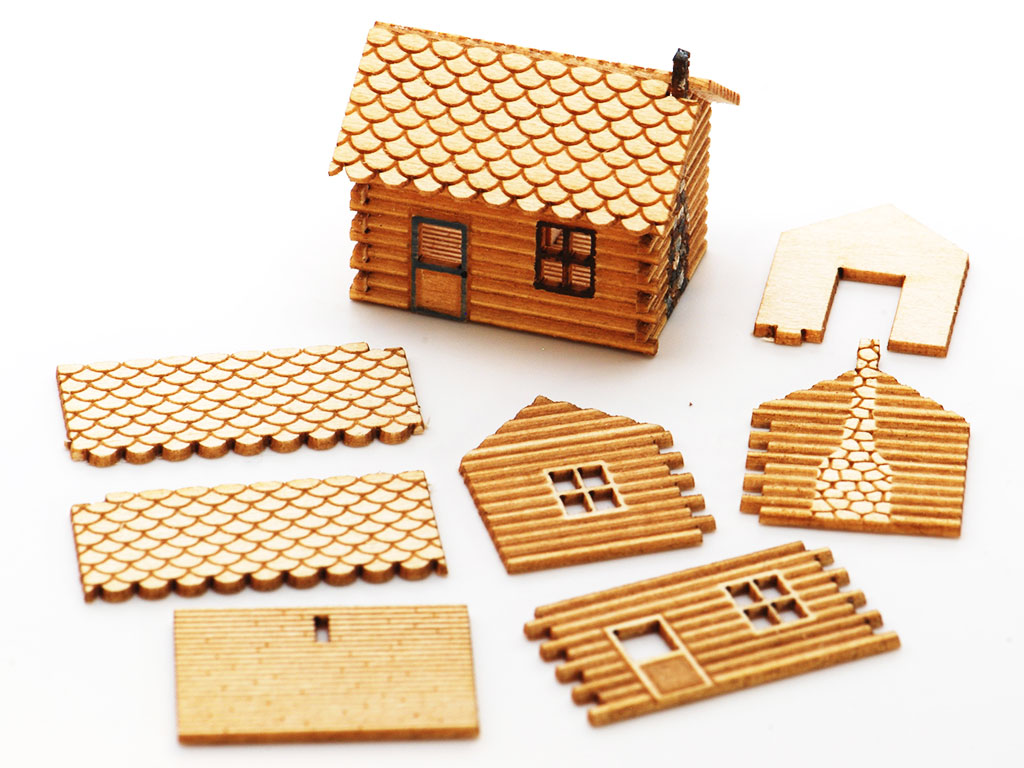

Woodcraft 3d puzzle dollhouse making by CNC laser cutter

Woodcraft 3d puzzle dollhouse making by CNC laser cutter

Woodcraft 3d puzzle dollhouse making by CNC router

Woodcraft 3d puzzle dollhouse making by CNC router

Woodcraft CNC router projects

Woodcraft CNC router projects

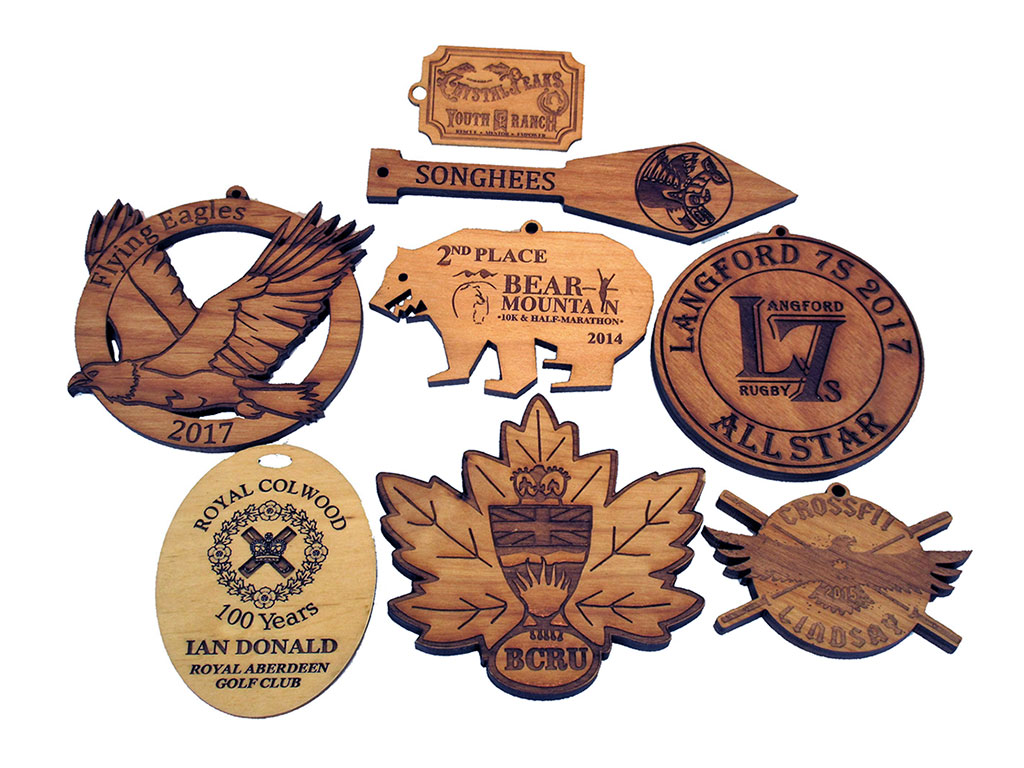

Woodcraft laser cutter projects

Woodcraft laser cutter projects

Woodcraft 3d puzzle dollhouse making by CNC laser cutter
Woodcraft 3d puzzle dollhouse making by CNC router
Woodcraft CNC router projects
Woodcraft laser cutter projects

Both the laser engraving cutting machine and the CNC router are controlled by a computer numerical control system for 3D wood puzzle dollhouse making. First need to design the cut file, then open the file through the software, start the CNC programming, after the control system receives the control command, the machine starts to work.

A laser machine is a device that uses the thermal energy of a laser to cut materials. The laser is emitted by the laser generator and focused into a laser beam with high power density through the optical path system. The light from the laser beam can cause chemical and physical changes in the wood, or the light can burn away parts of the wood to reveal patterns and text that need to be etched.

CNC routers rely on a high-speed rotating engraving head driven by an electric spindle. Through the tool configured according to the wood, the wood fixed on the table can be cut, and various plane or 3-dimensional patterns designed by the computer can be cut.

The structure of CNC router machine is relatively simple. It is controlled by a computer numerical control system, which enables the engraving machine to automatically select the appropriate bit to cut on the X, Y, and Z axes of the machine. In addition, the tool of the laser machine is a complete set of optical components. The tools of CNC router are various solid bits.

The diameter of the laser beam is only 0.01mm. The laser beam enables smooth and bright engraving and cutting in narrow and delicate areas. But the CNC tool can't help either, because the diameter of the CNC tool is 20 times larger than the laser beam, so the machining accuracy of the CNC router is not as good as that of the laser cutting engraving machine.

CO2 Laser Engraving & Cutting Wood Crafts Ideas & Plans

2015-12-04 Prev Project

3D Laser Cutting Wood Plans with CO2 Laser Tube

2015-12-05 Next Project

Similar Ideas To Stimulate Your Creativity

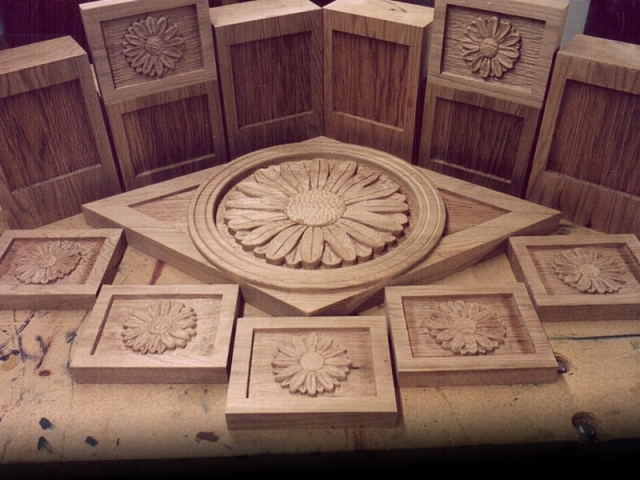

Cabinet Door Making CNC Router Projects
2023-10-07By Claire

Cabinet Door Making CNC Router Projects

Cabinet door making CNC router is used for furniture decorations, musical instruments, wooden crafts, solid wood furniture, wood door and cabinet making.

CNC Machine Carving Relief Sculpture with Stones
2023-03-14By Claire

CNC Machine Carving Relief Sculpture with Stones

A stone CNC router machine can carve relief sculpture with marble, granite, blue stone, sandstone, artificial stone, milestone, ceramic tile, jade and crystal.

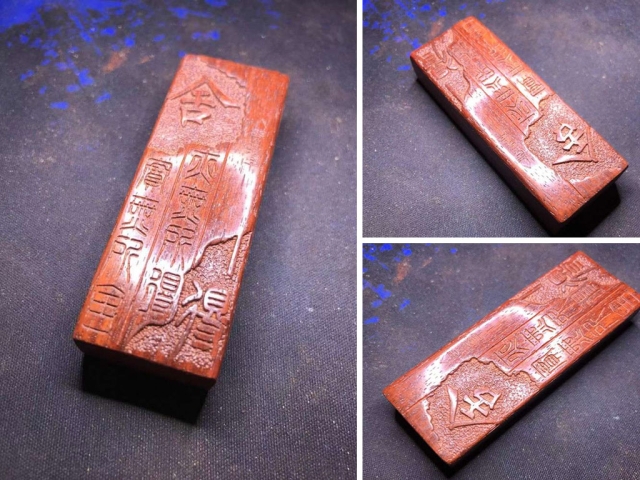

Small CNC Router for Wood Signs & Plaques Carving Projects
