Automatic Carousel Tool Changer CNC Router Machining Center - Video Description

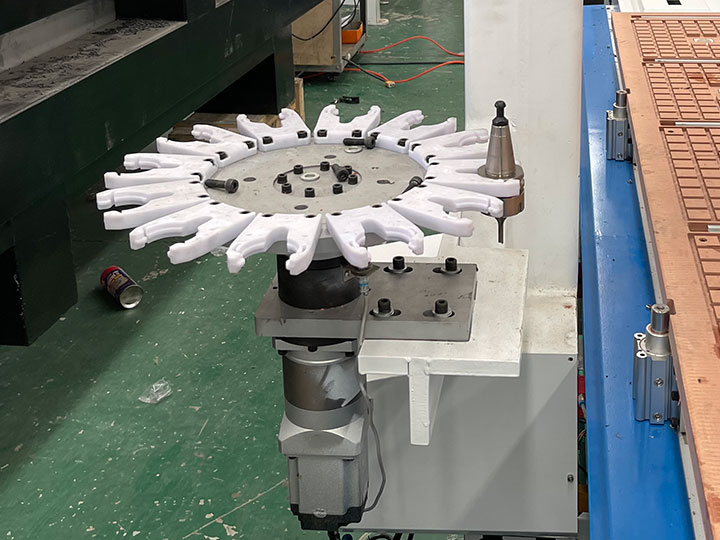

CNC router machining center with automatic carousel tool changer kit can hold 12 bits to take the shortest path between any tools for fast changing times. ...Read More Video Intros

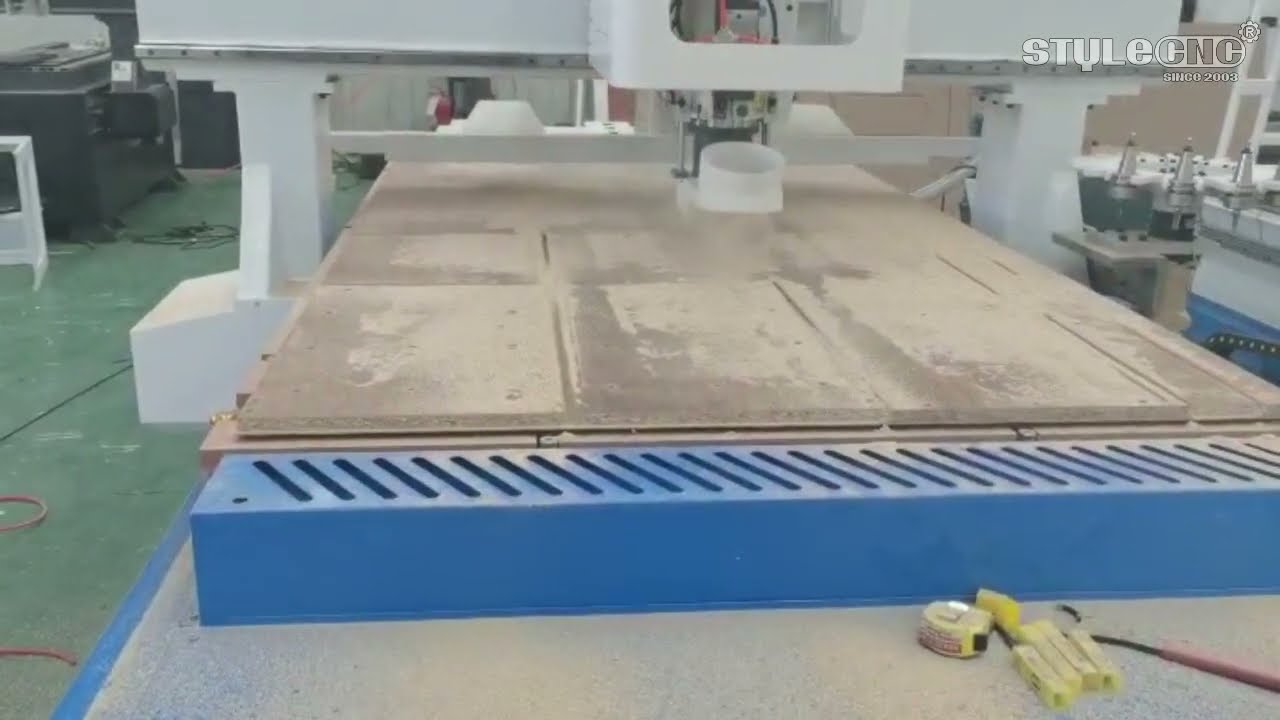

Automatic carousel tool changer CNC router STM1530D-ATC is a high-end CNC machining center with a 9KW spindle, plus a tool magazine with 8 bits, 10 bits, 12 bits, 16 bits, or 20 bits. If 20 bits are not enough, you can add another tool magazine, which is a double tool magazine. According to the need, the 9KW spindle will automatically go to the tool magazine to pick up the router bit. Whether it is making door shapes, carving patterns, hollowing out lattices, cutting slots, this 9KW spindle can easily get the job done, it can continue working after automatic tool change, no need to manually change the tool back and forth with high efficiency, it is a professional machine tool for making furniture.

Features of CNC Router Machining Center with Automated Carousel Tool Changer

• The machine bed of this model adopts steel structure seamless welding tempering aging treatment as a whole, which has strong rigidity and no deformation.

• Yaskawa servo drive system is adopted, with fast speed and high precision.

• Follow-up automatic tool change system with a capacity of 12 tool magazines, which saves tool change time and improves production efficiency.

• Square rail, double row and four rows of ball sliders, which has large bearing capacity, stable operation, high precision and long service life. Double nut ball screw, high precision, accurate cutting.

• Advanced file preprocessing function helps users to correct errors in processing files in time, and is well compatible with processing codes generated by Type3/Artcam/Mastercam/Caxa. Advanced 3D curve prediction algorithm, smooth broken line, ensure the speed and accuracy of curve running.

• Six-partition vacuum adsorption to process and design soft materials such as density boards. It can also place boards of different sizes to maintain the flatness of the board surface, so that the depth of the engraved renderings is consistent, and the loading and unloading time of boards other than processing is improved. .

• Using the intelligent CNC control system, it has smart protection function of processing out of bounds to prevent the mechanical collision caused by the design layout exceeding the processing width. It is equipped with handwheel control, which is more convenient and flexible. Equipped with a large independent cabinet, split keyboard operation, simple and convenient, easy to learn, referred to as "fool-style" so that users can quickly and flexibly master the use of equipment, and the independence is stronger.

• The oil injection system can lubricate the transmission part of the CNC machining center to improve the service life of the machine.

Applications of CNC Router Machining Center with Automated Carousel Tool Changer

• Furniture Making - Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

• Woodworking - Voice box, game cabinets, computer tables, sewing Machine table, instruments.

• Plate Processing - Insulation part, plastic chemical components, PBC, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

• Decorate Industry - Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals.

...Read Less Video Intros
