5'x10' Linear ATC CNC Router Machine for Relief Carving

Last Updated: 2022-02-25 11:49:49 By Jimmy with 4115 Views

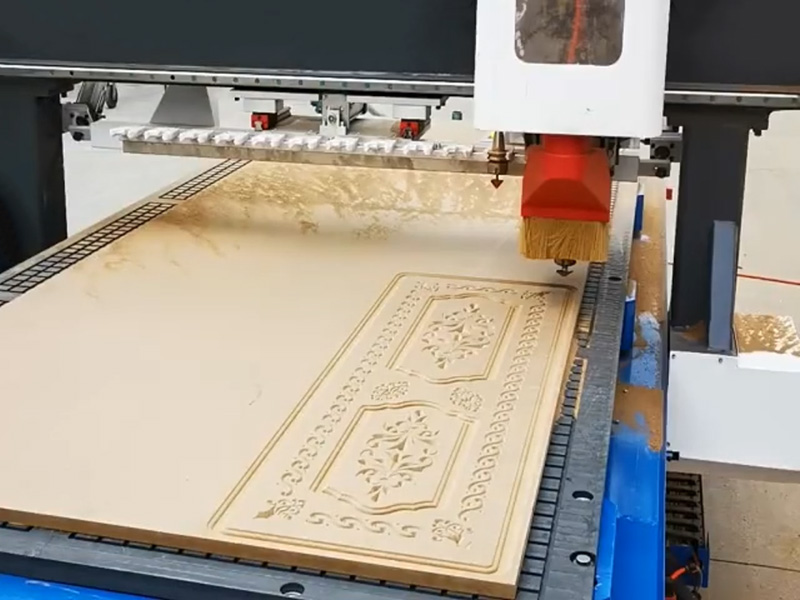

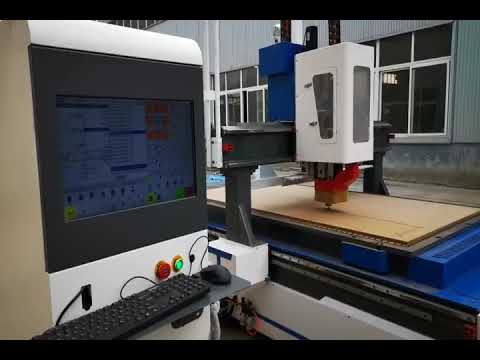

This is a video of 5x10 linear ATC CNC router machine for relief carving, the machine is made of 5x10 table size and 9KW automatic tool changer spindle with 12 tool holders, it could change tools automatically.

5'x10' Linear ATC CNC Router Machine for Relief Carving
5 (30)
10:15

Video Description

ATC CNC router represents the highest technology CNC machine. It has an independent tool magazine, which can automatically change the required tools during the processing of the workpiece without stopping the work. When you can engrave complex patterns, choosing different tools greatly accelerates work efficiency and improves product quality.

The ATC CNC router adopts a high-power automatic tool changer spindle with good starting performance and large torque, which can give full play to the advantages of the machine's high speed and higher efficiency. It adopts high-torque servo motor made in Japan, which has the advantages of low noise, high speed and high positioning accuracy. It is equipped with a unique tool-changing mechanism, you can exchange the required tools at will, and the dedicated tool setting table can accurately compensate the tool length error.

Scope of Applications

Woodworking industry: three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe polishers, game machine cabinets and panels, mahjong tables, computer tables and auxiliary processing of panel furniture products.

Advertising industry: production of advertising signs, logos, acrylic cutting and blister molding, a variety of advertising materials and decorative products.

Mold industry: it can engrave metal molds such as copper, aluminum, iron, and non-metal molds such as artificial marble, sand, plastic board, PVC pipe, wood board, etc.

Other industries: It can engrave all kinds of shadow sculptures and relief sculptures, which are widely used in the craft gift industry.

How to Make NC Files with JDPaint?

2020-11-26Prev Video

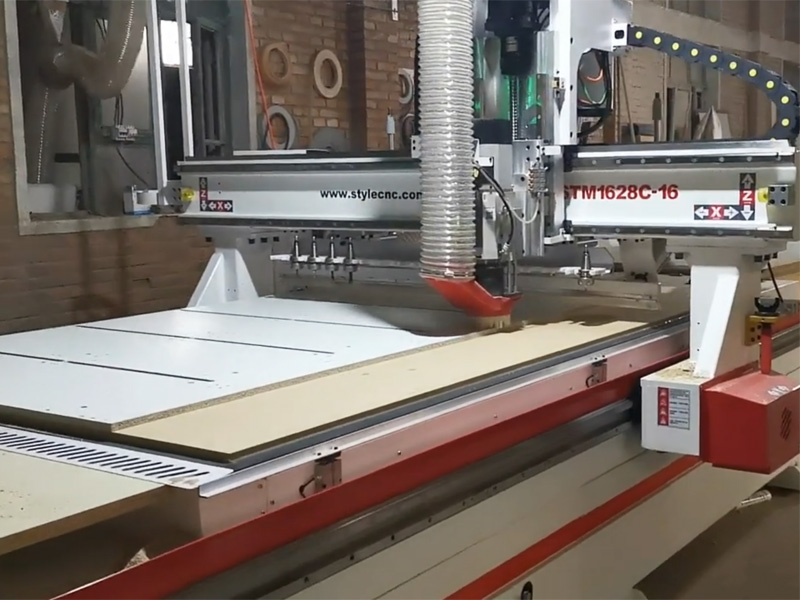

CNC Nesting Machine for Closet Door & Wardrobe Door Making
