3D Fiber Laser Marking System & Software Applications

Last Updated: 2022-03-11 11:05:18 By Claire with 1464 Views

3D fiber laser marking system is used to engrave variety 3D surfaces such as bevel, segmentation, cylinder, cone, sphere, curved surface, and more applications.

3D Fiber Laser Marking System & Software Applications
4.9 (65)
01:25

Video Description

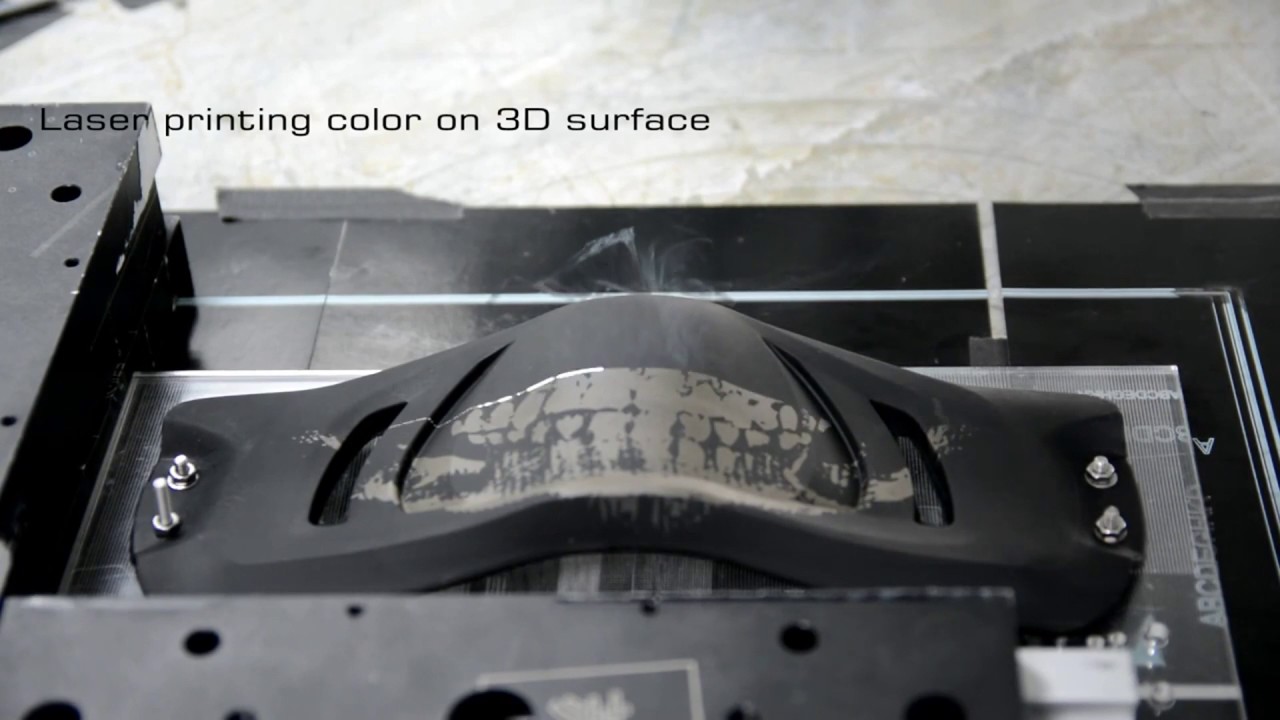

3D laser marking is a laser surface depression processing method. Compared with traditional 2D laser marking, 3D marking has greatly reduced the surface flatness requirements of the processed object, and the processing effects are more colorful and more creative. Processing technology came into being.

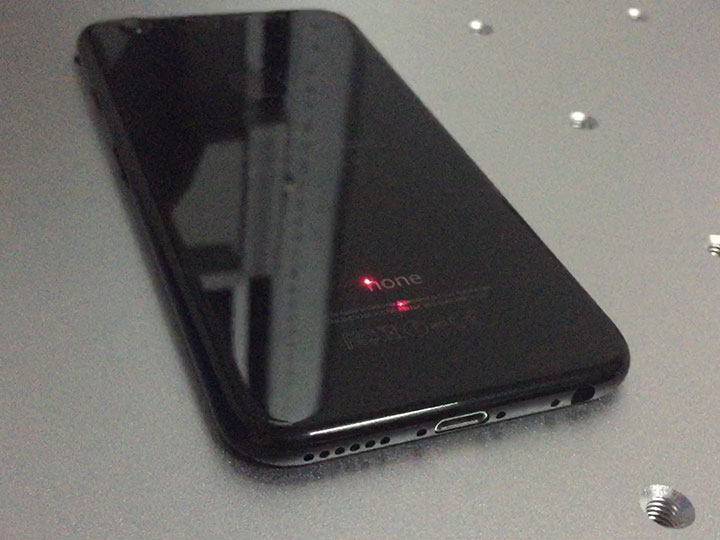

3D laser marking machine is suitable for all kinds of metal and nonmetal materials laser marking on 3D surface. It’s widely used in mobile manufacture, cubic circuits, medical equipments, moulds, 3C electronics, auto parts, electronic communication, etc.

Technical Parameters

Aperture<8 mm

Dynamic performance

Tracking error 0.16 ms

Step response time (settling to 1/1000 of full scale)

1% of full scale 0.40 ms

10%of full scale 1.2 ms

Typical speeds

Marking speed 2.0 m/s

Positioning speed 10.0 m/s

Weight (without objective) 3 kg

f=160 f-theta lens (110*110) DOF ±30

f=254 f-theta lens (174*174) DOF ±50

Common Specifications

(all angles are in optical degrees)

Dynamic performance

Repeatability (RMS) < 2 µrad

Offset drift < 30 µrad/K

Gain drift < 80 ppm/K

Long-term drift over 8 hours < 0.3 mrad

Optical performance

Typical scan angle ±0.35 rad

Gain error < 5 mrad

Zero offset < 5 mrad

Nonlinearity < 3.5 mrad / 44°

Power requirements

For XY ±15 V DC, max. 3 A each

For Z 24V 3A

Digital version XY2-100

Operating temperature 25 °C ± 10 °C
