4 axis CNC stone carving machine is a four axis vertical 3D stone carving machine, which is used for three-dimensional processing of stone column, buddha, statues, etc.
4 axis CNC stone carving machine is a four axis vertical 3D carving machine, which is widely used in three-dimensional processing of stone, foam and wood products, 360° carving human body, statues, sculptures, handicrafts, furniture, wood handicrafts, stone column, buddha, statues and so on.
Features of 4 Axis CNC Stone carving machine:
1. Maximum processing height 2000mm, diameter 1400mm.
2. Heavy duty steel structure, ensure that the bed structure stability and rigidity.
3. Use high speed spindle, the maximum spindle speed up to 24000rpm, ensure efficiency.
4. Adopt Taiwan guide rail, Japan Shimpo reducer, ensure accuracy.
5. Memory of breakpoint, it can save nine origin, very user-friendly operation.
6. 4 axis cnc stone Carving machine use RichAuto 4 axis control system.
Technical parameters of 4 Axis CNC stone carving machine:
|X,Y,Z axis working area||1400*1400*2000mm|
|Table surface||Rotary structure|
|X,Y,Z structure||Taiwan HIWIN Square linear guide rail|
|X,Y structure||Rack and pinion transmission,|
high speed and more stable,
Y -double motor drive.
|Z structure||Imported ball screw, high precision|
|Max. idling speed||50m/min|
|Max. working speed||30m/min|
|X Y Z working Accuracy||< 0.02mm|
|Spindle||6KW water-cooling spindle|
|Spindle rotating speed||24000rpm|
|Rotary size||1200mm diameter,2000mm length|
|interface||CF card, Internet ,USB|
|Operation language||G code (plt, mmg, uoo, bmp)|
|Driving system||Japan servo motor and driver|
|Operating system||Rich Auto DSP 4 axis controller|
|Software||Powermill / Type3 / Artcam/ Ucancam|
|Working voltage||AC380V, 3ph, 50-60Hz|
Main parts in 4 Axis CNC stone carving machine:
4 Axis CNC stone carving machine rotary table:
4 Axis CNC stone carving machine spindle:

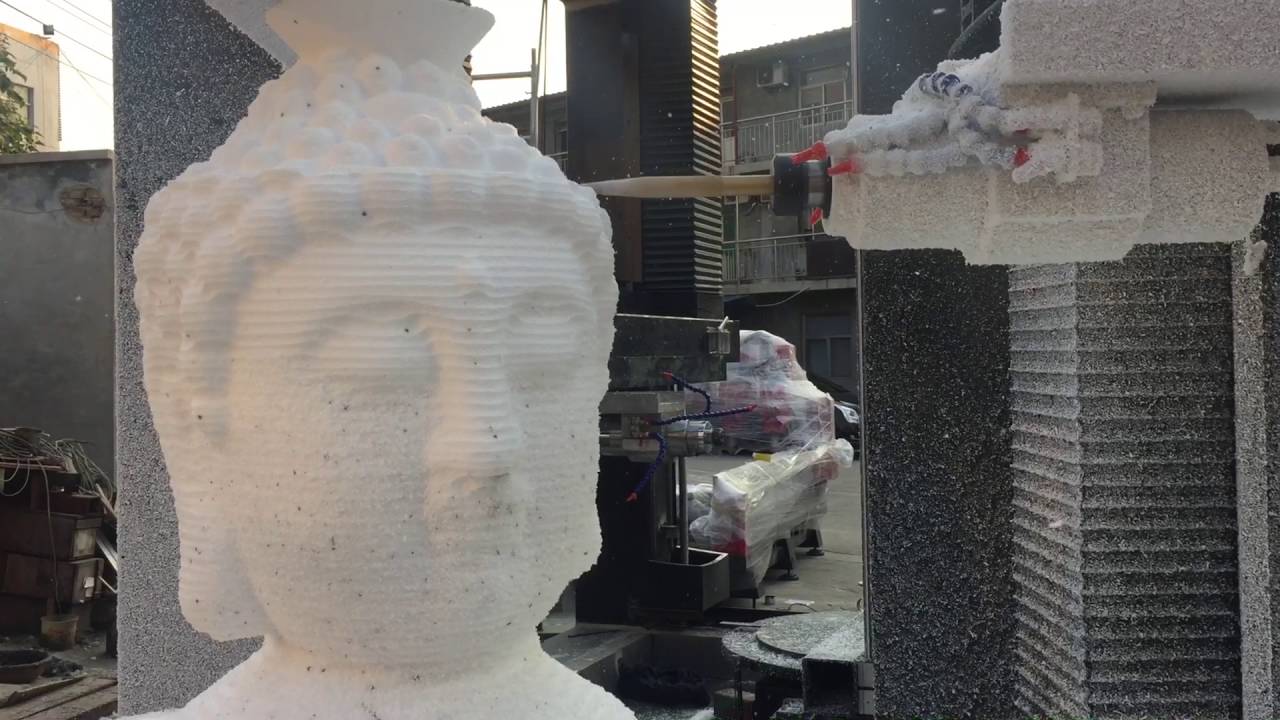

What the 4 Axis CNC stone carving machine can do?
Very satisfied with my big guy. Three months have passed. Stone carving machine is still working well!
