Water chiller CW5000 for CO2 laser tube is a refrigeration type industrial water chiller with 800W cooling capacity. It's mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air.
Advantages of Water Chiller CW5000:
1. 800W cooling capacity; use environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.3℃ precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval;RoHS approval;
Applications of Water Chiller CW5000:
CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There is 1 water outlet and an inlet, applicable to cool single laser glass tube.
CW-5000 industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features of Water Chiller CW5000:
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.
CW-5000AG: applied to cool a single 80W CO2 laser tube (emitting rate higher than 60%);
CW-5000AH: applied to cool a single 5KW spindle or welding equipment;
CW-5000AI: applied to cool a single 5W-10W solid-state laser.

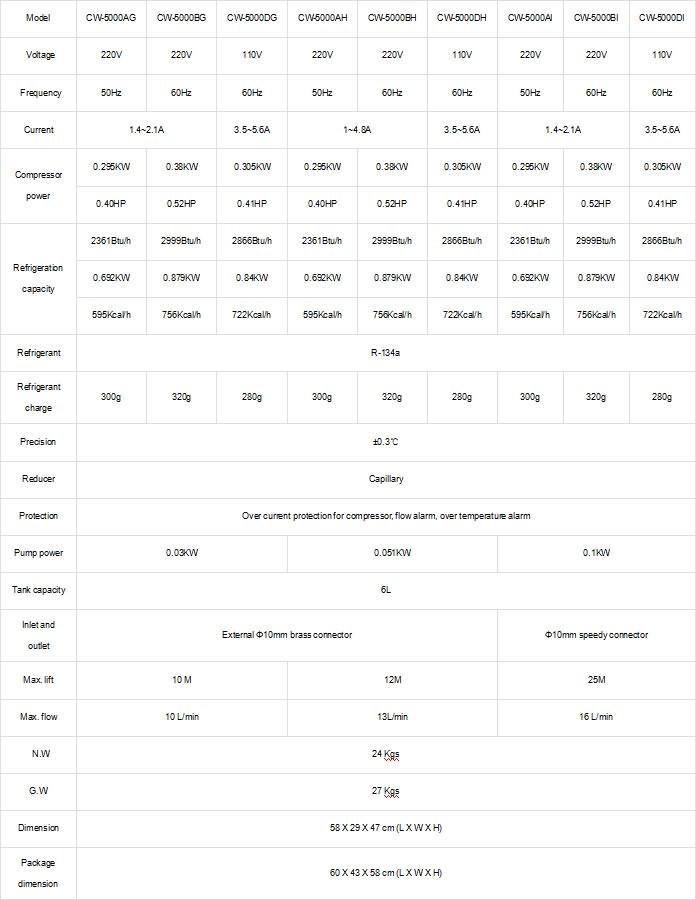

Technical Parameters of Water Chiller CW5000:

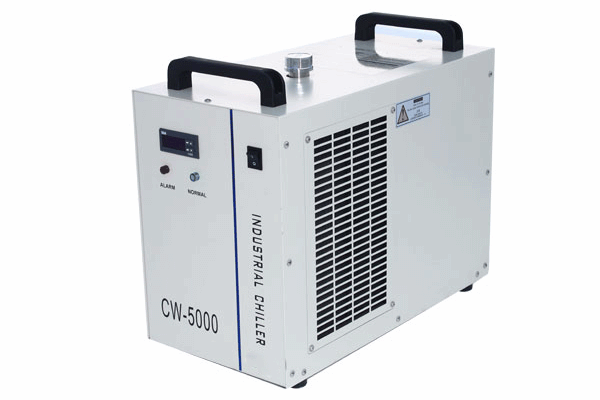

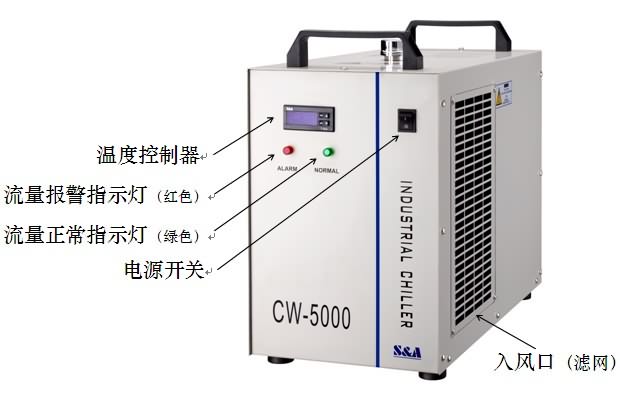

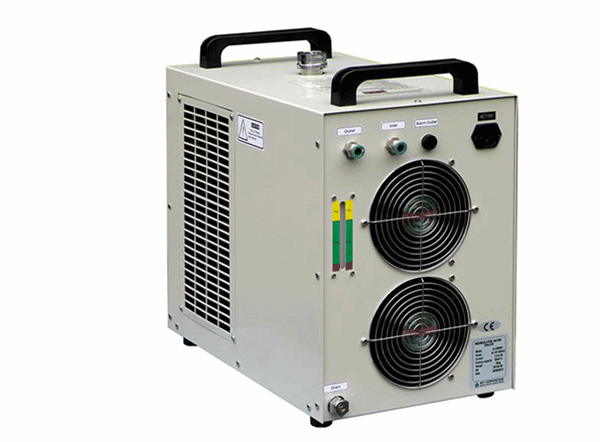

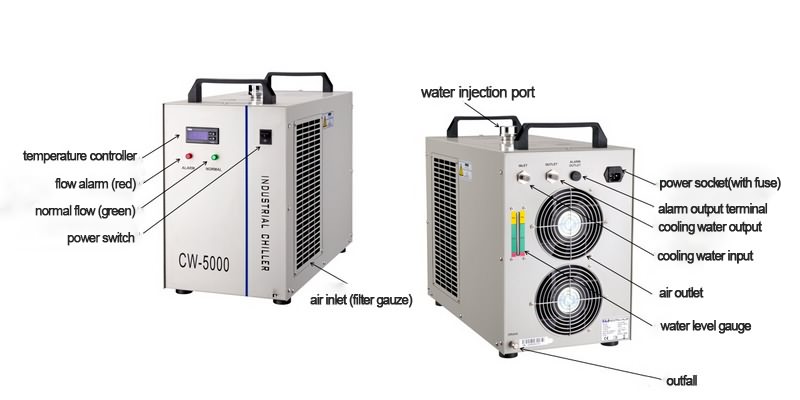

Water Chiller CW5000 Show:
