New Design Automatic Wood Lathe Machine for sale

New Design Automatic Wood Lathe Machine for sale
  • New Design Automatic Wood Lathe Machine for sale

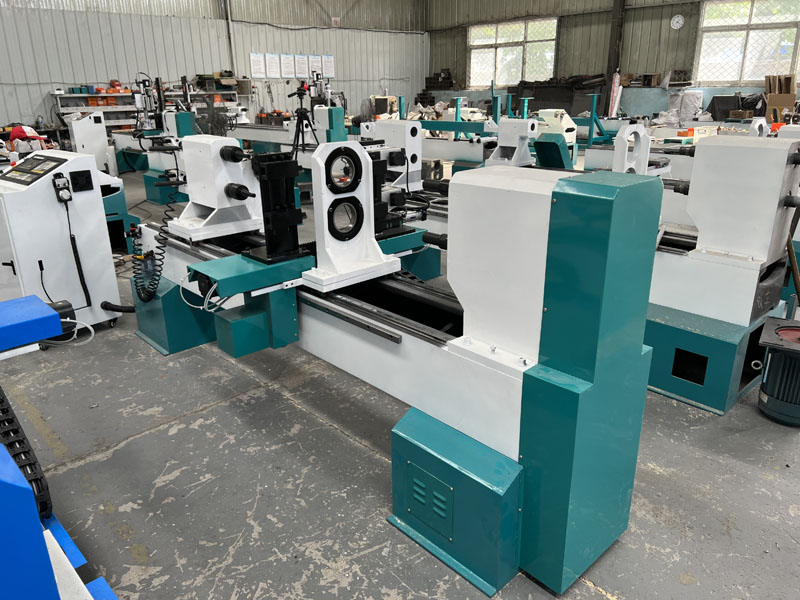

  • The First Picture of New Design Automatic Wood Lathe Machine for sale

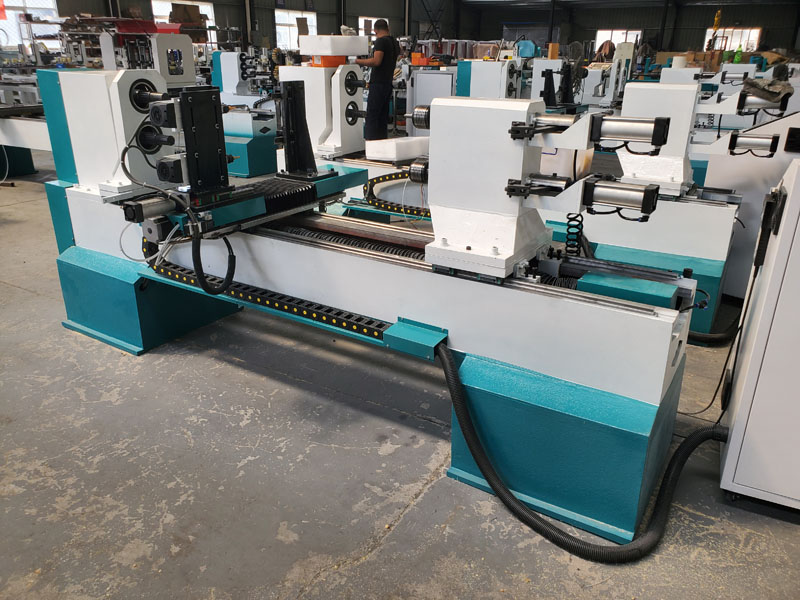

  • The Second Picture of New Design Automatic Wood Lathe Machine for sale

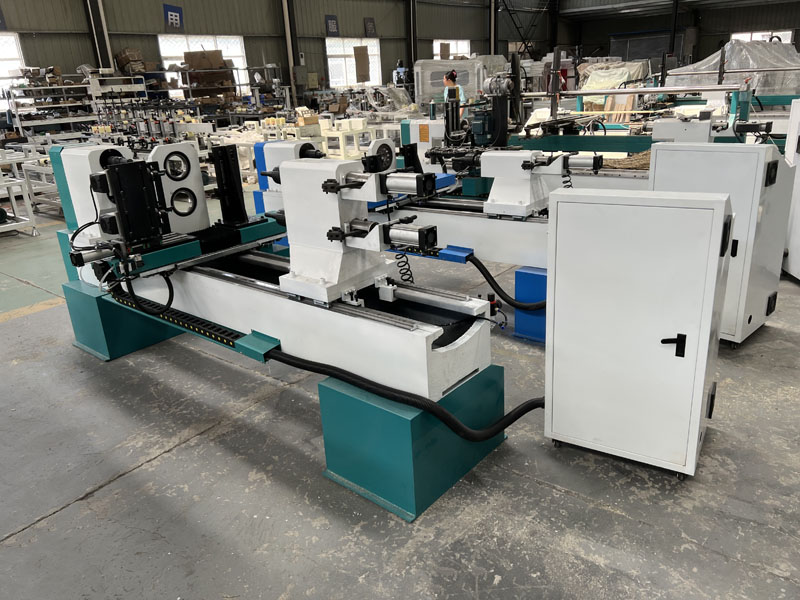

  • The Third Picture of New Design Automatic Wood Lathe Machine for sale
  • The Fourth Picture of New Design Automatic Wood Lathe Machine for sale
Loading...

New Design Automatic Wood Lathe Machine for sale with low price

Inquiries:

301

Model: STL1516-2 Category: CNC wood turning lathe machine
Brand: STYLECNC STYLECNC®
Rating:

4.8

 /5 based on 6 ratings and reviews
Price Range:

6000.00

to

$

7000.00

/ Set according to your configuration
The price will float according to the configurations of New Design Automatic Wood Lathe Machine for sale
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Skype to usSend a request

Automatic Wood Lathe Machine is designed with double axis for turning staircases, stairway balusters, stairway newel posts, table legs, chair legs, bed rails, baseball bats, etc. now the wood lathe for sale with low price.

Product Show

Features of  Wood lathe machine:


1. Whole Machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

2. Professional used for Wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.

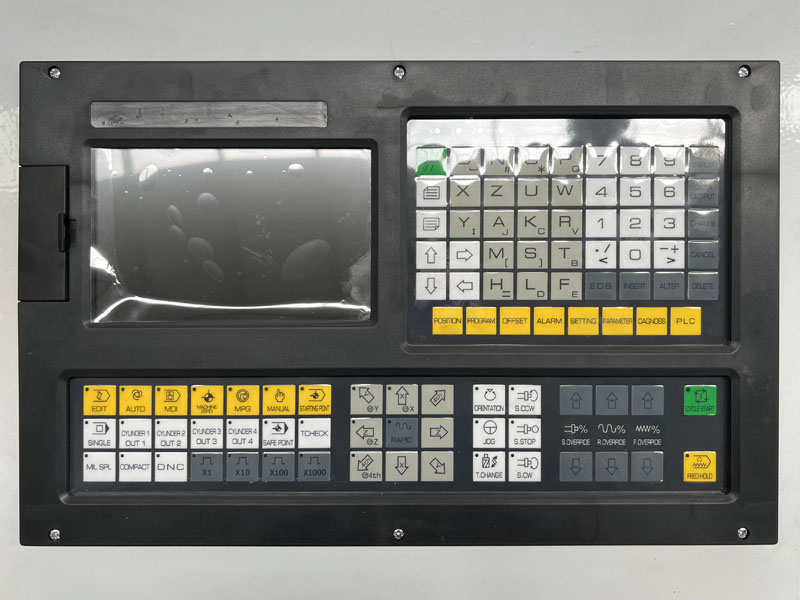

3. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.

4. Adopt Germany ball screw and Taiwan PMI helical square guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.

5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.

6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.

7. One time tool setting to finish the whole work piece.

8. Double axis can double working efficiency.and double side 4 Wood lathe cutter make the wood cutting more smooth and stable.

9. Helical gear transmission way, make higher working speed, and with higher weight load, smooth running, and lower noise.

10. We use inverter adjust rotating speed, can easily control the wood rotating.and DSP control system more easy to align the cutter and operate the machine.


Wood Lathe Machine features

Optional Parts of Wood Lathe machine


1. More rotary axis.

2. Spindle.

3. Different power requirement.

4. Upgrade controller.

5. Servo motor.

6. Bigger working diameter and length, etc.


Wood Lathe Machine parts

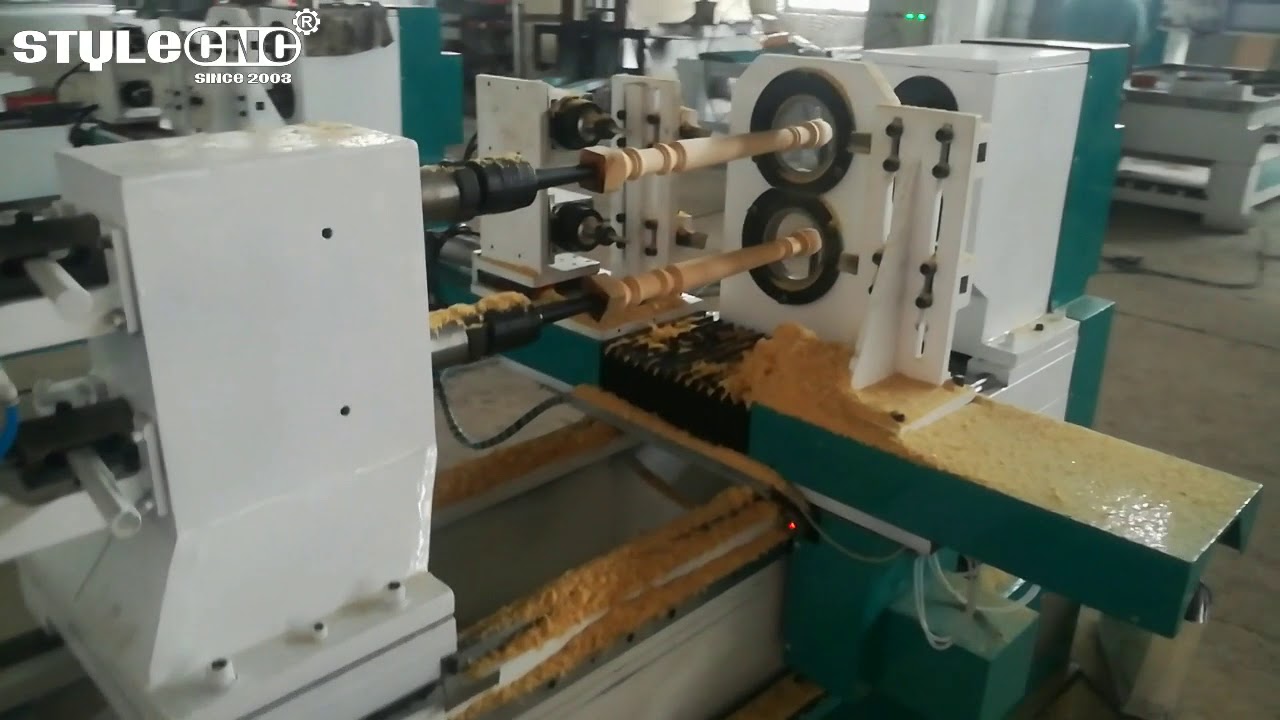

Double Axis Wood Lathe Machine

Servo motor for Wood Lathe Machine

Servo motor intallation for Wood Lathe Machine


Technical Parameters of Wood Lathe Machine:


ItemParameters
ModelSTL1516-2
Max processing length1500mm(can custom 2000/2500/3000mm)
Max turning diameterDouble shaft use max 160mm Single shaft use max 320mm
Air pressure0.6-0.8Mpa
PowersupplyAC 380V 3 phase 50HZ/60HZ(can custom 220V)
Max feed rate200cm/min
min setting unit0.01cm
Transimission typeballscrew for X Z axis,gear for Y axis
GuiderTaiwan Hiwin orbit
Main shaft rotating speed0-3000r/min
Motor power4kw
Spindle motor3.5kw air cooling spindle
Cutter materialSuper hard alloy
Control SystemDSP control system
MotorStepper motor
DriverYako driver
InverterBest inverter
Drawing SoftwareAutoCAD
Hand controller recognise file format*.dxf
Machine size3*1*1.4m
Packing size3.1*1.2*1.6
N.W1500kg
G.W1600kg


Applications of Wood Lathe Machine:

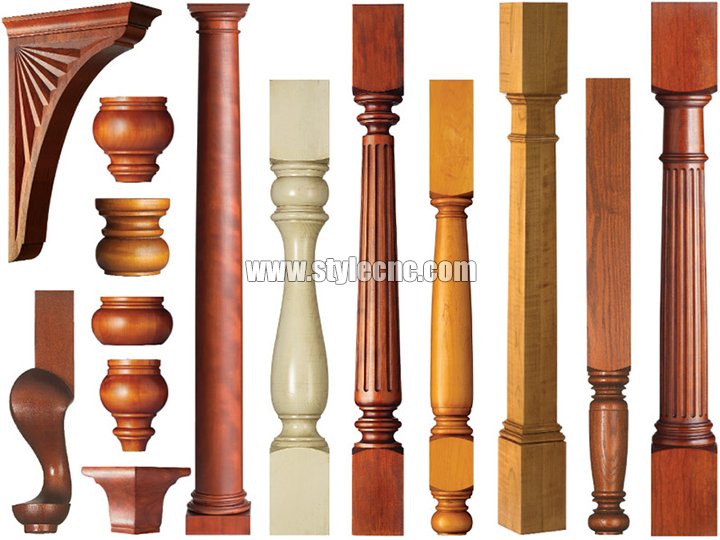

The wood lathe machine is mainly used for staircases, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs, chair legs, chair arm posts, chair stretchers, bed rails, lamp posts, baseball bats, wood broom handle, etc.


Samples of Wood Lathe Machine:

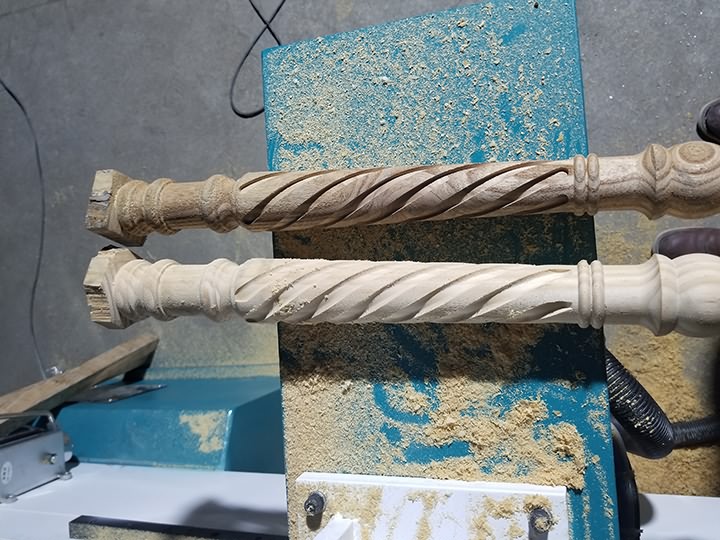

Wood Lathe Machine for wood columns and legs projeacts

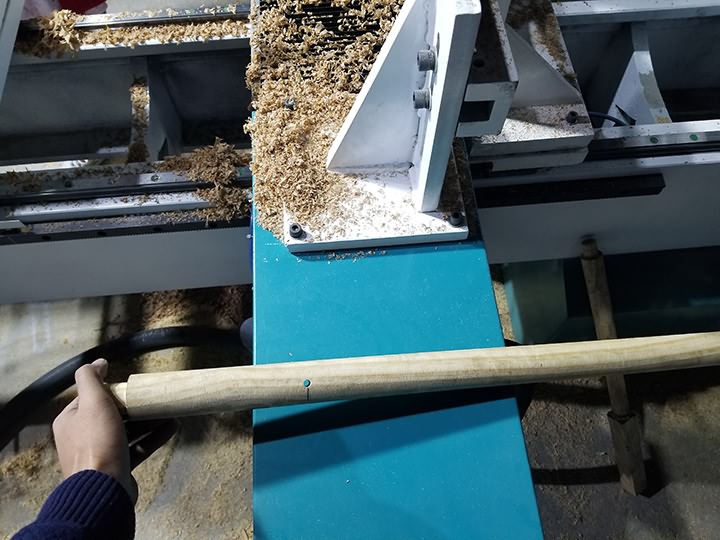

Wood Lathe projects

Wood lathe for baseball bats


Packages of CNC wood lathe Machine:


Inside PackagingParameters
Size300 (L) * 110 (W) * 140 (D)
Weight1.5T
Packaging DetailsThe normal package on machine direcly is the film which avoid water.
Outside PackagingParameters
Size310(L) * 120 (W) * 160 (D)
Weight1.6T
Packaging DetailsThe normal package is wooden box(Size: L*W*H).fumigation-free wooden case
