Economical 4 spindles simple ATC CNC router machine for sale

Economical 4 spindles simple ATC CNC router machine for sale
  • Economical 4 spindles simple ATC CNC router machine for sale
  • The First Picture of Economical 4 spindles simple ATC CNC router machine for sale
  • The Second Picture of Economical 4 spindles simple ATC CNC router machine for sale
  • The Third Picture of Economical 4 spindles simple ATC CNC router machine for sale
  • The Fourth Picture of Economical 4 spindles simple ATC CNC router machine for sale
  • The Fifth Picture of Economical 4 spindles simple ATC CNC router machine for sale
Loading...

4 spindles simple ATC CNC router machine for sale

Inquiries:

279

Model: S1-IV Category: Panel furniture production line
Brand: STYLECNC STYLECNC®
Rating:

4.7

 /5 based on 3 ratings and reviews
Price Range:

9000.00

to

$

11000.00

/ Set according to your configuration
The price will float according to the configurations of Economical 4 spindles simple ATC CNC router machine for sale
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Skype to usSend a request

Economical 4 spindles simple atc CNC router machine maily used for carving wooden door, desk board, cabinet door, etc.it has 4 different spindles.

Video Show
Product Show

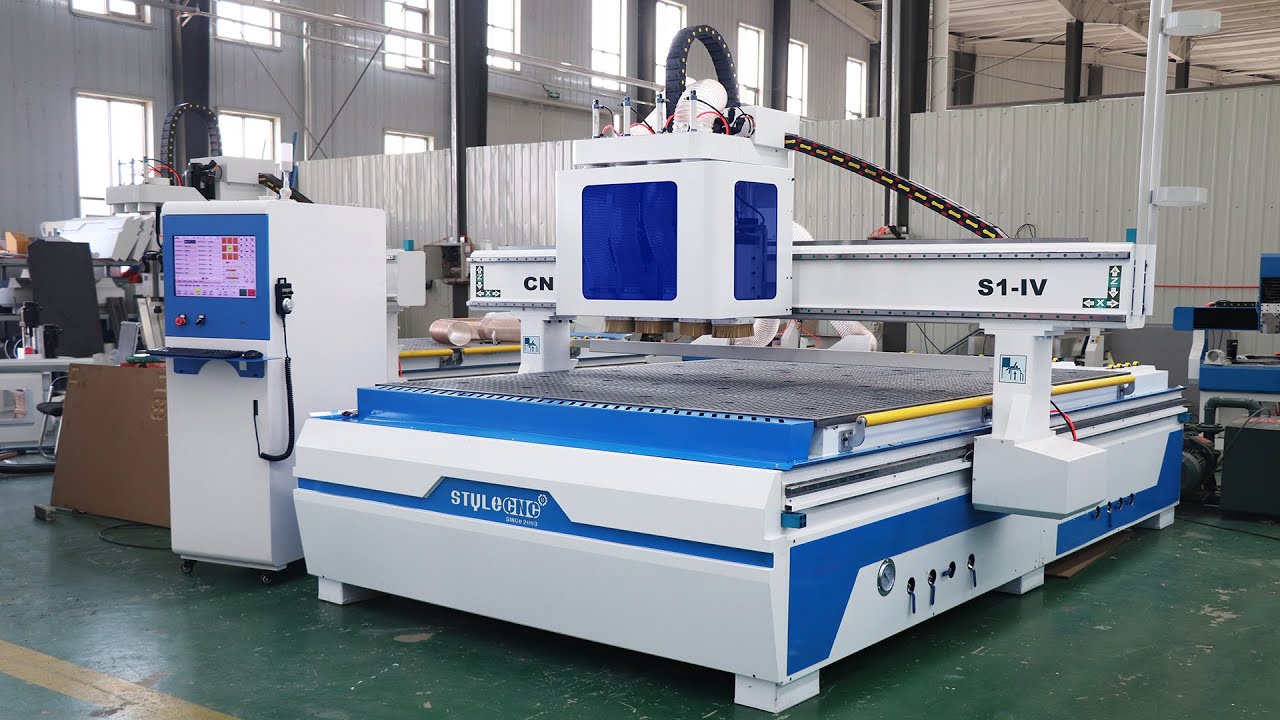

4 spindles simple atc CNC router machine


Features and advantages of 4 spindles simple atc CNC router machine:


1. This style is equipment with 4 kinds of cutters, there is no need to change the cutters when engraving or cutting. The program can work automatically. The advantage is low investment. High profit, low maintenance, easy to operate. It is also very easy for new user to operate.

2. DSP Or MACH3  control system, with handle controller,no need to connect computer.

3. The whole Machine is welded with thick seamless steel structure, the stability is good, not easy to be deformed ,Gross weight 1100kgs, even 5 people can not move it. The machine adopts gantry movement, it can process any kinds of materials freely.

4. Adopt High quality Taiwan imported HIWIN Linear guide has much longer life 10 times of life-time than round guide, two line sliding track, heavy loading, stable working, high precision and long lifetime. Adopt imported ballscrew, high precision.

5. This model is suitable for processing any kinds of materials in bulk.

6. Well compatibility: CAD/CAM designing software e.g.TYPE3/Artcam/Castmate/ Wentai etc.


Application of simple atc CNC router machine:


Furniture: Panel, official furniture, wooden door, cabinet, Plate, tables, chair.

The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

Panel processing:  insulating part, working of plastic; PCB; stone, marble, acrylic, PVC, MDF, organic glass and  the cutting processing of cooper aluminum etc soft metal sheet.


Technical parameters of simple atc CNC router machine:


Model

S1-IV

X,Y,Z Working Area

1300x2500x200mm

Table Size

1340×3640mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum Table

Frame and gantry

frame steel (8mm),aging treatment and  steel structure(12mm)

X, Y Structure

WMH HMRON Helical Rack and Pinion Drive, Hiwin  Linear square rails

Z Structure

Hiwin Linear square rails
 and TBI Ball Screw

Max. Power Consumption

(Without Spindle)  4.5Kw

Max. Rapid Travel Rate

30000mm/min

Max. Working Speed

25000mm/min

Spindle Power

2*4.5kw and 2*3.5kw air cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

Japan 750w Yaskawa servo motor and driver

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

Command Language

G code

Operating System

Original Syntec controller system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER32

X,Y Resolution

<0.03mm

Software Compatibility

UcancameV9 Software

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Packing Size

3300X2000X2000mm

N.W.

1700KG

G.W.

2000KG

Optional Parts

automatic oil-fitting system

Syntec Control System

Vacuum Pump

Rotary System

Mist-cooling System

850WYaskawa/Panasonic Servo Motors






Machine parts of simple atc CNC router machine:

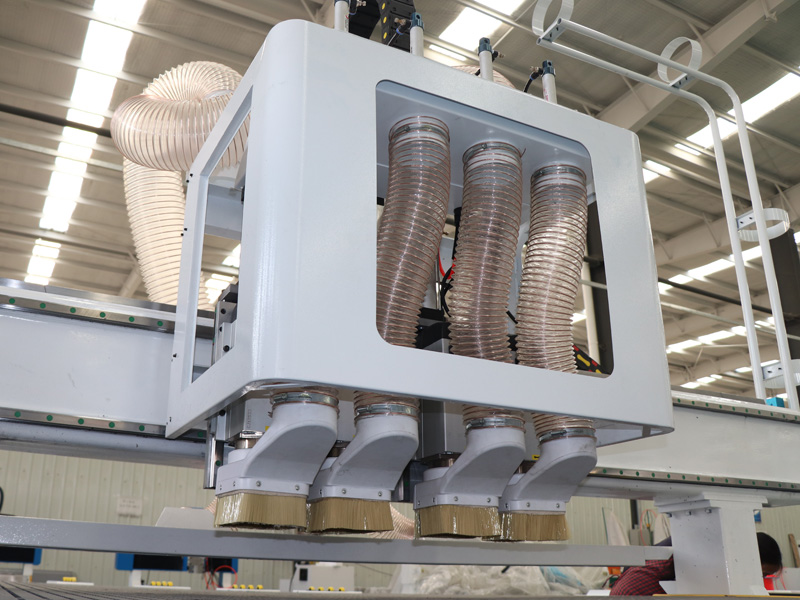

Air cooling spindle.

spindles


Heavy duty thick seamless steel structure machine body.

4 spindles simple atc CNC router machine body


Popular Taiwan Syntec control system.

Syntec control system


WMH HMRON Helical Rack and Pinion Drive and Hiwin  Linear square rails.

guide rails


Fuling inverter.

4 spindles simple atc CNC router machine Fuling inverter


Samples of Economical 4 spindles simple atc CNC router machine:

4 spindles simple atc CNC router machine sample1

4 spindles simple atc CNC router machine sample2
