CO2 RF laser marking machine with America Synrad laser tube 30W

CO2 RF laser marking machine with America Synrad laser tube 30W
  • CO2 RF laser marking machine with America Synrad laser tube 30W
  • The First Picture of CO2 RF laser marking machine with America Synrad laser tube 30W
  • The Second Picture of CO2 RF laser marking machine with America Synrad laser tube 30W
  • The Third Picture of CO2 RF laser marking machine with America Synrad laser tube 30W
  • The Fourth Picture of CO2 RF laser marking machine with America Synrad laser tube 30W
Loading...

CO2 RF laser marking machine 30W

Inquiries:

449

Model: STJ-30C Category: CO2 laser marking machine
Brand: STYLECNC STYLECNC®
Rating:

4.7

 /5 based on 3 ratings and reviews
Price Range:

0.00

to

$

0.00

/ Set according to your configuration
The price will float according to the configurations of CO2 RF laser marking machine with America Synrad laser tube 30W
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Skype to usSend a request

CO2 RF laser marking machine with America Synrad laser tube 30W widely applied in most nonmetal marking industries non metal materials like cloth, fabric, PVC, MDF, wood, bamboo, leather, acrylic, plastic and so on.

Product Show

Advatange of CO2 RF Laser marking machine:


1. Excellent beam quality

Excellent beam quality to ensure that optical CO2 RF Laser marking Machine in a variety of material satisfying marking effects, widely applied in most nonmetal marking industries non metal materials like cloth, fabric, PVC, MDF, leather, acrylic, plastic and etc.


2. Laser long service life

The average working hours can up to 45000 hours.


3. Light path and galvo scanner

The optical system: 10.6µm based on the high precision, vibrating mirror reflection focusing system.

Laser correction: choose red visible laser collimator's systems instructions axis position, indicating light and laser coaxial, in the process to tracing the function of the instructions and timely and accurate registration.

Galvo mirror is set to track operation of the laser executive mechanism, and it mainly consists of high accuracy servo motor, motor driven plate, mirror, F-θ lens and dc supply of power.


4. Computer control system

Laptop with WINDOWS 7 operating system in English


5. Special marking software

Marking software in WINDOWS7 interface, English operating system, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD and so on many kinds of drawing software:time date, bar code, serial number, mark, output in English, graphics, all kinds of bar code, Qr code, etc. Word stock the function is all ready, 200 kinds of fonts, can customize wired font, creating one of the proprietary dictionaries


Features of CO2 RF Laser marking machine:


CO2 RF laser marking machine is a gas laser with CO2 as laser medium and wavelength near 10.6um. When high voltage is added to electrodes, discharging through the cavity will excite CO2 molecules and produce 10.6um laser radiation. The laser can be directed to process materials.


①The machine takes CO2 laser tube as the laser source. By 2D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.

②Using metal CO2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time, and can work for 20,000 hours free of maintenance, then can be recharged by filling CO2 gas, suitable for users requiring batch production and high marking precision. Once invested, whole-life benefited.

③Using fast-speed scanning mirrors, it can be the graph in shortest time finish fine marking process.

④Using the simple structure, abrasion and rusty against component, the system have the most stable performance and moving precision.

⑤It can configure automatic configuration fixture, baiting production line.

⑥It can mark data, serial number & bar code automatically.

⑦Marking clearly and not easy to wear.

⑧Use the computer control, user friendly interface, easy operation.

⑨Accept customizing.

⑩The extensive equipment performance,competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.


America Synrad laser tube 30W


Applicable Material:


CO2 RF laser marking machine is widely used in electronic components,instrument,garment,leather,suitcase and handbag,shoes,button,eye-glasses,medication,food and beverage, cosmetics,packing,electronic equipment,etc.


Applicable Industry:


Lamp holder,Leather,food(eggs),packing carton box, beverage, cloth, electronic, meter, bottle , plastic, communication instruments, package and other industries ,can be combined with streamline for online marking.


Technical parameters of CO2 RF laser marking machine:


Technology index

STJ-30C

Laser parameters

optical Laser

Synrad CO2 RF laser tube

Laser wavelength

10.6µm

Average output power

30W

Whether or not to bring the light isolation

bring

Modulation frequency range

20kHz~80kHz

Galvo parameters

Maximum speed

7000mm/s

Resolution

0.001mm

Repositioning precision

0.003mm

Optical output characteristics



Marking range

range 300 x 300 mm Optional

Minimum line width

0.015mm

Minimum height of characters

0.2mm

Cooling system

Cooling way

Air cooling

System properties

Laser power supply

0.5KW/AC220V/50Hz

Manual working table stroke

Movements itinerary 285 mm (desktop type)

Environmental requirements

0 ~ 35 ° C, 90% or humidity


CO2 RF laser marking machine samples:


medication co2 laser marking machine

glass laser engraving machine samples

wood craft laser engraving machine samples

food and drinks bottle packing laser marking samples

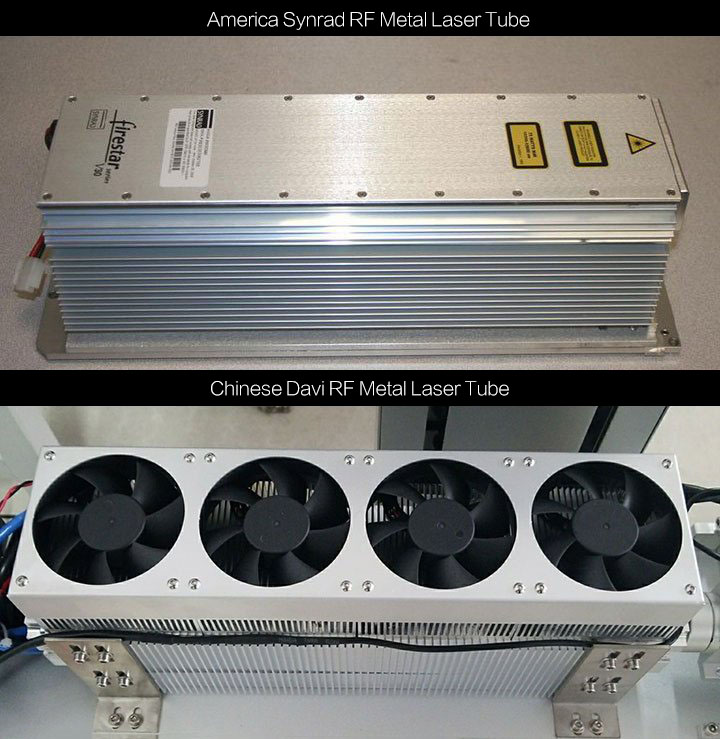

We also have the Chinese glass laser tube CO2 laser marking machine for choose:


co2 laser marking machine laser resource
