3 Axis CNC Machining Center with ATC system for woodworking

3 Axis CNC Machining Center with ATC system for woodworking
  • 3 Axis CNC Machining Center with ATC system for woodworking
  • The First Picture of 3 Axis CNC Machining Center with ATC system for woodworking
  • The Second Picture of 3 Axis CNC Machining Center with ATC system for woodworking
  • The Third Picture of 3 Axis CNC Machining Center with ATC system for woodworking
  • The Fourth Picture of 3 Axis CNC Machining Center with ATC system for woodworking
Loading...

3 Axis ATC CNC Machining Center for woodworking

Inquiries:

432

Model: STM1325D2 Category: CNC wood router
Brand: STYLECNC STYLECNC®
Rating:

4.5

 /5 based on 14 ratings and reviews
Price Range:

20000.00

to

$

26000.00

/ Set according to your configuration
The price will float according to the configurations of 3 Axis CNC Machining Center with ATC system for woodworking
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Skype to usSend a request

3 axis CNC machining center for woodworking with ATC system adopts double disc tool holder including 16pcs different tools, the CNC machining center is especially used for wood furniture production.

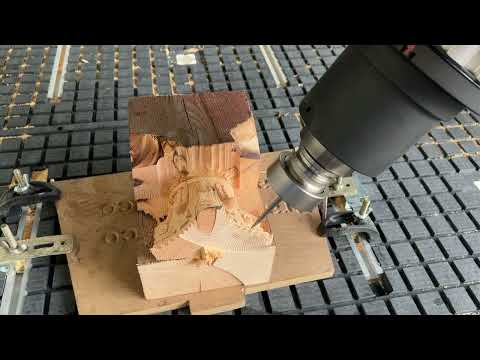

Video Show
Product Show

CNC Machining Center
Features of ATC CNC machining center for woodworking:


1. The whole Machine uses high quality seamless welded steel structure, the assembly contact surface is used scraping process, the whole structure high-temperature aging treatment, upright and support plate, using aluminum cast process that ensures the high stability.

2. Driving rail adopts original Taiwan Hiwin 30mm square lead rail.

3. Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission.

4. Wood working CNC Machining center adopts Italian high-speed HSD 9kw air-cooled spindle motor, spindle cooling fully guaranteed, can work long time.

5. It use imported Japanese Yaskawa Servo drive system, torque, high precision, fast and stable performance.

6. Use Taiwan Syntec controlling system, good compatibility, compatible with type3 /Artcam /Castmate /Artcut /CAD/CAM and other design softwares.

It can control the completion of multi-dimensional 3D processing, and can do fast, smooth three-dimensional processing , carving and cutting.

7. wood working cnc machining center table is vacuum adsorption countertops which is an international leader technic, made of high strength rigid plastic, high-absorption edge and strong adsorption of different sizes of materials, density, non-deformation.

8. Auto-oiling lubrication system, easy to operate, greatly improve the life of the various components of the machine.


Details of ATC CNC machining center for woodworking:


ATC CNC Machining Center

CNC Machining Center for woodworking

ATC CNC Machining Center for woodworking

Automatic Tool Changer

Syntec CNC Controller


Applications of ATC CNC machining center for woodworking:


3 axis CNC machining center with ATC system is widely applied in industrial board cutting, mould manufacturing & processing, wooden products processing, building decorating & furnishing, stone, glass, copper, aluminum and advertising products processing, etc.


Woodworking Industry:

Ideally suitable for furniture decoration, musical instruments, wooden crafts, solid wood furniture, MDF paint-free door, wood composite door, cabinet, kitchen doors, windows, night table, etc.


Decoration industry:

Art model, Wall Art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate, electrical cabinets panels, sports equipment, and other wooden industrial products.


Technical parameters of ATC CNC machining center for woodworking:


Description

Parameter

X,Y Working Area

1300*2500*300mm

Z Working Area

300mm

Resolution

0.01mm

Lathe Structure

Seamless welded steel structure, better than cast iron one

X,Y Structure

Rack and pinion, gear drive,

Taiwan Hiwin H30 square guide rails

Z Structure

Z axis Taiwan TBI ball screw,

Taiwan Hiwin H30 square guide rails

Max. Idling Speed

60m/min

Spindle

HSD 9.0kw air-cooling spindle

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC380V/50Hz

Motor and driver

Yaskawa 850W from Japan

Working Mode

Servo

Command

G code (HPGL,U00,mmg,plt)

Operating System

SYNTEC control system

Diameter of Cutter

φ3.175-φ12.7

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

By suction or clamp

Tool Magazine

Disc-style auto-tool changer system with 16 pieces of tools

Net Weight

3500KG


Projects of ATC CNC machining center for woodworking:


CNC Machining Center Projects

CNC machining center for woodworking projects

CNC machining center project

ATC CNC machining center projects

CNC Machining Center application
