Small 5 axis CNC machining center

Small 5 axis CNC machining center
  • Small 5 axis CNC machining center
  • The First Picture of Small 5 axis CNC machining center
  • The Second Picture of Small 5 axis CNC machining center
  • The Third Picture of Small 5 axis CNC machining center
Loading...

5 axis CNC machining center for sale

Inquiries:

576

Model: STM1212E-5 axis Category: 5 axis CNC machine
Brand: STYLECNC STYLECNC®
Rating:

4.8

 /5 based on 4 ratings and reviews
Price Range:

80000.00

to

$

90000.00

/ Set according to your configuration
The price will float according to the configurations of Small 5 axis CNC machining center
Supply Ability: 10 Sets / Month In stock! From - Jinan Style Machinery Co.,Ltd
Port From: Qingdao, Shanghai, Tianjin, Beijing, Guangzhou Payment Terms: L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union, Alibaba Skype to usSend a request

Small 5 axis cnc machining center is an entry-level five-axis machining center with HSD 5 axis spindle and Taiwan Syntec controller, it is widely used on process aluminum alloy, all kinds of long strip homeomorphism chair back ,bag suitcases homeomorphism cutting ,homeomorphism square tube cutting, etc.

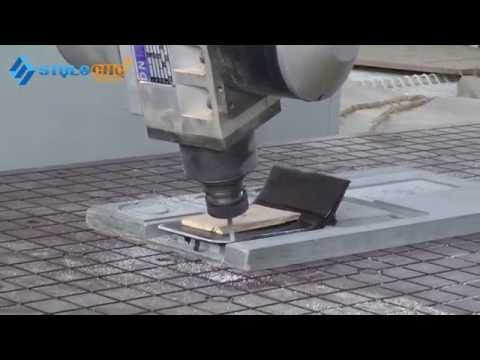

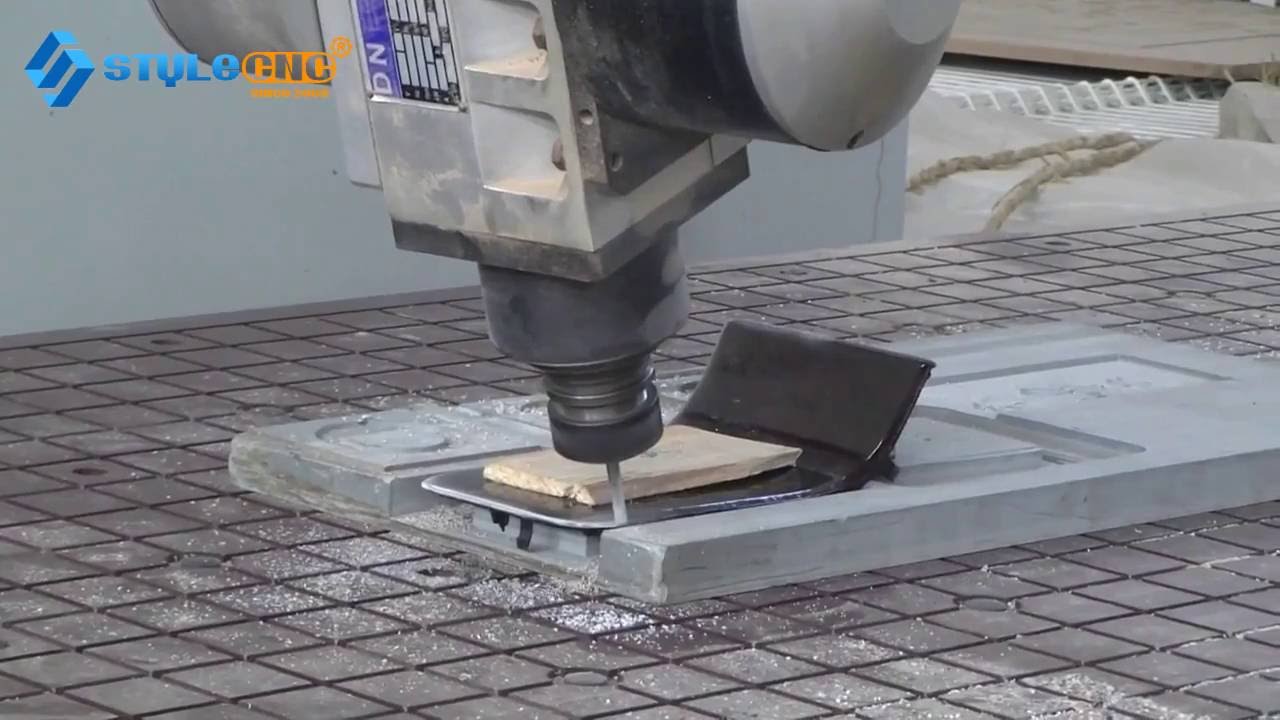

Video Show
Product Show

Applications of small 5 axis CNC machining center:


Small 5 axis CNC Machining center is widely used on process aluminum alloy, all kinds of long strip homeomorphism chair back ,bag suitcases homeomorphism cutting ,homeomorphism square tube cutting, etc.


1. Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.

2. 3D processing: fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.

3. Furniture industry: deally suitable for processing cabinet door, wooden door, solid wood furniture, stereo box, computer desk, game cabinets,etc.

4. Decoration industry: acrylic, PVC, density board, stone, organic glass, soft metals like aluminum and copper etc.


Features of small 5 axis CNC machining center:


small 5 axis CNC machining center design


1. Adopt Taiwan Syntec five axis synchronizing cnc control system, with Italy HSD imported high power 5 axis head, easily implement stereoscopic five-side processing one time.

2. Machine body is heavy duty thicken aging treatment and casting iron table, transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high performance reducer.

3. High accuracy ball screw from Germany.

4. 5 axis cnc machining center all use Schneider Electronic Spare parts

5. Drum style auto tool change with 8 positions for optional.

6. Many optional configuration and OEM service available. According to your requirement, different configurations will be offered. OEM service is available for you.

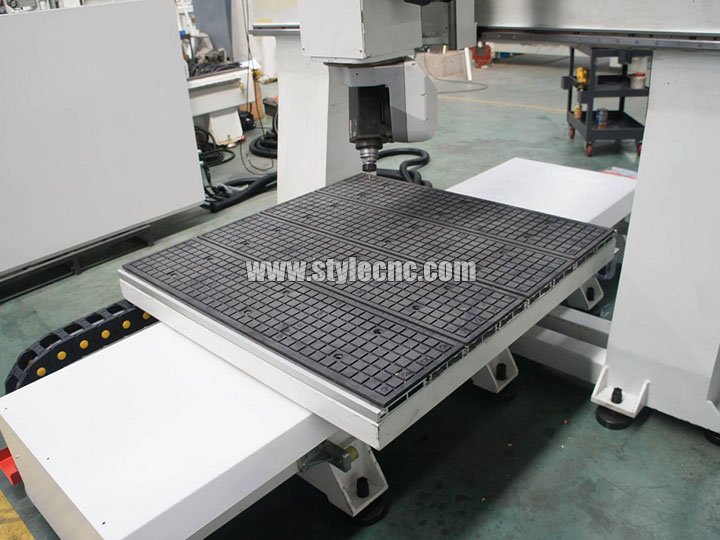

It adopt table moving instead of gantry moving to guarantee the high accuracy:


5 axis cnc machining center table moving


Italy HSD imported high power 5 axis head:


Italy HSD imported high power 5 axis head


The top-quality machine parts,such as Schenider electronic parts,Yaskawa servo motors,Taiwan Delta inveter,Japan shipmo reducer:


5 axis cnc machining center top quality parts


Taiwan Syntec control system:


Taiwan Syntec control system for 5 axis cnc router


Technical parameters of small 5 axis CNC machining center:


Model

STM1212E-5 axis

STM1224E-5 axis

X/Y/Z Axis Travelling size

1720*1820*750mm

1720*3040*750mm

A/C Axis

A:+40°/-100°,C:+400°/-40°

Working size

1220*1220*500mm

1220*2440*500mm

Table size

1230*1220mm

1230*2440mm

Transmission

X/ Z ball screw drive,Y helical rack and pinion drive

Table structure

T-slot or vacuum

Spindle power

7.0 KW HSD

Spindle speed

18000r/min

Travelling speed

60mm/min

Working speed

20m/min

Tool magazine

Carousel

Tool slots

8

Driving system

Yaskawa servo motor 1.3KW

Voltage

AC380/3PH/50HZ

Controller

Syntec (OSAI for choose)


Small 5 axis CNC machining center samples:


5 Axis CNC machining center for CNC Mold making

5 axis CNC machining center applications

5 Axis CNC Machining Center for Woodworking

5 axis CNC machining center samples


It can choose doule table, double the productive efficiency by allowing loading and unloading operations on one station without interrupting  the work cycle.


5 axis cnc machining center with double table
