Large Format 5 axis CNC Router Machine is designed for 3D CNC Milling and Carving in mould making, car body making, boat building/marine, pattern making industry.

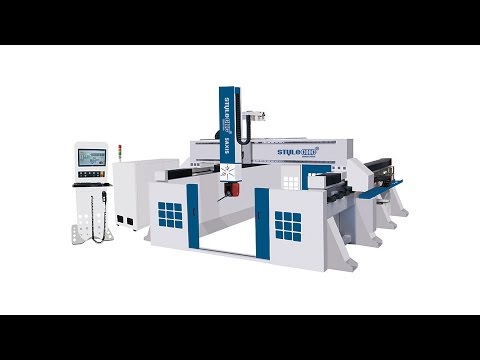

Video Show
Product Show

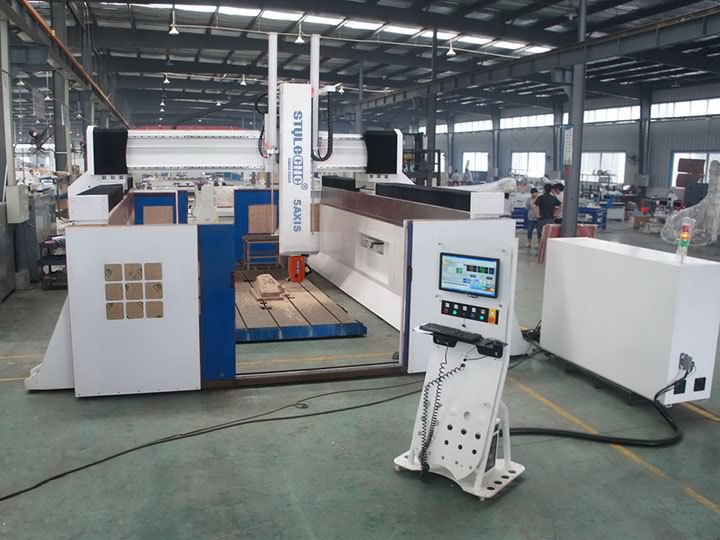

5 Axis CNC Router Machine

STM2040 5 axis CNC router machine is a large format CNC machining center, The CNC machine was designed for high precision machining and adopts a massive oversized steel frame, the rigidity of the Machine is paramount to achieving high quality parts and eliminating any vibration at the tool tip. it is especially  used for the mould making industry with a working area of 2000 x 4000 x 1100mm. it allows the machining of extremely large parts in full 5 axis.


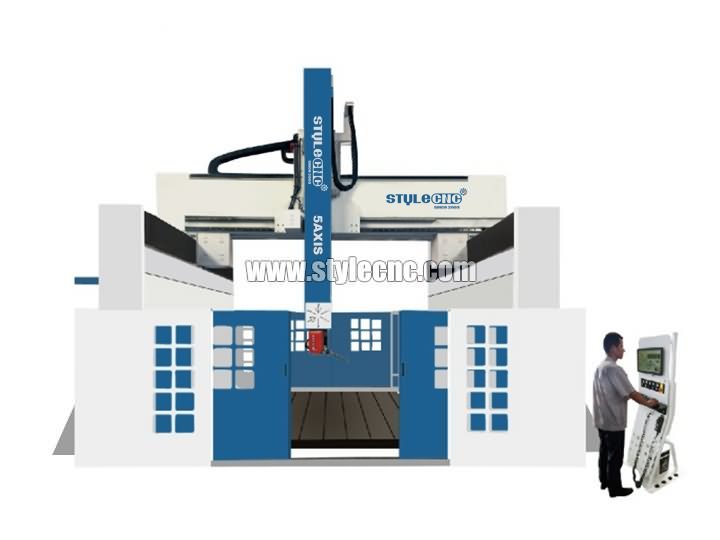

Large Format 5 Axis CNC Router


5 axis CNC router Machine applications:


STM2040 5 axis series is a powerful high performance production machine for large format 5 axis CNC machining. It comes as standard with a 12kw HSD spindle, Yaskawa digital closed servo transmission, helical rack and pinion with a moving gantry design. It also has the option of a precision machined cast steel T-Slot work table for accurate fixturing of large moulds. The 5 axis CNC router machine is used extensively in the mould making, boat building/marine and pattern making industry.


1. Mold industries: sculpture various large non-metallic mold can be particularly suitable for car lost foam pattern, wooden ship model, wooden model aviation and other wood mould.

2. Non-ferrous metals: materials such as aluminum, copper, alloys and other ligh non-ferrous metal processing.


5 Axis CNC Router Machine standard Configurations:


1. We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when machining.

2. Z axis can be heightened to 900mm, so it is suitable for processing large-scale and super-thick material.

3. The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.

4. The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.

5.Travelling area for STM2040-5axis: 3000 x 4800 x 1500mm.

6. Extra heavy duty welded steel frame and gantry for maximum straightness and rigidity.

7. 12Kw HSD liquid cooled spindle.

8. 8 position linear ATC with HSK63F precision tool clamping.

9. THK lubricated for life linear rails and guide blocks.

10. Yaskawa digital servo drivers and motors for high power, accuracy and speed.

11. Osai – PC interfaced Numerical Control System.

12. Automatic machine lubrication system (option).

13. MPG XYZAC Hand Wheel for easy origin and work piece setting.

14. Tool setting device.

15. One starter set woodworking tools.

16. 3 x collets, choice from 1-20mm (imperial available if preferred).

17. 1 x HSK 63F Tool Holder included.

18. Inverter: Taiwanese Delta Inverter 0-22000rpm control.

19. German Schneider Electronic Spare parts.

20. Japanese OMRON limit switches.

21. MAXICAM double sheathed, fire retardant and highly flexible towline cable can be bent 300,000 times.

22. Igus cable chain carrying system.

23. Voltage: 3PH 415V 50HZ.


5 Axis CNC Router Machine Processing

5 Axis CNC Router Machine Processing

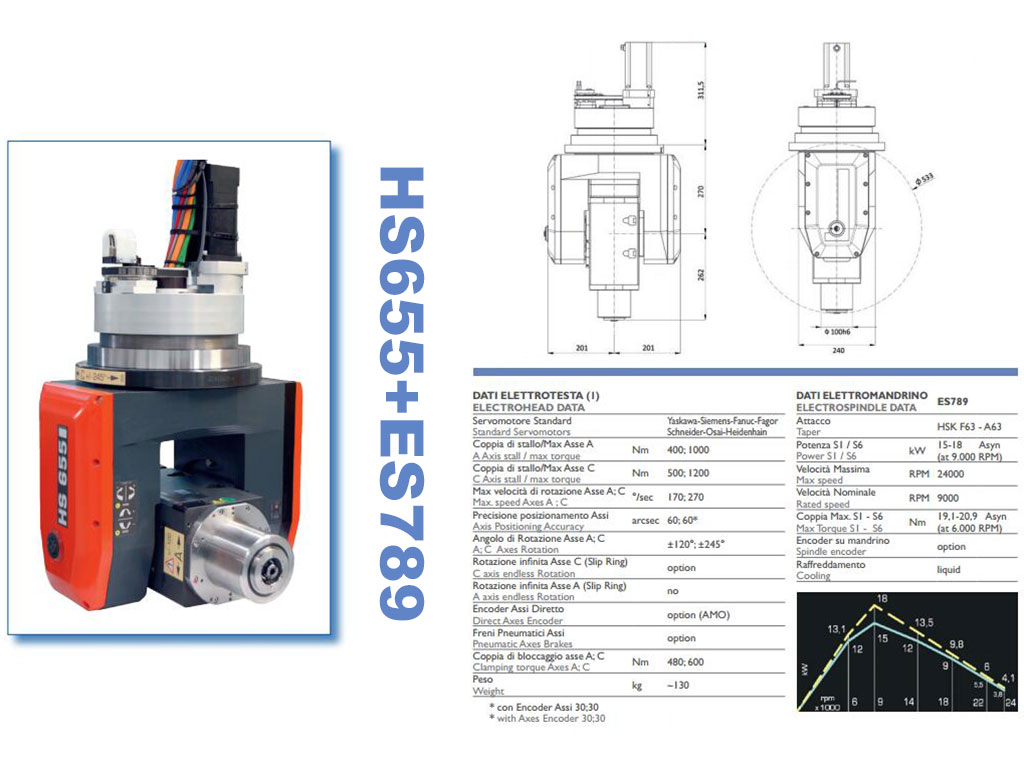

12Kw HSD liquid cooled spindle for 5 Axis CNC Router
HSD liquid cooled spindle for 5 Axis CNC Router

HSD spindle

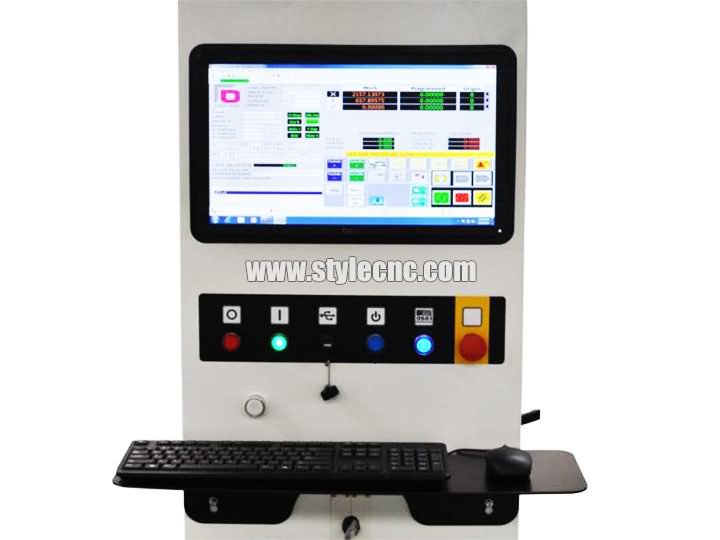

Osai Control System for 5 Axis CNC Router

Osai Control System

Yaskawa digital servo drivers and motors

Yaskawa digital servo drivers and motors

Eletric cabinet for 5 Axis CNC Router

Eletric cabinet

Herion Helical Rack and Pinion for 5 Axis CNC Router

Herion Helical Rack and Pinion


5 Axis CNC Router Machine options:


1. Precision machined cast steel T-Slot work table for accurate fixturing of large moulds.

2. Oil Mist cooling system for cutting non-ferrous metals.

3. Automatic machine lubrication system.

4. Extra tool holders.


5 Axis CNC Router Machine technical parameters:


ItemParameter
ModelSTM2040-5axis
Movement typeMoving gantry
X working area (MM)2000
Y working area (MM)4000
Z working area (MM)1100
C travelling±213°
A travelling±112°
Double pendulum head12KW Liquid cooled HSD
Range of speeds22000 RPM
Servo Motor brandYASKAWA
Table size (MM)2000 x 4000
Product fixed formOptional Cast Steel Work table with T-Slots
Tool magazineLinear tool rack (8 positions)
Control systemOSAI
Machine size7000 x 6300 x 4600mm
Total weight22000Kg
Total Power(kw)24KW
VoltageAC415V/50HZ
Data TransmissionRJ45 – USB
File exchangeG code
Maximum speedX Axis40m/min
Y Axis40m/min
Z Axis40m/min
C Axis40m/min
A Axis40m/min
Guarantee time12 months
Option items:250m3/hr vacuum pump
Alphacam or Delcam software


5 Axis CNC Router Machine projects:


5 Axis CNC Router machine for mould making projects

5 Axis CNC Router Machine Projects

5 Axis CNC Router Projects

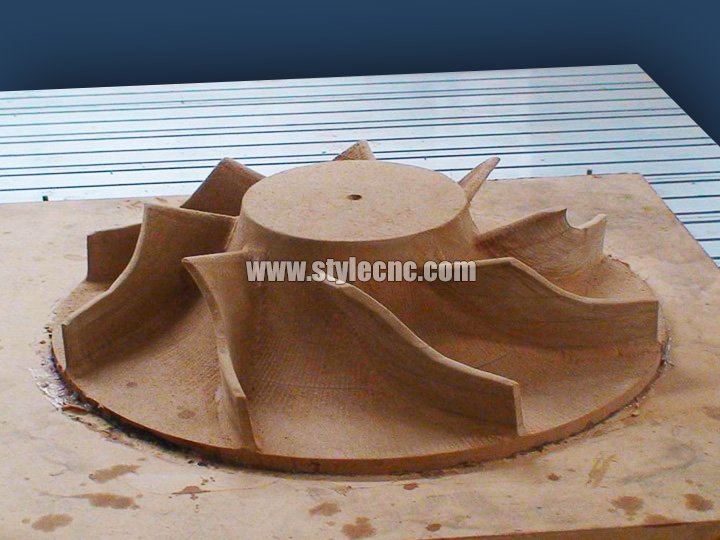

5 Axis CNC Router Application
